Specifications
Place of Origin :
China
Brand Name :
XCAREPAIRKING
Certification :
CE
Model Number :
XSA3500
MOQ :
3 sets
Price :
$3050-$3500
Packaging Details :
wood box and carton
Delivery Time :
15-35 days against payment
Payment Terms :
T/T, Western Union, L/C, MoneyGram, Cash
Supply Ability :
600 sets per month
Lifting Capacity :
3500kg+2500kg
Lifting Height :
1700+450mm
Design :
Scissor
Type :
Four Cylinder Hydraulic Lift
Mini Height :
360mm
Total Length :
4200mm
Total Width :
1750mm
Description

Scissor Wheel Alignment Car Lift 3500kg/2150mm

Hot Sale Scissor Car Lifts for Wheel Alignment Hydraulic Scissor Alignment Lift 3500kg/2150mm

Features

  • Double scissors lift. with the front wheel turnable positions, rear wheel side sliding plate and scissor type secondary lifting, which is suitable for the four-wheel alignment.
  • Meet the requirements of the garage, workshop and tire dealer by adopting the design based n international standard, and elegant in appearance.
  • Ditch installation to save working space.
  • Hydraulic system keeps both platforms at level position.
  • Total travel mechanical safety device with pneumatic control can help the operation easy, safe and reliable.
  • Height limit switch can prevent the machine from damage.
  • All the moving parts use the maintain-free bearings to guarantee the long time performance.

Technical DrawingHot Sale Scissor Car Lifts for Wheel Alignment Hydraulic Scissor Alignment Lift 3500kg/2150mm

Technical Specifications

Name

Lifting Height (mm)

Rated capacity (kg)

Lifting time (s)

Lowering time (s)

Motor (kw)

Size of platform (mm)

Weight (kg)

Synchro (mm)

Levelness (mm)

Small scissor

450

2500

≤30

≥30

2.2

1500*600

1720

≤5

≤5

Big scissor

1700

3500

≤60

≥30

4200*600
Total Length 4500mm
Total Width 1950mm

Motor power 2.2kw, 2800r/min
Power supply 1phase/3phase, 220v/380v, 50Hz/60Hz
Working Noise

≤80dB (A)
Working pressure for hydraulic 20 Mpa, flow rate 5-6L/min
Working pressure for pneumatic 5-8 kg/cm2

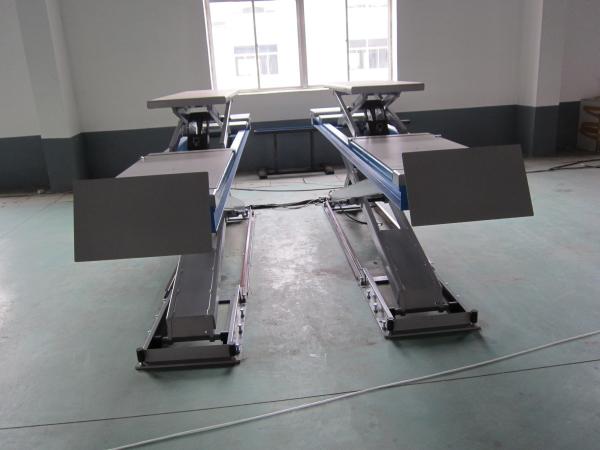

Detailed Pictures

Hot Sale Scissor Car Lifts for Wheel Alignment Hydraulic Scissor Alignment Lift 3500kg/2150mm

Hot Sale Scissor Car Lifts for Wheel Alignment Hydraulic Scissor Alignment Lift 3500kg/2150mm

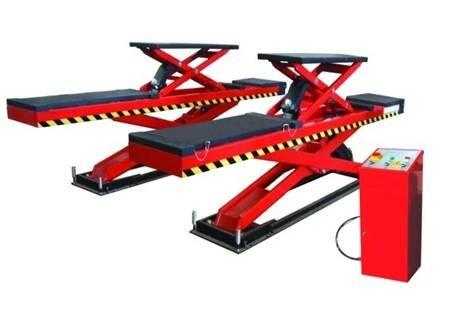

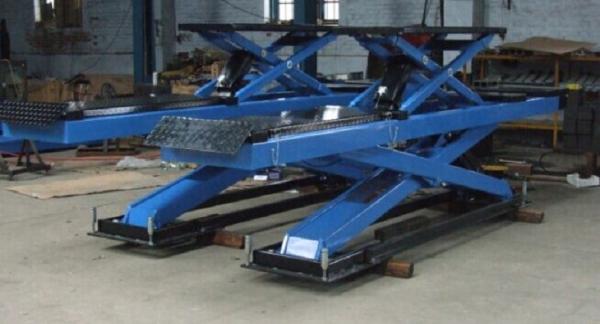

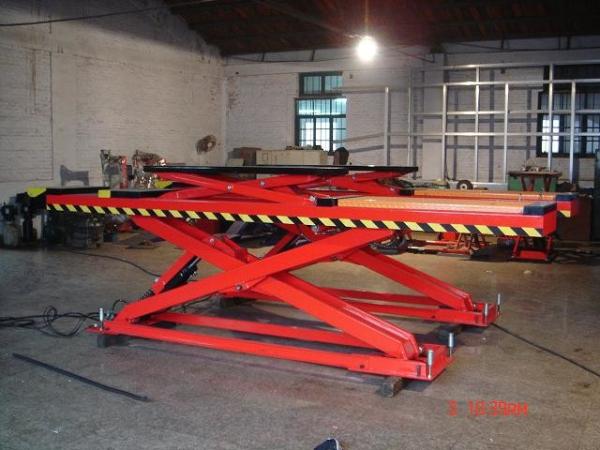

More Models for option

Hot Sale Scissor Car Lifts for Wheel Alignment Hydraulic Scissor Alignment Lift 3500kg/2150mm
