Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift
Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift
Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift
Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift
Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift
Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift
Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift
Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift
Specifications
Brand Name :
XCAREPAIRKING
Model Number :
XT3500A
Certification :
CE, CCC
Place of Origin :
China
MOQ :
3 sets
Price :
$4000- $4800
Payment Terms :
Western Union, T/T, L/C, MoneyGram, Cash
Supply Ability :
80 sets per month
Delivery Time :
20-35 days
Packaging Details :
Standard Export Package
Design :
two post
Type :
double Cylinder Hydraulic Lift
Material :
alloy steel
Warranty :
1 year
Installation :
under ground
Description

3.5T Two Post In Ground Hydraulic Car Lift 1850mm

Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift

Features

  • The guiding barrel and piston of lifting cylinder use the high-quality alloy steel as the material with hard chromium coated, so it is quite durable.
  • The seal of cylinder is Parker, which is excellent in sealing property and long service life.
  • Pipeline explosion valve is equipped inside the cylinder, which can ensure the security when there are uncommon conditions on oil pressure pipeline.
  • The lifting columns of two post and multi post lifts are rigidly connected with synchronous beam(separated type), so it is excellent in synchronous performance and steady.
  • Guiding pipes screwed on the chromed traverse guarantee synchronized movement and avoid rotation of the run ways
  • Equipped with mechanical pneumatic locks, it can stop in any position automatically to ensure safety.
  • It is wisely used in check-in,repair&maintenance,body repair and car washing.

Technical Parameters

Lifting Capacity 3500KG
Load Sharing max. 6:4 in or against drive-on direction
Max.Lifting Height 1850mm
Raising/Lowering time 40-60sec
Main Unit Length 1700mm
Main Unit width 415mm
Main Unit height 2514mm
N.W. 1540KG
The pressure of the air source 0.6-0.8Mpa
Output of oil pump 13.3Ml/round
Motor Speed 2850 rounds/min
Set pressure of the overflow valve 10MPa
Solenoid valve pressure AC220 V /50 Hz
Power 2.2kw
Supply Votage AC220/380V/50Hz; AC230/400V/50Hz
Sound level (measured at control console) ≤75 dBA

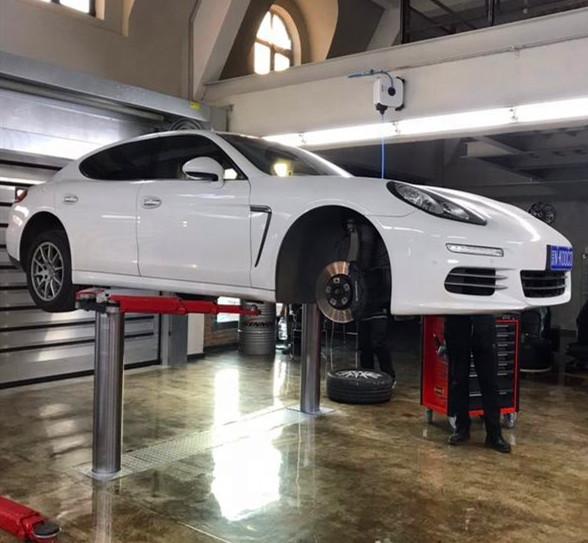

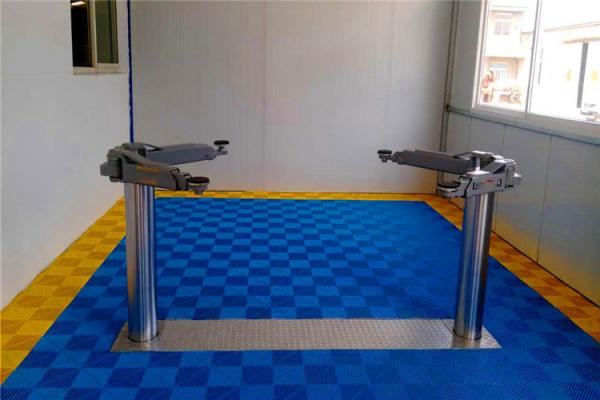

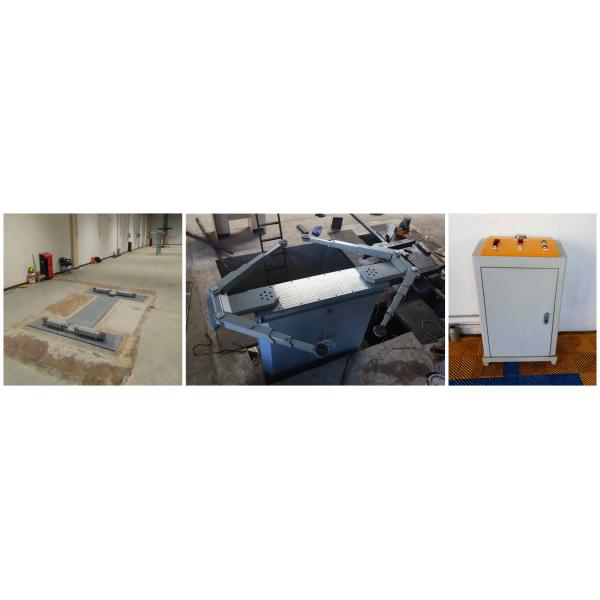

Detailed Pictures

Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift

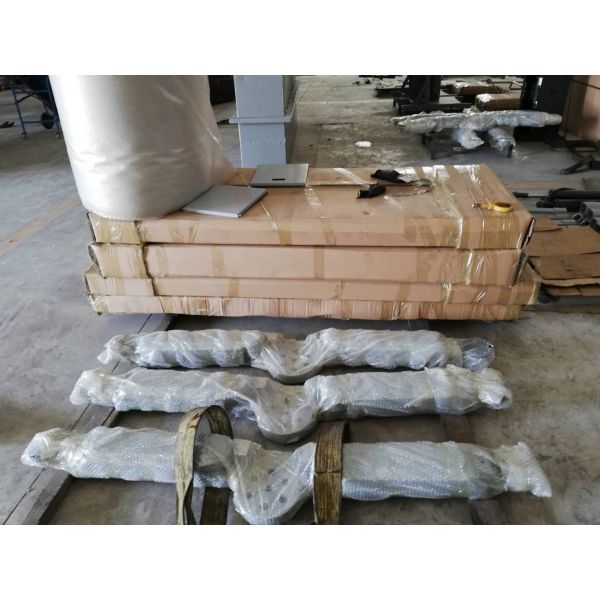

Packaging

Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift

More Models for option

Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift

Two Post In Ground Car Lifts Car Washing and Repairing Lift 3500kg /1850mm 2 Post Hydraulic Under Ground Lift
