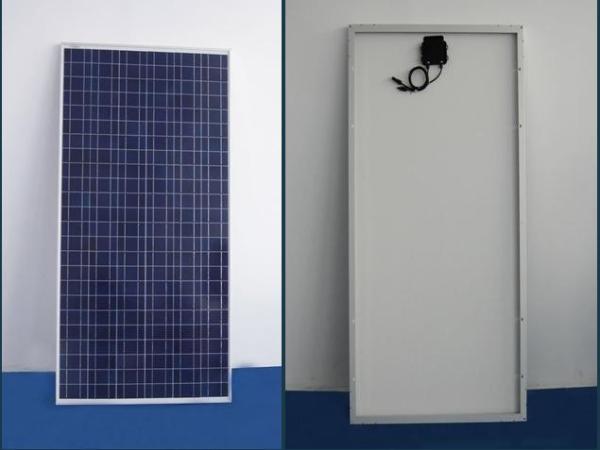

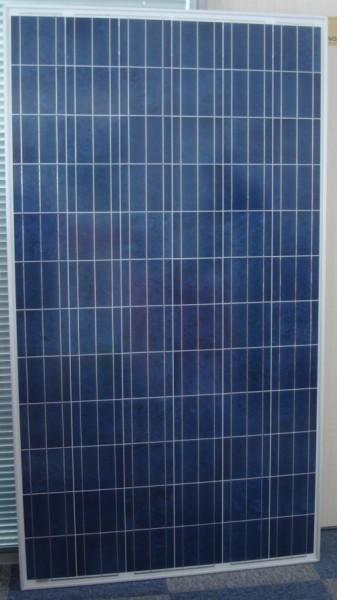

230watt polycrystalline solar panel for solar home power system
230watt polycrystalline solar panel for solar home power system
230watt polycrystalline solar panel for solar home power system
230watt polycrystalline solar panel for solar home power system
Specifications
Place of Origin :
China
Brand Name :
XUECHENG
Certification :
CE, UL,3C, RoHS, TUV
Model Number :
XC230P-24
Power :
230w
Size :
1547*983*35mm
MOQ :
26 pieces
Price :
$0.496-$0.562 per watt
Packaging Details :
standard cartons in pallets for export use
Delivery Time :
15-30 days
Payment Terms :
T/T, L/C (Paypal, West Union if sample order)
Supply Ability :
10000,000 watt per month
Description

230watt polycrystalline solar panel for solar home power system

Features

-Nominal 24V DC for standard output.

-High efficiency.

-Outstanding low-light performance.

-High transmission tempered glass.

-Rugged design to withstands high wind pressure and snow load, easy installation.

-Aesthetic appearance.

-Design to meet unique demand of customer.

-25 year module output warranty

Electrical Characteristics

Maximum power at STC(Pmax)

230W

Optimum operating voltage(Vmp)

34.4V

Optimum operating current(Imp)

6.69A

Open-circuit voltage(Voc)

43.2V

Short-circuit current(Isc)

7.42A

Short-circuit current temperature coefficient

(0.065±0.015)%/℃

Open-circuit voltage temperature coefficient

-(80±10)mV/℃

Peak power temperature coefficient

-(0.5±0.05)%/℃

NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)

47±2℃

Operating temperature

-40℃ to 85℃

Maximum system voltage

1000V DC

Power tolerance

±3%

STC: lrradiance 1000W/m2,Module temperature 25℃,AM=1.5

Specifications

Cell

Poly-crystalline silicon solar cells

No. of cell and connection

72(6x12)

Dimension of module

1547*983*35mm

Weight

16kg
