1-2 Core Butterfly Drop FTTX Cable GJYXFCH Self Supporting
1-2 Core Butterfly Drop FTTX Cable GJYXFCH Self Supporting
1-2 Core Butterfly Drop FTTX Cable GJYXFCH Self Supporting
1-2 Core Butterfly Drop FTTX Cable GJYXFCH Self Supporting
Specifications
Brand Name :
customization
Model Number :
GJYXFCH
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30KM/day
Delivery Time :
5-8 work day
Packaging Details :
Regular packaging
Type :
GJYXFCH fiber optic cable/ drop cable
Item :
FTTH FTTB FTTX Network
Fiber count :
1-4 core, 1/2/4core, 1to 12
OEM :
Acceptable
Fiber :
single mode, G657A1/G657A2/G652D, G652D, G657A, multimode
Length :
Customized, 1km or 2km or500m, 1km/2km each roll, 500/1000/2000M/Customized
Sample :
Available
Strength member :
Steel wire, FRP self supporting Steel, FRP or KFRP, FRP/Steel, steel wire/FRP
Description

Indoor Outdoor fiber cable FTTX 1-2 core Self-Supporting fiber optic cable Butterfly Drop Cable GJYXFCH cable

Description

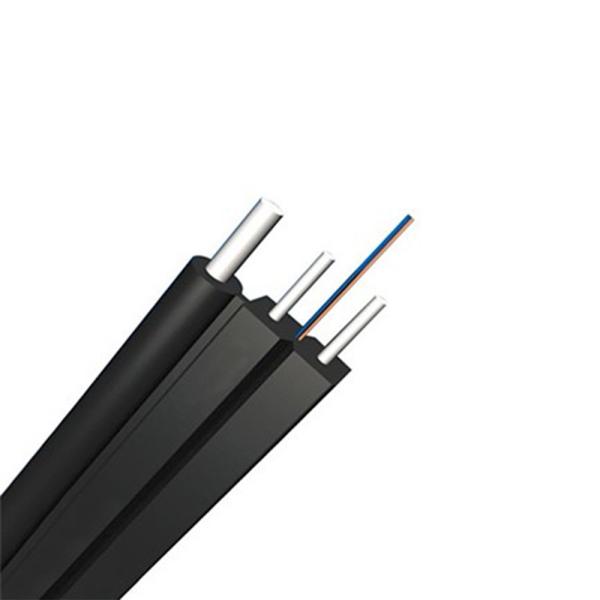

(GJYXFCH) Indoor/Outdoor self-supporting butterfly drop cable , the optical fiber unit is positioned in the centre. two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. a steel wire as the additional strength member is also applied. then the cable is completed with a black or color LSZH sheath.

Mian Features

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

3.Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.

4.Simple structure, light weight and high practicability.

5.Novel flute design, easily strip and splice, simplify the installation and maintenance.

6.Low smoke, zero halogen and flame retardant sheath

Optical cable charateristics

1. Application

Adopted to outdoor level and vertical distribution.

Suitable for connect with communication equipment.
Long distance and local area network communication.

2,Specification
Fiber Allocation Scheme

Fiber number Tube number Fiber per tube Fiber type
1~4 ---- ---- Single mode

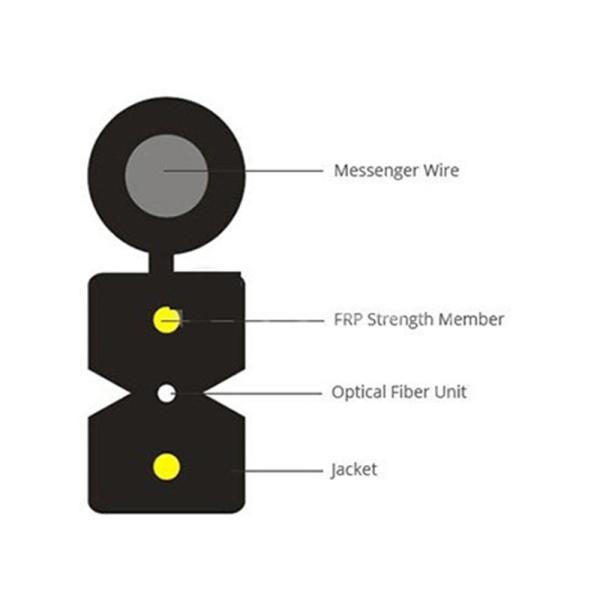

Cable construction details
Item Description
Fiber Counts 1-4 cores

Strength Member

 Material Messenger Wire+ FRP/Steel wire
Dia (mm) 1.2(Messenger Wire)+ 0.5(FRP)

Colored Coating Fiber

 Dia(μm) 250±15
Color Blue,Orange,Greem,Brown

Outer Jacket

 Material LSZH (PVC or Customer required)
Color Black

Cable Mechanical characteristic

Item

Cable Dim (mm)

Weight (kg/km)

 Allowable Tensile Strength(N)

Crush Load (N/100mm)
Long term short term Long term short term
GJYXFCH-1 Xn 5.3×2.0(±0.2) 21 300 600 500 1000
GJYXFCH-2 Xn 5.3×2.0(±0.2) 22 300 600 500 1000
GJYXFCH-4 Xn 5.3×2.0(±0.2) 23 300 600 500 1000
Min Bending Radius(mm) Long term 10 H
Short term 20 H

Temperature characteristic

 Base on the working temperature range: Dwell time 8H / 2cycles. The variation on attenuation:SM≤0.5 dB/km；MM≤0.3 dB/km

Hight temperature and

humidity ability

 ≥500h,85℃/85%RH,No damage to the sheath.
Installation Temperature range -10 ~ +50℃

Operation and transport

temperature

 -20 ~ +60℃

NOTE : Xn indicates the selected fiber models

Requirement for Order

(1)Fiber sort: Single mode:G657
(2)Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3)Jacket material: PVC,LSZH ( can be required).
(4)The fiber and tube color: according to stranded color, can be required.
(5)Length of cable: generally is 2KM, can be required.
(6)Other requirement: can be negotiated.

Fiber optical Characteristic (after cable)

Fiber type

Attenuation

OFL

bandwidth

Effective modal

bandwidth

10 Gb/s Link

Length

Conditions

 1310/1550nm 850/1300nm

850/

1300nm

850nm

850nm
Typical Maximum Typical Maximum
Unit dB/km dB/km dB/km dB/km MHz.km MHz.km m
G657A1 / 0.4/0.3 / / / / /
G657A2 / 0.4/0.3 / / / / /
G657B3 / 0.4/0.3 / / / / /
Note: The above optical characteristics are after cable.

1-2 Core Butterfly Drop FTTX Cable GJYXFCH Self Supporting1-2 Core Butterfly Drop FTTX Cable GJYXFCH Self Supporting1-2 Core Butterfly Drop FTTX Cable GJYXFCH Self Supporting

Cable marking and cable reel marking

Cable marking

The cable sheath shall be marked with white characters at intervals of one meter with following information:
(1)Purchaser’s name
(2)Cable type
(3)Fiber type and counts
(4)Year of manufacture
(5)Length marking

Notice: cable mark is available if requested by customer.

Cable reel

Details given below shall be marked with a weather materials on both outer sides of the reel flange :
(1)Cable type and fiber counts
(2)Length of cable in meters
(3)Year of manufacture

Notice: shipping mark is available if requested by customer.

Packing Informations

(1)Packing material: Wooden drum
(2)Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer

Our advantages

Our certificates
(1) ISO9002
(2) SGS, ROHS

(3) ULE329066
(4) REACH

Our advantages

(1)Professional cable manufacturer
(2)About 10 years experiences in cable industry
(3)MOQ just 1Km
(4)ISO, UL , ROSH,REACH...certifications
(5)Can be customized production of fiber optic cable

FAQ

1. We set up factories in China and Vietnam with 60,000 + SQM area and 2,000 + employees , have big production capacity to guarantee fast delivery and on-time shipment.
2. We have first-class production line and strict quality management system.
3. We have professional team to provide comprehensive one-stop service for you, Technical support is provided anytime by a team of 30 experienced engineers.
Q1: Where is your company and factory?
A1: Our headquarters is in Guangdong Province, China. Branches in HongKong , Shenzhen, Germany, United States and Vietnam, We set up factories in China and Vietnam. You are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 24 years,and We have more than 30+ engineers to provide technical support for you
Q3: Can I get the sample?
A3: Sure, Sample is available any time
Q4: How is quality for your products?
A4: We have a strict and strong quality management system, each production link has professional staff to check the quality. We have obtained ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS certificates.
Q5: Can I print my own logo?
A5: Sure, OEM is available.
