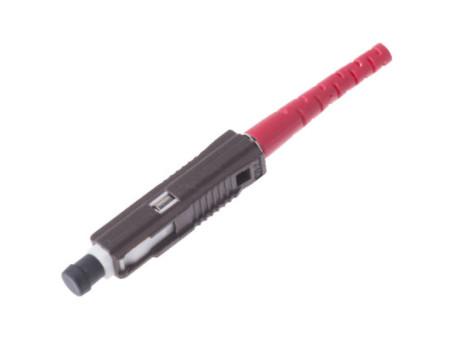

ISO9001 MU Fiber Optic Connector Plastic Or Metal Housing
ISO9001 MU Fiber Optic Connector Plastic Or Metal Housing
ISO9001 MU Fiber Optic Connector Plastic Or Metal Housing
ISO9001 MU Fiber Optic Connector Plastic Or Metal Housing
ISO9001 MU Fiber Optic Connector Plastic Or Metal Housing
ISO9001 MU Fiber Optic Connector Plastic Or Metal Housing
ISO9001 MU Fiber Optic Connector Plastic Or Metal Housing
ISO9001 MU Fiber Optic Connector Plastic Or Metal Housing
Specifications
Brand Name :
XDK
Model Number :
MU Connector
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Connector Type :
MU
Fiber Type :
SM, MM
Color :
according to stranded color (can be required)
Housing Material :
Plastic or Metal
Description

Fiber Optic Connector/MU Connector/ Single Mode/ Multi Mode/ APC/UPC/Customized/ Competitive Price

Introduction

Fiber cable connector, also named fiber optic connector or optical fiber connector, is a hardware installed on fiber cable ends. It provides cable attachment to a transmitter, receiver or other cable. There are various fiber cable connectors, for which different connectors have different characteristic and functions.

The most popular used ones are ST. SC, FC and LC style connectors, which vary differently from characteristics, applications and performances. All the connectors have three major components: the ferrule, the connector body and the coupling mechanism. Among those, the ferrule is used for protecting and aligning the stripped fiber end. The connector body holds the ferrule and attaches to the jacket and strengthens fiber cable. The coupling mechanism is a part of the connector body that keeps the connector in place when connected to other devices.

Parameters

Item Parameter
Connector Type ST,SC,FC,LC,MU
Fiber Type SM MM
Color Blue, Green, Metallic Beige,Metallic, Aqua
Testing Wavelength 1310nm, 1550nm 850nm,1300nm
Insertion Loss 0~30dB
Return Loss PC≥50dB, APC≥60dB PC≥25dB
Attenuation Tolerance 0~5dB(±0.5dB), 5~30dB(±10%)
Power Handling ≤200mW
Housing Material Plastic or metal
Alignment Sleeve Ceramic(ZrO2) or customized
Operating Temperature -20℃ to +70℃
Storage Temperature -40℃ to +85℃

Charactristics

1) Low insertion loss

2) Corroion resistant body

3) Ultra low back reflection

4) For 3.0mm,2.0mm jacket or 900um buffer

5) One piece with pre-domed ceramic ferrule is designed for easy assembly

6) Meets Telecordia-GR-326-CORE specifications
