Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector
Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector
Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector
Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector
Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector
Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector
Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector
Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector
Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector
Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector
Specifications
Brand Name :
XDK
Model Number :
G652D/G657A1/G657A2
Certification :
ISO, OHSAS18001,RoHS,CRP,UL
Place of Origin :
China/Vietenam
MOQ :
1
Payment Terms :
L/C, D/A, D/P, Western Union, T/T
Supply Ability :
5000000m/month
Delivery Time :
around 5 working days
Packaging Details :
customizable
Application :
Data communication
Model number :
GJJV
Lead time :
within one week
Packing :
Negotiable
Fiber type :
Single mode or Multi mode
Fiber number :
1 core
Tight Buffer :
PVC (LSZH、Hytrel、PA or Customer required)
Thickness(mm) :
≥0.15、≥0.25、≥0.3
Description

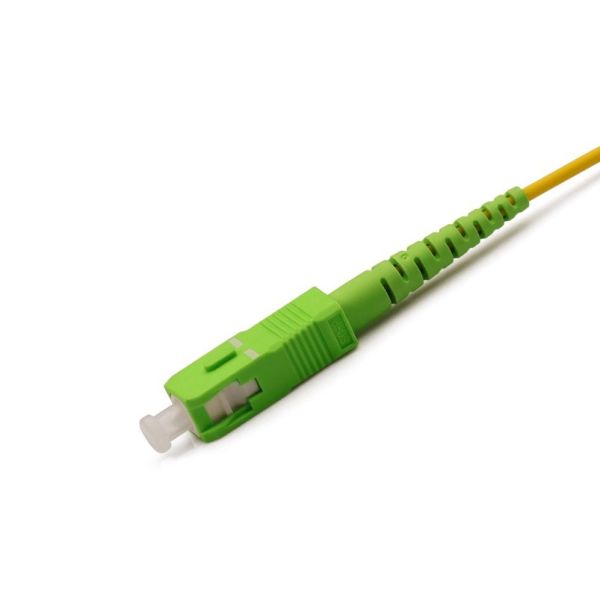

Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector

Screw-thread coupling mechanism


Ceramic ferrules


Low insertion loss, high return loss


Good in repeatability and exchangeability


100% Insertion, Return Loss, End Face and Interference inspection


Excellent mechanical endurance


High credibility and stability


Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard

Connector Type FC, SC, LC, ST, MU, E2000, D4, DIN
Fiber Mode SM MM
End face PC UPC APC PC
IL(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
RL(dB) ≥45 ≥50 ≥60 ≥35
Other model MT-RJ, MPO
≤IL(dB) ≤0.7 / ≤0.7 ≤0.5
RL(dB) ≥30 / ≥50

≥25

Fiber Optic Cable Patch Cord with Sc/FC/LC/St/E2000/Mu/MTRJ Connector

6,Cable marking and cable reel marking

6.1 Cable marking

The cable sheath shall be marked with white characters at intervals of one meter with following information:

(1) Purchaser’s name

(2) Cable type

(3) Fiber type and counts

(4) Year of manufacture

(5) Length marking

Notice: cable mark is available if requested by customer.

6.2 Cable reel

Details given below shall be marked with a weather materials on both outer sides of the reel flange :

(1) Cable type and fiber counts

(2) Length of cable in meters

(3) Year of manufacture

Notice: shipping mark is available if requested by customer.

7, Packing Informations

(1) Packing material: Wooden drum

(2) Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer
