LSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC Listed
LSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC Listed
LSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC Listed
LSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC Listed
LSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC Listed
LSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC Listed
Specifications
Brand Name :
XDK
Model Number :
Fiber Optic Patch Cord LC/UPC-LC/UPC,Muiltmode, OM2, Simplex
Certification :
CE RoHS FCC
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 million termination/month
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Connector Type :
LC/UPC-LC/UPC
Fiber Count :
Simplex
Jacket Material :
as requested
Color :
different colors optional
Length :
Customized
Manufacturer :
yes
Fiber type :
Singlemode or multimode
Description

LSZH Muiltmode OM2 LC/UPC-LC/UPC Fiber Optic Patch Cord

Introduction of Muiltmode OM2 LC/UPC-LC/UPC Fiber Optic Patch Cord

Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.

Our patch cord provides high reliability and flexibility for our customers in different industries. Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data.

Specifications of Muiltmode OM2 LC/UPC-LC/UPC Fiber Optic Patch Cord

Connector Type LC/UPC to LC/UPC Fiber Count Simplex
Fiber Mode OM2 50/125um

OFL Bandwidth

(850/1300nm)

 500/500 MHz*km
Insertion Loss ≤0.3dB Return Loss ≥35dB

Attenuation at 850/1300nm

(Typical)

 3.5/1.5 dB/km Ferrule Materials Ceramic
Cable Diameter 3.0mm Strength Member Aramid yarn
Optical Source LED Light

Minimum Bend Radius

(Short term/Long term)

 20D/10D
Cable Jacket LSZH or PVC Cable Colour Orange
Operating Temperature -20~70°C Storage Temperature -40~85°C

Testing Lab

No Device name No Device name
1 Optical time domain reflectometer (OTDR) 8 GNZV Cable Torsion Testing Machine
2 Fiber Polarization Mode Dispersion 9 GQNV Cable Flexing Testing Machine
3 Fiber Dispersion ,Strain Tester 10 GJRV Cable Winding Testing Machine
4 High Low Temperature Test Chamber 11 GZDV Cable Vibration Testing Machine
5 Cable Impact Testing Machine 12 Cable Water Penetration Test
6 Cable Squash Tensile Testing Machine 13 Fusion Splicer
7 GWQV Cable Bending Tester 14 Cable Water Penetration Test Rig

Our advantages of Muiltmode OM2 LC/UPC-LC/UPC Fiber Optic Patch Cord
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable

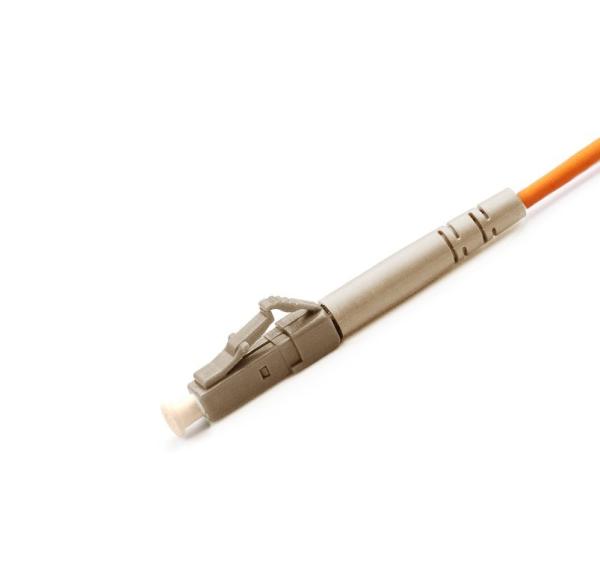

Pictures of Muiltmode OM2 LC/UPC-LC/UPC Fiber Optic Patch Cord

LSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC Listed

LSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC ListedLSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC Listed

Production line of Muiltmode OM2 LC/UPC-LC/UPC Fiber Optic Patch Cord

LSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC Listed

LSZH Multimode OM2 Fiber Optic Patch Cable LC/UPC-LC/UPC FCC Listed
