G652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable Assembly
G652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable Assembly
G652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable Assembly
G652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable Assembly
G652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable Assembly
G652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable Assembly
G652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable Assembly
G652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable Assembly
Specifications
Brand Name :
XDK
Model Number :
Fiber Optic Patch Cord ST/APC-ST/APC Singlemode G652D Simplex
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Supply Ability :
5 million termination/month
Fiber Mode :
G652D 9/125um
Connector Type :
ST/APC-ST/APC
Fiber Count :
Simplex
Jacket Material :
LSZH, PVC( can be required)
Jacket Color :
Yellow
Length :
1m,5m(can be required)
Description

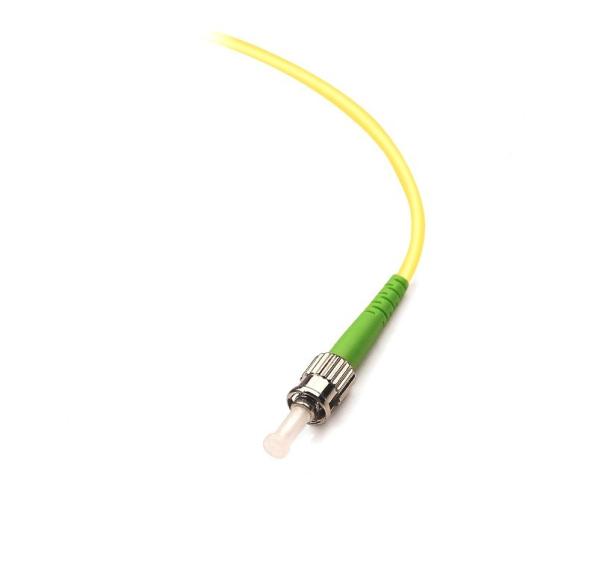

Fiber Optic Patch Cord/ST/APC-ST/APC Singlemode G652D/ Simplex/3.0mm/ LSZH/PVC/ Yellow

Introduction

Our patch cord provides high reliability and flexibility for our customers in different industries. Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.

G652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable AssemblyG652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable AssemblyG652D Single Mode Fibre Patch Leads , Om1 Om2 Fiber Optic Cable Assembly

Features

1) Avalible in simplex, duplex connector

2) Quick-tum service for fast delivery

3) TIA compliant color-coded connectors and boots

4) Cable jaket and boots color-coded for easy ID of fiber

5) Fiber options: OS2, OM1,OM3, and OM4

6) 100% tested for insertion loss and return loss

Specification

Connector Type ST/APC to ST/APC Fiber Count Simplex
Fiber Mode G652D 9/125um Working Wavelength 1260~1625nm
Insertion Loss ≤0.3dB Return Loss ≥60dB

Attenuation at 1310/1550nm

(Typical)

 0.36/0.22 dB/km Ferrule Materials Ceramic
Cable Diameter 3.0mm Strength Member Aramid yarn

Minimum Bend Radius

(Long term)

 10D

Minimum Bend Radius

(Short term)

 20D
Cable Jacket PVC or LSZH Cable Colour Yellow
Operating Temperature -20~70°C Storage Temperature -40~85°C

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
