Specifications
Brand Name :
XDK
Model Number :
Fiber Optic Patch Cord, Uni-boot LC
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 million termination/month
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Fiber Mode :
OS1,OS2,OM1,OM2,OM3,OM4,OM5
Connector Type :
Push pull or no push pull
Fiber Count :
Two fibers
Jacket Material :
LSZH, PVC( can be required)
Jacket Color :
Yellow, Aqua, Violet, Orange, Green
Length :
1m-99m(can be required)
Description

Uniboot LC Fiber Optic Patch Cord For Networking Cabling

Introduction of Uniboot LC Fiber Optic Patch Cord

Uni-boot LC is a duplex LC connector with a single boot, dubbed the LC Uni-boot. The connector's design allows asingle round duplex 3 mm cable to be used for a duplex connector. The single piece design fits all duplex adapters. By using a single cable with two fibers, installers are able to cut their cable count and weight in half. The design is suitablefor use in data centers where cable counts are high and space is limited.

Uni-boot optical fiber patch-cord is ideal for interconnection of SAN switches, networking equipment and fiberchannel devices that require up to 10Gbps data transmission.

Features and Benefits of Uniboot LC Fiber Optic Patch Cord

1) High-quality ferrules.
2) Bend-insensitive/bend optimized fibers.

3) Low loss or standard loss connectivity.

4) Compact, single cable with two fibers.
5) Plastic housing and boot made from UL-rated materials.
6) Fully compatible with standard LC products.

7) Uni-boot LC switchable function meet the flexible connection.

8) Pulling tab for easy access to connectors in high density environments.

Technical Data of Uniboot LC Fiber Optic Patch Cord

Mechnical Data Value
Connector Type Push pull or no push pull
Polarity Type Fixed or Switchable
Cable Diameter 2.0mm or 3.0mm round
Cable Jacket Color Yellow, Orange, Aqua, Violet, Green

Optical Data Value
Fiber Mode OS1/OS2 - 9/125 bend insensitive or 1/2/3/4/5
Fully Compliant 850nm (Multimode), 1310nm/1550nm (Singlemode)

IL(Low Loss)

 Singlemode≤0.10dB, Multimode≤0.10dB
IL(Standard Loss) Singlemode≤0.3dB, Multimode≤0.3dB
Return Loss

Singlemode UPC≥50dB APC≥60dB

Muiltmode UPC≥25dB

Environment Data

Description Value
Operating Temperature -20℃ to +60℃
Store Temperature -20℃ to +60℃
Fully Compliant IEC-61754, TIA/EIA-604, GR326, RoHS

Odering Information

- x x x x x x x
Type Polish Fiber Mode Insertion Loss Polarity Push Pull Jacket Length
UBLC

1=UPC

2=APC

1=OS1

2=OS2

3=OM1

4=OM2

5=OM3

6=OM4

7=OM5

1=Low Loss

2=Standard Loss

1=A-A

2=A-B

1=Yes

2=No

1=LSZH

2=PVC

01=01m

...

99=99m

Note: APC only OS2 fiber mode.

Example:

UBLC 111122103

Means : Uni-boot LC, LC/UPC - LC/UPC, OS2, Low Loss, Polarity A-A,No push-pull, OD 3.0mm, LSZH, 3M Length.

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH

Testing Lab

No Device name No Device name
1 Optical time domain reflectometer (OTDR) 8 GNZV Cable Torsion Testing Machine
2 Fiber Polarization Mode Dispersion 9 GQNV Cable Flexing Testing Machine
3 Fiber Dispersion ,Strain Tester 10 GJRV Cable Winding Testing Machine
4 High Low Temperature Test Chamber 11 GZDV Cable Vibration Testing Machine
5 Cable Impact Testing Machine 12 Cable Water Penetration Test
6 Cable Squash Tensile Testing Machine 13 Fusion Splicer
7 GWQV Cable Bending Tester 14 Cable Water Penetration Test Rig

Advantages of our Uniboot LC Fiber Optic Patch Cord
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable

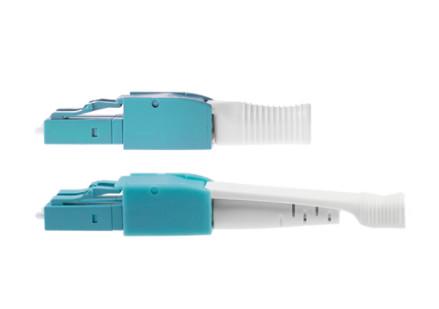

Images of Uniboot LC Fiber Optic Patch Cord and part of certifications

Uniboot Lc To Lc Fiber Patch Cable Single Mode Duplex For Networking Cabling

Uniboot Lc To Lc Fiber Patch Cable Single Mode Duplex For Networking Cabling
