Ferrules G657A1 Optical Bundle Patch Cord 4-144 Core High Fiber Density
Ferrules G657A1 Optical Bundle Patch Cord 4-144 Core High Fiber Density
Specifications
Brand Name :
XDK
Model Number :
Fiber Optic Bundle Patch Cord
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 million termination/month
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Fiber Mode :
G657A1,G657A2,OS1,OS2,OM1,OM2,OM3,OM4,OM5
Fiber Count :
Simplex
Connector Type :
LC/SC/FC/ST
Jacket Material :
LSZH, PVC( can be required)
Jacket Color :
Yellow, Aqua, Violet, Orange
Length :
1m-99m(can be required)
Core count :
4-144 core available.
Manufacturer :
yes
Description

High-Quality Ferrules Fiber Optic Bundle Patch Cord With 4-144 core available

Description of Fiber Optic Bundle Patch Cord

The main cable of multi-core branch jumper is multi-core round cable with conventional optical fiber connectorat both ends. Black branch or hot shrink tube is used as branch node which can save cost and ensure goodmechanical and optical performance.

Our Bundle Patch cord provides high reliability and flexibility for our customers in differentindustries. Our top-of-the-line fiber optic cable assembles and stringent manufacturing processensures the excellent optical performance for our Bundle Patch cord with traceable data. All Bundle Patchcord can be customized in length, fiber type and connector types to suit each customer requirement withour state-of-the-art production facilities.

Features and Benefits of Fiber Optic Bundle Patch Cord

1) High-quality ferrules.

2) 4-144 core available.

3) Low loss or standard loss connectivity.

4) 100% factory tested assemblies.

5) Low insertion loss, high return loss, stricter than industrystandards.
6) Small volume, high fiber density.

7) Good exchangeability and good durability.

8) Stable optical properties.

Technical Data of Fiber Optic Bundle Patch Cord

Mechnical Data Value
Connector Type LC/SC/FC/ST
Polarity Type A to B, A to A
Branch Cable Diameter 0.9,2.0,3.0mm
Cable Color Yellow, Orange, Aqua, Violet

Optical Data Value
Fiber Mode OS1/OS2/G657A - 9/125 bend insensitive (A.1 or A.2) OM1/2/3/4/5
Fully Compliant 850nm (Multimode), 1310nm/1550nm (Singlemode)

IL(Low Loss)

 Singlemode≤0.10dB, Multimode≤0.10dB
IL(Standard Loss) Singlemode≤0.3dB, Multimode≤0.3dB
Return Loss

Singlemode UPC≥50dB APC≥60dB

Muiltmode UPC≥25dB

Environment Data

Description Value
Operating Temperature -20℃ to +60℃
Store Temperature -20℃ to +60℃
Fully Compliant IEC-61754, TIA/EIA-604, GR326, RoHS

Odering Information

- x x x x x x x x x x
Type Connector Polish Connector Polish Fiber Mode Insertion Loss Polarity Branch Cable Diameter Jacket Length
FOBPC

1=LC/Simplex

2=SC/Simplex

3=FC/Simplex

4=ST/Simplex

5=LC/Duplex

6=SC/Duplex

1=UPC

2=APC

1=LC/Simplex

2=SC/Simplex

3=FC/Simplex

4=ST/Simplex

5=LC/Duplex

6=SC/Duplex

1=UPC

2=APC

1=OS1

2=OS2

3=G657A1

4=G657A2

5=OM1

6=OM2

7=OM3

8=OM4

9=OM5

1=Low Loss

2=Standard Loss

1=A-A

2=A-B

1=2.0/simplex

2=3.0/simplex

3=2.0x4.1/duplex

1=LSZH

2=PVC

01=01m

...

99=99m

Note: APC only for single mode

Example:FOBPC 5161122313 Means : Duplex, LC/UPC -SC/UPC, OS2, Standard Loss, Polarity AB, OD 2.0X4.1mm, LSZH, 3mLength

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH

Testing Lab

No Device name No Device name
1 Optical time domain reflectometer (OTDR) 8 GNZV Cable Torsion Testing Machine
2 Fiber Polarization Mode Dispersion 9 GQNV Cable Flexing Testing Machine
3 Fiber Dispersion ,Strain Tester 10 GJRV Cable Winding Testing Machine
4 High Low Temperature Test Chamber 11 GZDV Cable Vibration Testing Machine
5 Cable Impact Testing Machine 12 Cable Water Penetration Test
6 Cable Squash Tensile Testing Machine 13 Fusion Splicer
7 GWQV Cable Bending Tester 14 Cable Water Penetration Test Rig

Advantages of Fiber Optic Bundle Patch Cord
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable

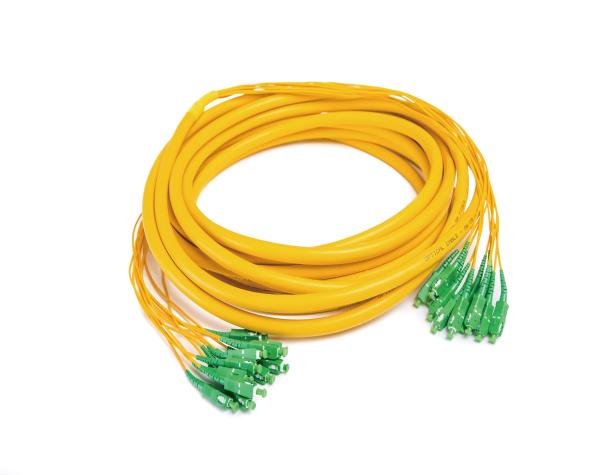

Images of Fiber Optic Bundle Patch Cord

Ferrules G657A1 Optical Bundle Patch Cord 4-144 Core High Fiber Density
