Fiber Optic Patch Cord/ CS Patch Cord/ 400G Network Transmission/ Push - Pull Rod Design/LSZH/ Yellow/
Fiber Optic Patch Cord/ CS Patch Cord/ 400G Network Transmission/ Push - Pull Rod Design/LSZH/ Yellow/
Fiber Optic Patch Cord/ CS Patch Cord/ 400G Network Transmission/ Push - Pull Rod Design/LSZH/ Yellow/
Fiber Optic Patch Cord/ CS Patch Cord/ 400G Network Transmission/ Push - Pull Rod Design/LSZH/ Yellow/
Specifications
Brand Name :
XDK
Model Number :
CS Patch Cord
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Supply Ability :
5 million termination/month
Fiber Mode :
OS1/OS2 - 9/125 bend insensitive or OM1/2/3/4/5
Connector Type :
CS
Jacket Material :
LSZH
Color :
Yellow, Aqua, Violet, Lime green
Length :
can be required
Fiber Count :
1 core
Description

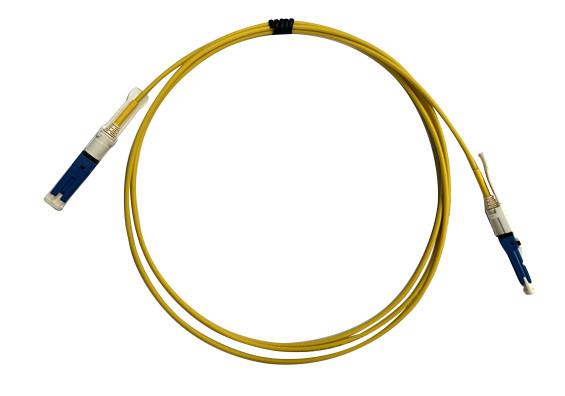

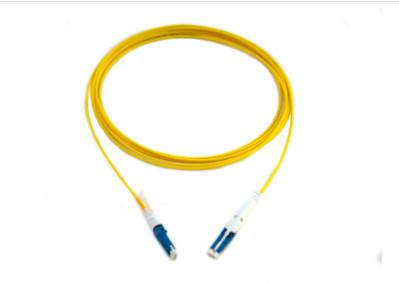

Cable Picture

Fiber Optic Patch Cord/ CS Patch Cord/ 400G Network Transmission/ Push - Pull Rod Design/LSZH/ Yellow/

Introduction

Facing 400G, the challenge we are facing is how to provide, add and support applications with high density and large bandwidth in the super large data center. These applications need a lot of spaceto accommodate a large number of cables. Low insertion loss, highfiber density, easy installation and stable performance are allnecessary considerations for the next generation of 400G datacenter. 400G network transmission for MTP/MPO connector as theconnection interface, we can use 32, 16 or 8 cores optical fibertransmission, while CS connector brings higher density fiberconnection application scheme for 400G. The maximum capacity of1U is 320 ports, and the panel density is 2.65 times higher than LCdual core connector.

Features

1) Its dual core size is only 8mm, which is 36% smaller than LC dual core connector, which means higher wiringdensity is feasible.

2) With the push - pull rod design, the adapter panel does not need to reserve the space for finger insertion andextraction, and the panel adapter density can be maximized to improve the wiring density.

3) It is specially designed for OSFP-DD (200G/W400G) applications, suitable for OSFP (800G) applications, and canprovide compatibility in the future higher speed 800G transmission.
4) It is suitable for the commonly used 1.25 mm plug, which makes it universal and has no high cost risk.

Technical Data

Mechnical Data Value
Connector Type CS
Polarity Type A to B, A to A
Cable Diameter 2.0mm round
Cable Color Yellow, Aqua, Violet, Lime green

Optical Data Value
Fiber Mode OS1/OS2 - 9/125 bend insensitive or OM1/2/3/4/5
Fully Compliant 850nm (Multimode), 1310nm/1550nm (Singlemode)

IL(Low Loss)

 Singlemode≤0.15dB, Multimode≤0.15dB
IL(Standard Loss) Singlemode≤0.3dB, Multimode≤0.3dB
Return Loss

Singlemode UPC≥50dB APC≥60dB

Muiltmode UPC≥25dB

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH

Transportation

Fiber Optic Patch Cord/ CS Patch Cord/ 400G Network Transmission/ Push - Pull Rod Design/LSZH/ Yellow/
