Patch Panel LC Cassette MTP MPO Fiber Cable With HD Enclosure
Patch Panel LC Cassette MTP MPO Fiber Cable With HD Enclosure
Patch Panel LC Cassette MTP MPO Fiber Cable With HD Enclosure
Patch Panel LC Cassette MTP MPO Fiber Cable With HD Enclosure
Patch Panel LC Cassette MTP MPO Fiber Cable With HD Enclosure
Patch Panel LC Cassette MTP MPO Fiber Cable With HD Enclosure
Specifications
Brand Name :
XDK
Model Number :
MPO LC Cassette MTP Modules Box
Certification :
ROHS,ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T D/P D/A
Supply Ability :
5million termination per month
Delivery Time :
7 working days
Packaging Details :
OEM PE bag, carton box, wooden roll
Dimensions :
Type A: 26mm (1.02”) X 93mm (3.66”) X 133.5mm (5.25”)
Material / Color :
Aluminum (Powder Coated), Plastic ABS+PC/Black
Adapter Type Front :

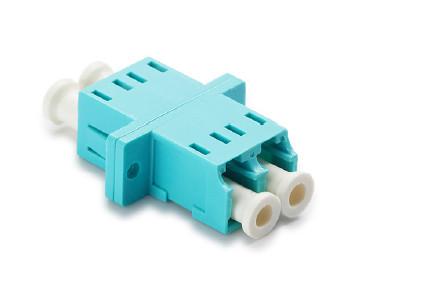

LC-DX/SC-SX Adaptor
Adapter Color Front :
Blue, Green (APC), Aqua, Violet, Lime Green
Description

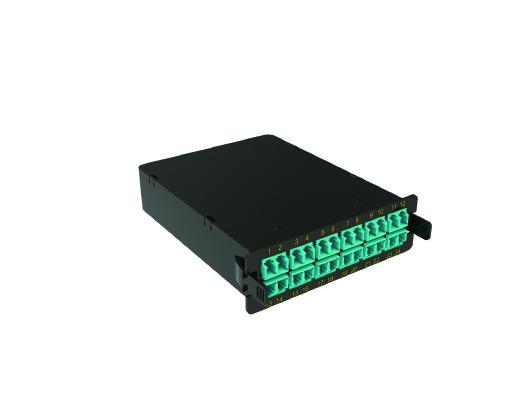

HD Date Center Solution, MPO LC Cassette MTP Modules Box For Patch Panel with HD enclosure 1U, 2U and 4U

HD( High Density),MPO Cassette MTP Modules Box For Patch Panel

Description:

- MTP/MPO Cassette Modules provide secure transition between MTP/MPO and LC or SC discrete connectors.They are used to interconnect MTP/MPO backbones with LC or SC patching.

- The front cassette is equipped with a 12-port LC duplex adapter, and the rear cassette is equipped with a 2-port for MPO adapter.

- Maximum can do 24 fibers.
- Multiple polarities to choose.
- Plug-and-play modular architecture enables rapid deployment of data center fiber infrastructure and improved troubleshooting, reconfiguration, reconfiguration, and migration of fiber optic cables.
- 100% terminated in the factory and strictly tested for connection to ensure minimum insertion loss, fully meeting the demanding high-speed network.


Features:
- Made by strength steel tape.

- 19" standard size, Fit with 19'' Rack type Cabinet, easy to install.

- Hyperdensity, 1U rack can install 96fiber, save more space.

- Roomy space ensure fiber bent ratio.
- Provides a complete system solution for connectivity.
- Well cable management, cable can be distinguished easily.
- Light weight, strong strength, good anti-shocking and dustproof.
- Provide higher patch field density in fewer rack units saving valuable space.
- Assures flexibility and ease of network deployment and moves, adds, and changes.

Application:

- Metro

- CATV

- Passive fiber optic networks

- Builing communication center

- Bank Data center

- Communication center rooms
- FTTH (Fiber to The Home)

- FTTA (Fiber to the attena)

MTP/MPO Specifications:

- Standard LC / SC / MPO adapters.

- Low loss performance ≤ 0.5 dB.

- Available in Base-8, Base-12 or Base-24 configurations.

- Tool-less installation.

- Clear port identification and traceability.

- Facilitates easy upgrade to 40G.

- Compatible with HD enclosure 1U, 2U and 4U.

Technical Data

Mechanical Data Value
Dimensions (WxDxH)

Type A 26mm (1.02'')x93mm (3.66'')x133.5mm (5.25'')

Type B 22mm (0. 87'')x93mm (3.66'')x133.5mm (5.25'')
Weight 0.185kg
Material / Colour Aluminum (Powder coated), Plastic ABS+PC/Black
Adapter Type Front LC-DX/SC-SX adaptor
Adapter Quantity Front 4 (Base-8), 6 (Base-12),12 (Base-24)
Adapter Colour Front Blue, Green APC, Aqua, Violet, Lime Green

Optical Data Value
Fiber Mode OS1,OS2 125 bend insenitive (A.1 or A.2) or OM1/2/3/4/5
Test Wavelength 850nm (Multimode), 1310nm/1550nm (Singlemode)
Insertion Loss (MTP/MPO) Low Singlemode≤0.35dB, Multimode≤0.35dB
Standard Singlemode≤0.60dB, Multimode≤0.60dB
Insertion Loss(LC) Low Singlemode≤0.10dB, Multimode≤0.10dB
Standard Singlemode≤0.30dB, Multimode≤0.30dB
Return Loss

Singlemode UPC≥50dB APC≥60dB

Multimode UPC≥20dB

Relation Product:

Patch Panel LC Cassette MTP MPO Fiber Cable With HD Enclosure

Patch Panel LC Cassette MTP MPO Fiber Cable With HD Enclosure

MTP/MPO Connector Specifications:

Type Single Mode Single Mode Multi Mode
(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times＜0.5 dB
Interchange ＜0.5 dB
Anti-tensile force 15kgf

Product tags

qsfp to lc breakout cable

,

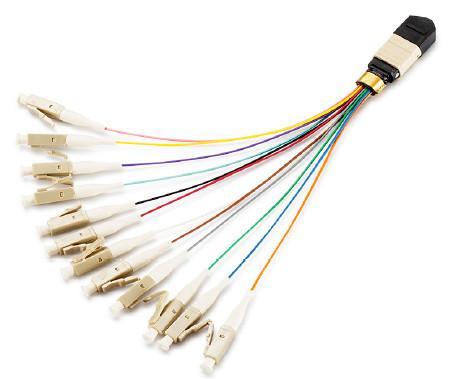

mpo to lc breakout cable

,
