OFNP 4.5mm ST Single Mode Fiber Optic Pigtails For Data Center Cabling/LSZH
OFNP 4.5mm ST Single Mode Fiber Optic Pigtails For Data Center Cabling/LSZH
OFNP 4.5mm ST Single Mode Fiber Optic Pigtails For Data Center Cabling/LSZH
OFNP 4.5mm ST Single Mode Fiber Optic Pigtails For Data Center Cabling/LSZH
Specifications
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5million termination per month
Delivery Time :
5-8 Working day
Packaging Details :
OEM PE bag, carton box, wooden roll
Brand Name :
XDK
Model Number :
Fiber Optic Pigtail
Certification :
CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin :
China/ Vietnam
Application :
data center cabling, Telecom/network, Telecommunication, TIA942 Polarity management system, Gigabit Ethernet
Product name :
fiber optic pigtail, LC APC SM 1m fiber pigtail,
Insertion loss :
Standard ≤0.25dB Low Loss : ≤0.15dB
Length :
Customized, 1km or 2km or500m, 1km/2km each roll, 500/1000/2000M/Customized
Cable diameter :
0.9/2.0/3.0mm
Jacket material :
OFNP, PVC, LSZH
Description

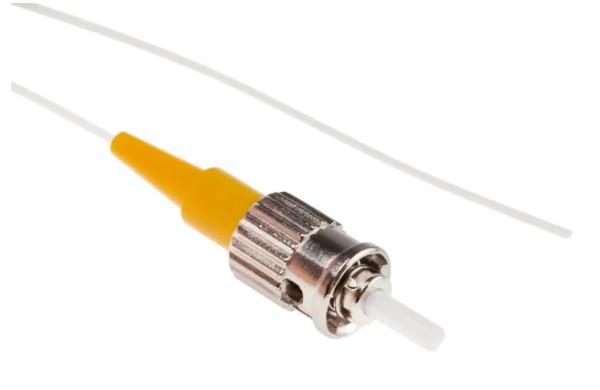

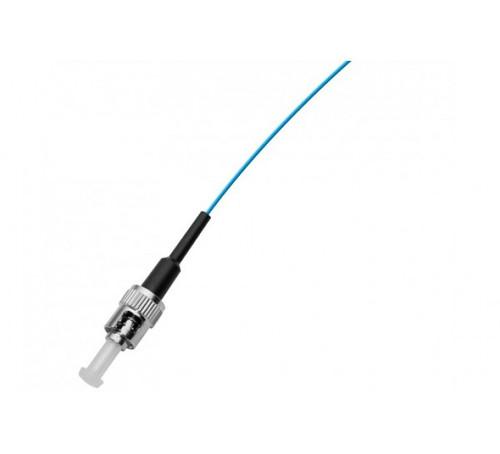

ST fiber cable pigtail Single Mode Fibre Optic Cable Pigtail 4.5mm

Attribute Value
Length 1m
Propagation Mode OS1 Single Mode
Terminated/Unterminated Terminated
Connector B Pigtail
Core Diameter 4.5mm
Connector A ST
Fibre Type OS1, OS2

Description:

Single mode pigtails are used in telecom, datacom networks and also used for high speed metropolitan and access network. The single mode pigtail buffer conforms to IEC, EIA TIA or Telcordia standards. The single mode pigtails are terminated with standard connectors each supplied with a protective cap on the zirconia ceramic ferrule. Standard connectors provide optimum optical performance.

Features:

• SC, LC, ST and FC Connectors

• UPC and APC Connectors

• Low smoke zero halogen (LSZH) buffer

• 900μm tight buffer or easy strip structure

• OS1/OS2 optical fibre conforms to ITU-G652.D, TIA/EIA 492 CAAA

• OS1/OS2 bend insensitive optical fibre conforms to ITU-G657.A1 or A2

• Different connector performance range for specific application

• Available in standard white colour buffer and also in standard 12 colours as per IEC 60304

• Available in standard and blister packing

• REACH, RoHS & SvHC materials compliant

Applications

• Telecom and datacom application

• Patch panels, wall boxes, ODFs and splice cassettes

• Easy strip pigtails for on site installation

• Supports high speed multi channel video, data and voice services in metropolitan and access networks

• ATM, SONET and WDM
