0.9mm Simplex Fiber Optic Pigtails FC/APC Or MTRJ Connectors/LSZH/Yellow
0.9mm Simplex Fiber Optic Pigtails FC/APC Or MTRJ Connectors/LSZH/Yellow
0.9mm Simplex Fiber Optic Pigtails FC/APC Or MTRJ Connectors/LSZH/Yellow
0.9mm Simplex Fiber Optic Pigtails FC/APC Or MTRJ Connectors/LSZH/Yellow
0.9mm Simplex Fiber Optic Pigtails FC/APC Or MTRJ Connectors/LSZH/Yellow
0.9mm Simplex Fiber Optic Pigtails FC/APC Or MTRJ Connectors/LSZH/Yellow
Specifications
Brand Name :
XDK
Model Number :
Simplex Fiber Optic Pigtail
Certification :
CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin :
China/ Vietnam
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5million termination per month
Delivery Time :
5-8 Working day
Packaging Details :
OEM PE bag, carton box, wooden roll
Cable OD (mm) :
0.9/1.6/1.8/2.0/2.4/3.0
Anti-tensile Force (N) :
>70
Cable diameter :
0.9/2.0/3.0mm
Temperature Range (℃) :
-40~+80
Insertion loss :
≤0.20, MM≤0.75dB, SM≤0.50dB, ≤0.1dB, IL<0.2db
Connector type :
LC, SC/APC, fc/pc, FC SC ST LC, SC / APC
Description

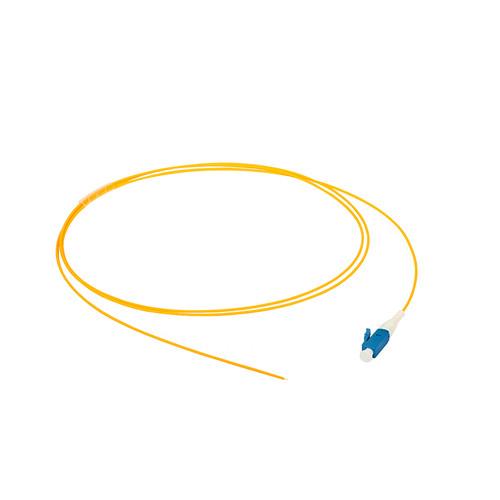

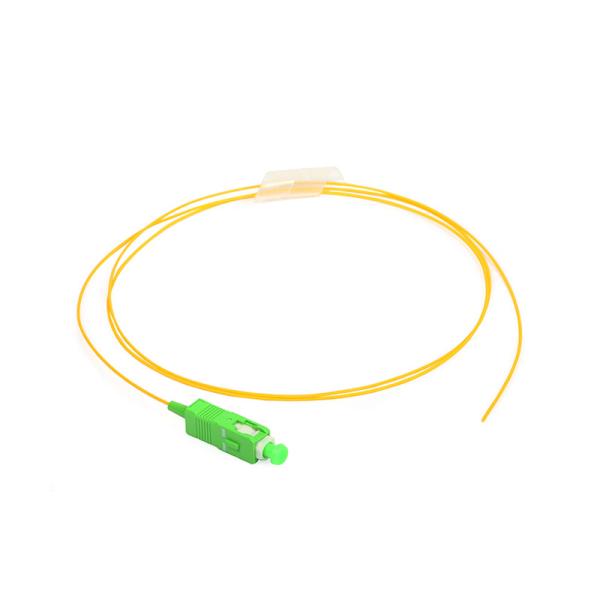

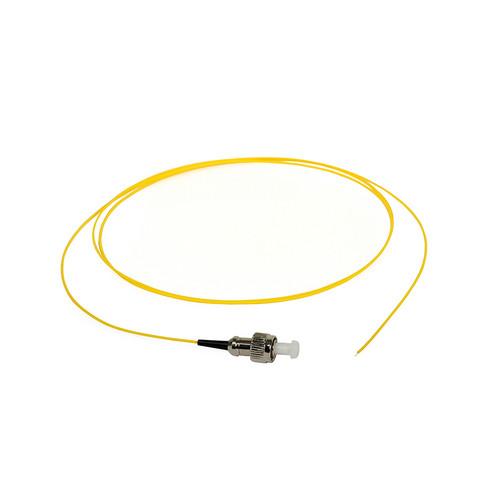

0.9mm Simplex Fiber Optic Pigtail SC, SC/APC, LC, LC/APC, FC, FC/APC, ST and MTRJ connectors

Features

  • Ceramic Ferrule;
  • High return loss;
  • Low insertion loss;
  • Good repeatability and and exchangeability
  • Excellent Polished and 100% tested;
  • Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652/G655/G657 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80


Application

  • Termination of optical networks via fusion or mechanical splicing
  • Testing of optical devices
  • Cable acceptance testing

0.9mm Simplex Fiber Optic Pigtails FC/APC Or MTRJ Connectors/LSZH/Yellow0.9mm Simplex Fiber Optic Pigtails FC/APC Or MTRJ Connectors/LSZH/Yellow
