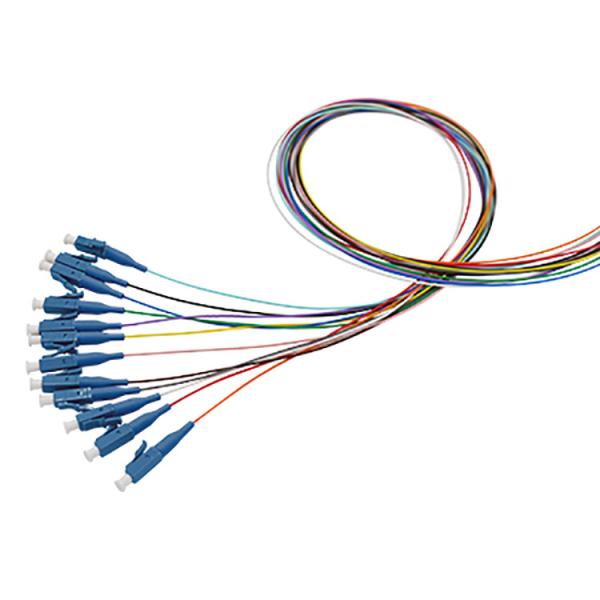

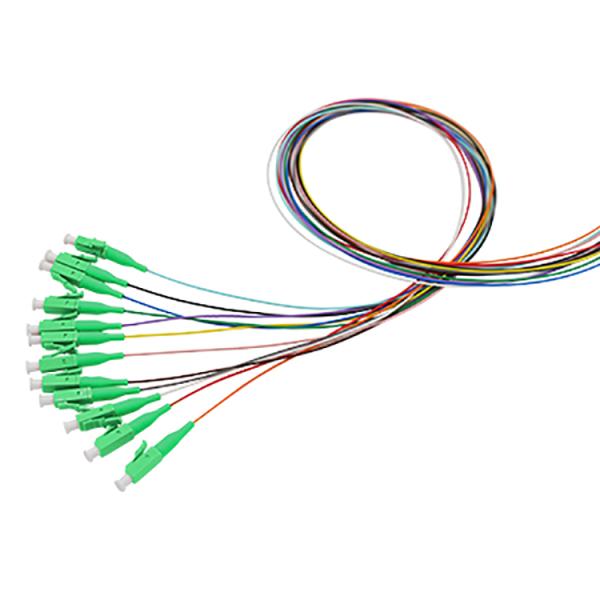

12 color LC apc upc patch cord g652d g657a2 0.9mm simplex fiber optic pigtail for FTTH
12 color LC apc upc patch cord g652d g657a2 0.9mm simplex fiber optic pigtail for FTTH
12 color LC apc upc patch cord g652d g657a2 0.9mm simplex fiber optic pigtail for FTTH
12 color LC apc upc patch cord g652d g657a2 0.9mm simplex fiber optic pigtail for FTTH
Specifications
Brand Name :
XDK
Model Number :
fiber optic pigtail
Certification :
CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5million termination per month
Delivery Time :
7 Working day
Packaging Details :
OEM PE bag, carton box, wooden roll
Type :
Fiber Pigtails
Use :
FTTX/FTTH/PON/CATV System
Fiber Mode :
9/125 μm
Cable Diameter :
0.9 mm
Cable diameter :
0.9/2.0/3.0mm, 3mm, 0.9mm, 2mm
Jacket material :
OFNP, PVC, PVC.LSZH, LSZH
Description

12 color LC apc upc patch cord g652d g657a2 0.9mm simplex fiber optic pigtail for FTTH


Patch cord pigtail, is in the end of a fiber optic cable plus fiber connector, the other end of the original state, to achieve optical network equipment and equipment, equipment and cable between the active connection, simple, convenient and fast. It is one of the essential passive products for optical network construction.

Lucktecch can provide all kinds of patch cord pigtail products; the transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization; it is widely used in optical network scenarios such as central office, FTTX and LAN etc.

LC Pigtail
Fiber Mode
9/125 μm
Fiber Count
Simplex
Fiber Grade
G.652D/G.657A2
Cable Diameter
0.9 mm
Cable Jacket
PVC/LSZH
Parameter
LC Connector
SM
MM
PC
UPC
APC
PC
Insertion loss
≤0.25dB
≤0.25dB
≤0.25dB
≤0.25dB
Return loss
≥50dB
≥55dB
≥60dB
/
operating wavelength
1310nm, 1550nm
850nm, 1300nm
Ferrule Concentricity
≤1um
≤4um
Wavelength
1310 nm/1550 nm
Durability
>1000 Times
Working temperature
-40~85°C
Storage temperature
-40~85°C
12 color LC apc upc patch cord g652d g657a2 0.9mm simplex fiber optic pigtail for FTTH
