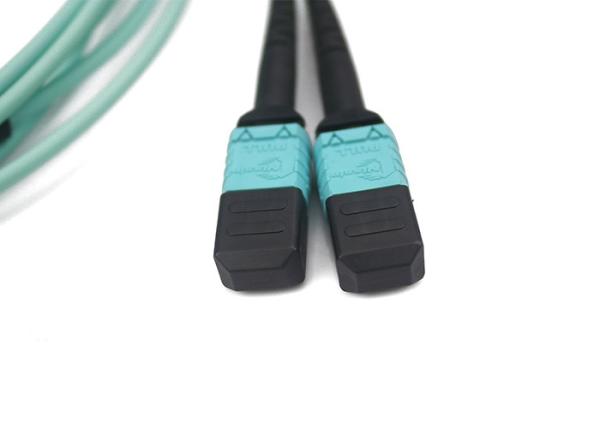

MTP PC- MTP PC Data Center Fiber Optic Cable , Fiber Optic 24 Core 48core OM3 OM4
MTP PC- MTP PC Data Center Fiber Optic Cable , Fiber Optic 24 Core 48core OM3 OM4
MTP PC- MTP PC Data Center Fiber Optic Cable , Fiber Optic 24 Core 48core OM3 OM4
MTP PC- MTP PC Data Center Fiber Optic Cable , Fiber Optic 24 Core 48core OM3 OM4
Specifications
Brand Name :
XDK
Model Number :
MTP PC- MTP PC Truck Patch Cable for Date center 24core 48core OM3 OM4 Aqua 3.0mm single jacket or 4.6mm
Certification :
CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T D/P D/A
Supply Ability :
5million termination per month
Delivery Time :
7 working days
Packaging Details :
OEM PE bag, carton box, wooden roll
Ferrule :
0.35dB(Low Loss Elite)
Color :
Aqua, Pink, Violet, Customized
Outer jacket :
LSZH(CPR),PVC,UL PVC
Diameter :
3.0mm,4.6mm
Connector Type :
US Conec MTP®-MTP® Female male
Fiber Mode :
OM3 OM4 50/125μm SM OS2
Installation Tensile Load :
70N
Long-Term Tensile Load :
50N
Fiber Counts :
12core 24core 48core
Cable Length :
1 2 3 meter or customized
Description

Performance:

END A END B
Connector Type MTP/MPO MTP/MPO LC LC Uniboot SC
Polarity Polarity A, Polarity B, Polarity C
IL(MTP/MPO) Standard ≤0.5 dB Ave ≤0.3dB
IL(MTP/MPO) Elite: ≤0.35dB Ave: ≤0.2dB
IL(LC/SC) Standard ≤0.25dB Low Loss : ≤0.15dB
RL SM:≥60dB MM: ≥20dB
Tester Brand EXFO & JGR
Repeatability ≤0.2dB
Interchangeability ≤0.2dB
Mating 1000 Times
Opterating Temperature -20℃ ~ +70℃
3D Interferometer Fiber Height: 1000nm~3500nm
Radius Long: 500mm min Radius Short: 50mm min Ferrule Height: 7.95mm min
MM Core Dip: <100nm

Test:

MTP PC- MTP PC Data Center Fiber Optic Cable , Fiber Optic 24 Core 48core OM3 OM4
Features:

- Ulitize MPO/MTP connectors

- Inner: Ceramic Ferrule

- Available in Elite insertion loss and standarad insertion loss.

- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.

- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.

- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5

- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard

- Interface polished type has PC, UPC and APC

- Support use in attaching directly to 40/100G transceivers

- 100% factory tested, with test results included for each assembly

Application

- Metro

- CATV

- Passive fiber optic networks

- Builing communication center

- Bank Data center

- Communication center rooms
- FTTH (Fiber to The Home)

- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System

Notices:

①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

②Ferrule End-face: PC, UPC, APC

③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

④Fiber Quantity: 4 core, 8 core, 12 core, 24 core

⑤Cable Length: 1, 2, 3 meter or customized

⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

MTP PC- MTP PC Data Center Fiber Optic Cable , Fiber Optic 24 Core 48core OM3 OM4


Cable production line:

MTP PC- MTP PC Data Center Fiber Optic Cable , Fiber Optic 24 Core 48core OM3 OM4

Transportation

MTP PC- MTP PC Data Center Fiber Optic Cable , Fiber Optic 24 Core 48core OM3 OM4
