HD( High Density),MPO Cassette MTP Modules Box For Patch Panel

HD Date Center Solution, MPO LC Cassette MTP Modules Box For Patch Panel with HD enclosure 1U, 2U and 4U

Description:

- MTP/MPO Cassette Modules provide secure transition between MTP/MPO and LC or SC discrete connectors.They are used to interconnect MTP/MPO backbones with LC or SC patching.
- Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes.Cassettes can be mounted in 1U, 2U or 3U 19" multislot chassis.
- MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fanouts to deliver optical performance and reliability.Low loss MTP/MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

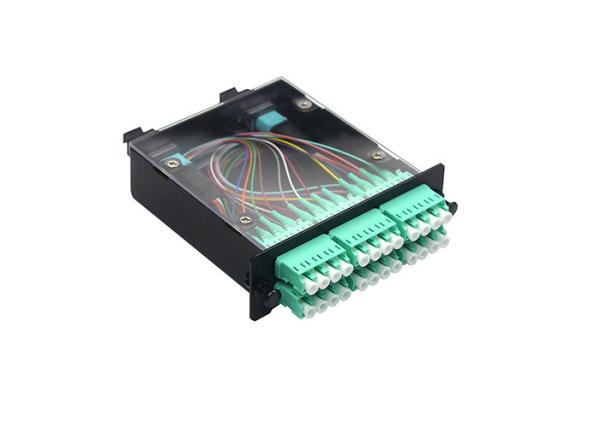

- The front cassette is equipped with a 12-port LC duplex adapter, and the rear cassette is equipped with a 2-port for MPO adapter.

- Maximum can do 24 fibers.
- Multiple polarities to choose.
- Plug-and-play modular architecture enables rapid deployment of data center fiber infrastructure and improved troubleshooting, reconfiguration, reconfiguration, and migration of fiber optic cables.
- 100% terminated in the factory and strictly tested for connection to ensure minimum insertion loss, fully meeting the demanding high-speed network.

Features:
- Made by strength steel tape.

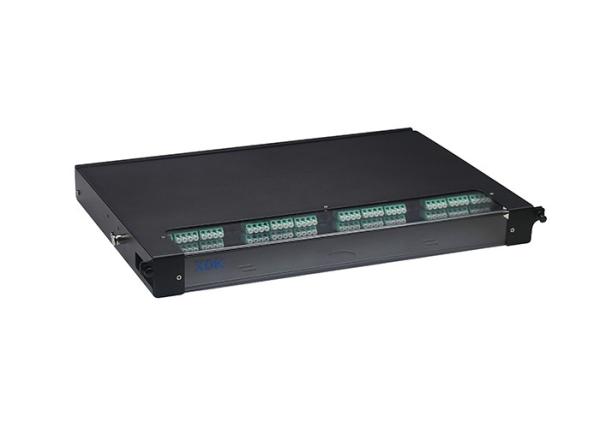

- 19" standard size, Fit with 19'' Rack type Cabinet, easy to install.

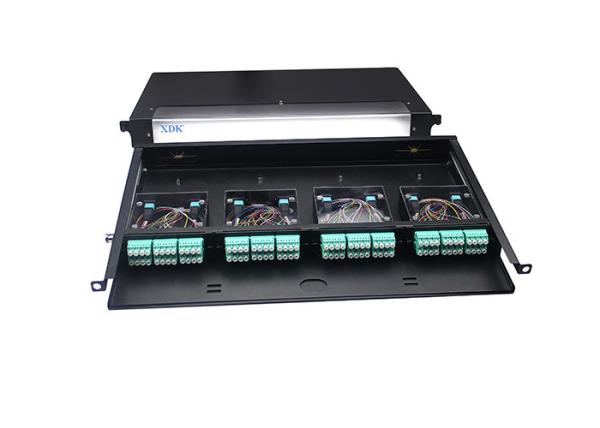

- Hyperdensity, 1U rack can install 96fiber, save more space.

- Roomy space ensure fiber bent ratio.
- Provides a complete system solution for connectivity.
- Well cable management, cable can be distinguished easily.
- Light weight, strong strength, good anti-shocking and dustproof.
- Provide higher patch field density in fewer rack units saving valuable space.
- Assures flexibility and ease of network deployment and moves, adds, and changes.

MTP/MPO Specifications:

Standard LC / SC / MPO adapters.

Low loss performance ≤ 0.5 dB.

Available in Base-8, Base-12 or Base-24 configurations.

Tool-less installation.

Clear port identification and traceability.

Facilitates easy upgrade to 40G.

Compatible with HD enclosure 1U, 2U and 4U.

MPO to LC cassette allow users to convert Base-8 Base-12 or Base-24 MPO trunk cables to Base-2 LC-DX adaptors

to match the transceivers of nearby switches and servers. The MPO connection at the rear of the cassette provides a

high degree of flexibility. The front of adapter can choose LC-DX or SC-SX type.

The cassette are available with low-loss (LL) or standard-loss performance depending on the application and

distance. With simple inter-connect topologies, standard-loss is normally sufficient, however is longer more complex

links and low loss performance may be required.
