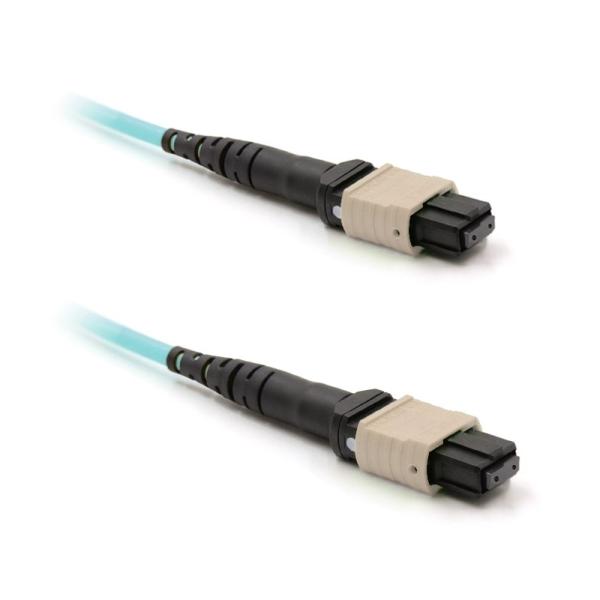

MPO- MPO Patch Cable 12 core Fiber Cable MTP- MTP OM3 OM4 Multimode for Data center
MPO- MPO Patch Cable 12 core Fiber Cable MTP- MTP OM3 OM4 Multimode for Data center
MPO- MPO Patch Cable 12 core Fiber Cable MTP- MTP OM3 OM4 Multimode for Data center
MPO- MPO Patch Cable 12 core Fiber Cable MTP- MTP OM3 OM4 Multimode for Data center
Specifications
Brand Name :
XDK
Model Number :
MPO- MPO , MTP- MTP
Certification :
CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin :
China/ Vietnam
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T D/P D/A
Supply Ability :
5million termination per month
Delivery Time :
7 working days
Packaging Details :
OEM PE bag, carton box, wooden roll
Color :
Aqua, Pink, Violet, Customized
Outerjacket :
LSZH(CPR),PVC,UL PVC
Fiber core :
12 core, 24 core, 8 core, 48 core, MPO MTP to LC SC fiber optic breakout fanout cable
Fiber count :
OM4, OM3, Single mode, SM Bend Insenstive, SM/MM/OM3
3d testing :
yes
Cable diameter :
3mm for 12 strands, 3.0mm Micro Cable, 5.5mm for 24 strands, 3.0mm Optional
Description

MPO- MPO Patch Cable 12 core Fiber Cable MTP- MTP OM3 OM4 Multimode for Data centerc

MTP® connectors have answered the call for more bandwidth and more space efficiency. This MTP to MTP Multimode Fiber Optic Cable Assembly has many unique features that are only available when purchasing through Fibertronics.

Corning® OM4 Corning® ClearCurve® ultra-bendable, laser-optimized™ multimode optical fiber 50um OM4, Plenum (OFNP), Aqua, 3mm Round, Microdistribution cable. Aqua body MTP connector. (Jacketed Ribbon or Bare Cable is optional)

MPO- MPO Patch Cable 12 core Fiber Cable MTP- MTP OM3 OM4 Multimode for Data center

Performance:

Configuration Method A
Fiber Count 12 Fiber
Mode Multimode, OM4, 50/125
Type Female - Female
Length 3m

Reduced Insertion Loss by up to 50%
High Durability
High Temperature Stability
Good Exchangeability

Polarity Polarity A, Polarity B, Polarity C
IL(MTP/MPO) Standard ≤0.5 dB Ave ≤0.3dB
IL(MTP/MPO) Elite: ≤0.35dB Ave: ≤0.2dB
IL(LC/SC) Standard ≤0.25dB Low Loss : ≤0.15dB
RL SM:≥60dB MM: ≥20dB
Tester Brand EXFO & JGR
Repeatability ≤0.2dB
Interchangeability ≤0.2dB
Mating 1000 Times
Opterating Temperature -20℃ ~ +70℃
3D Interferometer Fiber Height: 1000nm~3500nm
Radius Long: 500mm min Radius Short: 50mm min Ferrule Height: 7.95mm min
MM Core Dip: <100nm


Test:

MPO- MPO Patch Cable 12 core Fiber Cable MTP- MTP OM3 OM4 Multimode for Data center
Features:

- Ulitize MPO/MTP connectors

- Inner: Ceramic Ferrule

- Available in Elite insertion loss and standarad insertion loss.

- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.

- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.

- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5

- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard

- Interface polished type has PC, UPC and APC

- Support use in attaching directly to 40/100G transceivers

- 100% factory tested, with test results included for each assembly

Application

- Metro

- CATV

- Passive fiber optic networks

- Builing communication center

- Bank Data center

- Communication center rooms
- FTTH (Fiber to The Home)

- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment

- Defense combat readiness

Packing:

MPO- MPO Patch Cable 12 core Fiber Cable MTP- MTP OM3 OM4 Multimode for Data center
