Specifications
Brand Name :
XDK
Model Number :
Box Splitter
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Supply Ability :
30000 units per month
Packaging Details :
regular packaging
Package Style: :
ABS Module
Configuration Type: :
1 X N, 2 X N
Fiber Type: :
Single Mode
Connector Type: :
SC/LC, FC/ST
Polishing Type: :
APC/UPC
Split Ratio: :
50/50
Operating Temperature: :
-20℃~+70℃
Storage Temperature: :
-40℃~+85℃
Description

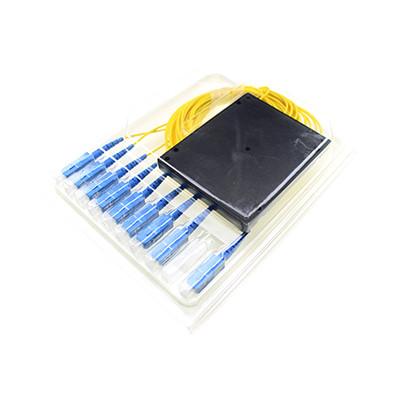

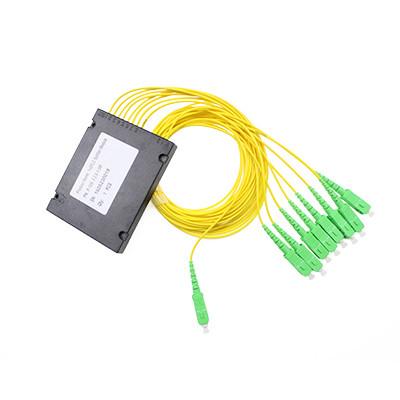

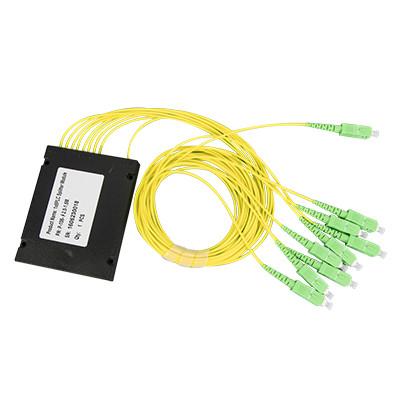

Customized ABC Box 1x8 PLC Splitter SC / LC , FC / ST For FTTH

Introduce

The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.

ABS Module PLC Features& Benefits:

  • Low Insertion Loss
  • High maximum power tolerance
  • 1x8 ABS PLC Splitter Box
  • Fiber Mode: Single-Mode Corning SMF-28e
  • 1 x Input Fibers
  • 8 x Output Fibers
  • Fiber jacketing ruggedized 2mm jacket
  • Length: 1.5-meter legs
  • Plug and Play Ready
  • Excellent Mechanical Stability
  • Provide technical support to Sales Department
  • Interact with Production Department to diagnose and solve technical issues
  • Telcordia GR-1221 and GR-1209

The fiber optic splitter is one of the most important passive devices in the optical fiber link, is optical fiber tandem device with many input terminals and many output terminals, especially applicable to a passive optical network (EPON.GPON.BPON.FTTX.FTTH etc.) to connect the MDF and the terminal equipment and to achieve the branching of the optical signal

Company information:

Founded 1998, XDK group is headquartered in huizhou with branches in Hongkong, Shenzhen, Germany, United States and Vietnam. We are committed to popularize fiber optic communications technologies and actively join our partners to promote sustainable development through our own R&D department to contribute to local communities, and enrich life through communication.
