1U 19 Rack Mount 1x32 Fiber Splitter SC/APC Singlemode For FTTH
1U 19 Rack Mount 1x32 Fiber Splitter SC/APC Singlemode For FTTH
1U 19 Rack Mount 1x32 Fiber Splitter SC/APC Singlemode For FTTH
1U 19 Rack Mount 1x32 Fiber Splitter SC/APC Singlemode For FTTH
1U 19 Rack Mount 1x32 Fiber Splitter SC/APC Singlemode For FTTH
1U 19 Rack Mount 1x32 Fiber Splitter SC/APC Singlemode For FTTH
Specifications
Brand Name :
XDK
Model Number :
XDK-PLC-B
Certification :
ISO9001, ISO14001, UL, CPR
Place of Origin :
China, Vietnam
MOQ :
1 or negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 units per month
Delivery Time :
3-5 working days
Type:: :
PLC Splitter with LGX Cassette
Connector Type:: :
SC/APC
Capacity:: :
1×32
Material :
Aluminum or Steel
Fiber Dimension: :
0.9mm
Insertion Loss:: :
International Standard Or Elite Optional
Fully Compliant:: :
IEC-61754, TIA/EIA-604, GR326, RoHS
Customized:: :
Available
Description
1×32 Fiber PLC Splitter, 1U Rack Mount Type, Singlemode
XDK supply 1x32 PLC Fiber Splitter, 1U 19" Rack Mount, SC/APC, Singlemode for FTTH

PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. FS.COM provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 1U Rack Mount type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.

Product Specification
Package Style Rack Mount Configuration Type 1x32
Fiber Type Singlemode G.657A1 Connector Type SC/APC
Insertion Loss ≤17.0dB Return Loss ≥55dB
Loss Uniformity ≤1.5dB Directivity ≥55dB
Polarization Dependent Loss(PDL) ≤0.3dB Temperature Dependent Loss ≤0.5dB
Wavelength Dependent Loss ≤0.5dB Operating Bandwidth 1260~1650nm
Split Ratio 50/50 Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F) Dimensions (HxWxD) 1.73"x19.00"x9.84" (44x482.6x250mm)

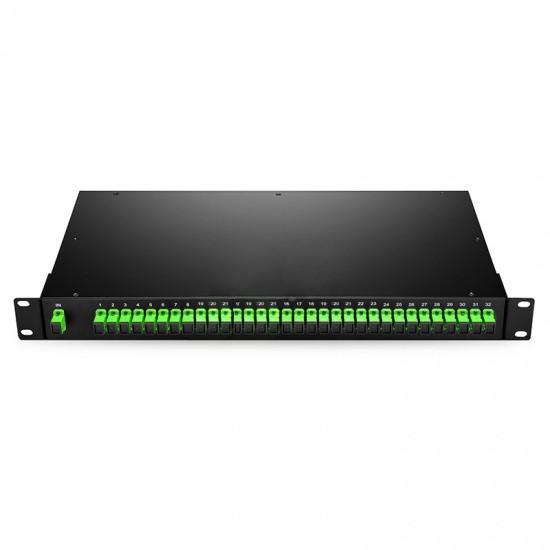

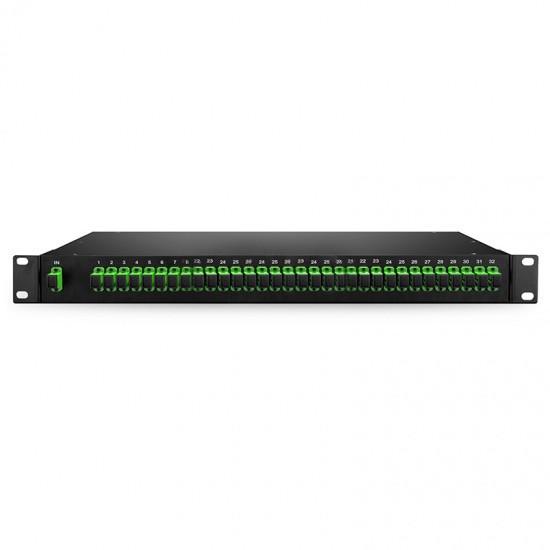

1U Rack Mount Type PLC Splitter
  • 1x32 PLC splitter, SC/APC connector
  • Good channel-to-channel uniformity
  • High polarization extinction ratio

1U 19

Perfect Details of 1U Rack Mount Type PLC Splitter

Simple Mounting and Easy Connection

Loaded with a pigtailed ABS module, can be easily mounted in cabinet for uniform optical signal distribution

1U 19

1U 19
