PLC Fiber Optic Spliter 1x16 1U 19 Rack Mount SC/APC Singlemode For FTTH
PLC Fiber Optic Spliter 1x16 1U 19 Rack Mount SC/APC Singlemode For FTTH
PLC Fiber Optic Spliter 1x16 1U 19 Rack Mount SC/APC Singlemode For FTTH
PLC Fiber Optic Spliter 1x16 1U 19 Rack Mount SC/APC Singlemode For FTTH
Specifications
Brand Name :
XDK
Model Number :
XDK-PLC-B
Certification :
ISO9001, ISO14001, UL, CPR
Place of Origin :
China, Vietnam
MOQ :
1 or negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 units per month
Delivery Time :
3-5 working days
Type:: :
PLC Splitter with LGX Cassette
Fiber type :
G657A1 or customer specified
Adaptor Type :
SC LC FC or Customer specified
Material :
Aluminum or Steel
Size :
19 inch
Capacity :
Max. 1: 32 or 2: 32
Colour :
Black or White
Dimension (L*W*D) :
L483 * W44 * D220
Description
XDK supply 1x16 PLC Fiber Splitter, 1U 19" Rack Mount, SC/APC, Singlemode for FTTH
1×16 Fiber PLC Splitter, 1U Rack Mount Type, Singlemode
PLC Fiber Optic Spliter 1x16 1U 19
Product Specification
Package Style Rack Mount Configuration Type 1x16
Fiber Type Singlemode G.657A1 Connector Type SC/APC
Insertion Loss ≤13.7dB Return Loss ≥55dB
Loss Uniformity ≤1.2dB Directivity ≥55dB
Polarization Dependent Loss(PDL) ≤0.3dB Temperature Dependent Loss ≤0.5dB
Wavelength Dependent Loss ≤0.5dB Operating Bandwidth 1260~1650nm
Split Ratio 50/50 Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F) Dimensions (HxWxD) 1.73"x19.00"x9.84" (44x482.6x250mm)

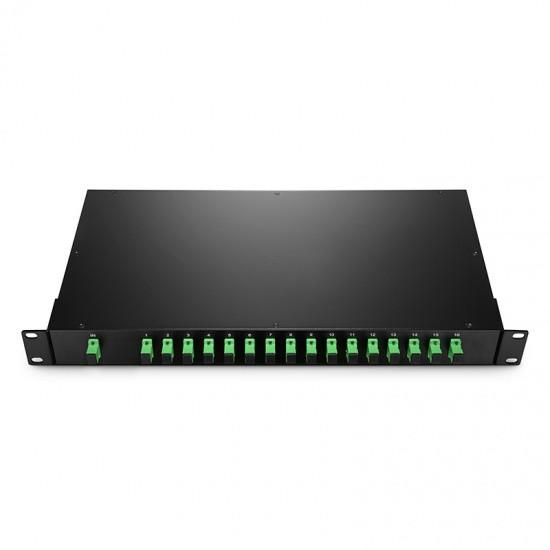

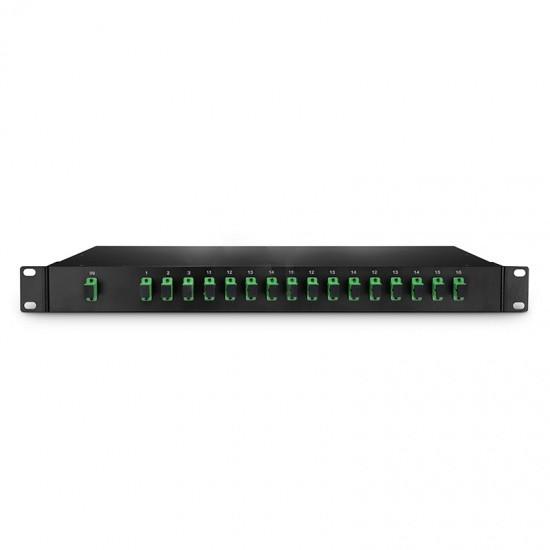

1U Rack Mount Type PLC Splitter
  • 1x16 PLC splitter, SC/APC connector
  • Good channel-to-channel uniformity
  • High polarization extinction ratio

PLC Fiber Optic Spliter 1x16 1U 19

PLC Fiber Optic Spliter 1x16 1U 19

Perfect Details of 1U Rack Mount Type PLC Splitter

Simple Mounting and Easy Connection

Loaded with a pigtailed ABS module, can be easily mounted in cabinet for uniform optical signal distribution

PLC Fiber Optic Spliter 1x16 1U 19

PLC Fiber Optic Spliter 1x16 1U 19
