Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter
Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter
Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter
Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter
Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter
Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter
Specifications
Brand Name :
XDK
Model Number :
XDK-PLC
Certification :
ISO9001, ISO14001, UL, CPR
Place of Origin :
China, Vietnam
MOQ :
1 or negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 units per month
Delivery Time :
3-7 working days
Packaging Details :
40*4*4mm, to 100*20*6
Type: :
PLC Splitter
Connector type: :
SC/APC
Capacity: :
1×4
Fiber cable length :
1.5m or specify
fiber dimensions: :
0.9mm 2.0mm 3.0mm
Insertion Loss: :
International standard or elite optional
fully compliant: :
IEC-61754, TIA/EIA-604, GR326, RoHS
Customized: :
Available
Description
XDK supply 1x2 mini PLC Fiber Splitter, Micro fiber optic splitter Module, 900μm, SC/APC, Singlemode

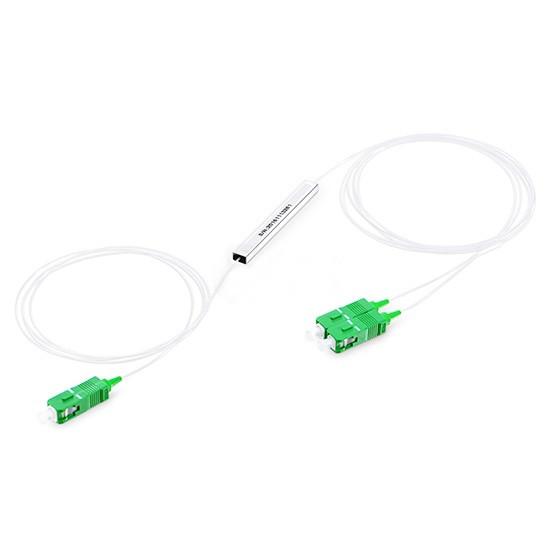

1x2 Blockless Fiber PLC Splitter, Singlemode, 900μm Fiber, SC/APC Connector

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
Product Specification
Package Style Mini Module Configuration Type 1x2
Fiber Type Singlemode G.657A1 Connector Type SC/APC
Input/Output Fiber Diameter 900μm Input/Output Fiber Length 1.5m
Insertion Loss ≤4.0dB Return Loss ≥50dB
Loss Uniformity ≤0.4dB Directivity ≥55dB
Polarization Dependent Loss ≤0.2dB Temperature Dependent Loss ≤0.5dB
Wavelength Dependent Loss ≤0.3dB Operating Bandwidth 1260~1650nm
Split Ratio 50/50 Steel Tube Dimensions (HxWxD) 0.16"x1.97"x0.28" (4x50x7mm)
Operating Temperature -20 to 70°C (-4 to 158°F) Storage Temperature -40 to 85°C (-40 to 185°F)

1x2 Blockless PLC Splitter in FTTH Solution

Blockless PLC splitter can integrate multiple functions onto a single chip to significantly reduce size and cost. It is widely used in PON networks to realize optical signal power management. The following figure shows 1X2 blockless PLC fiber splitter interconnected with GPON OLT and ONT through fiber optic splice closure.

Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter

1X2 PLC splitter, uniform distribution of optical signalBlockless PLC Splitter

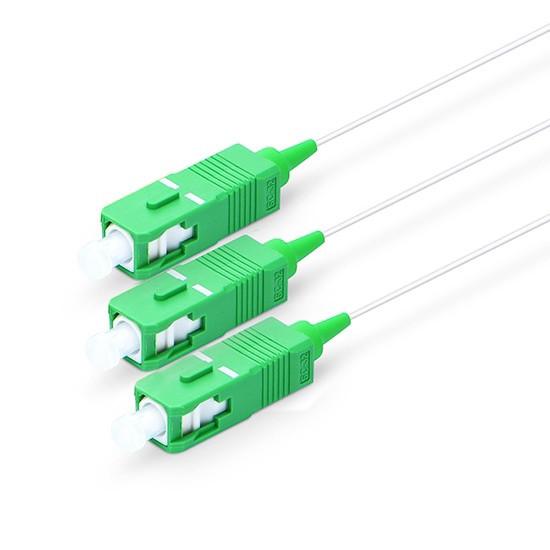

  • Small size, with the splitter type of mini module, SC/APC connector
  • Ideal for EPON, GPON, FTTH/FTTX network

Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter

Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter

Perfect Details of 1X2 Blockless PLC Splitter

Simple and Easy Connection

Blockless PLC splitter can be easily installed in fiber splice closure, optical distribution box for space saving and no need to splice.

Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter
