8 - 24 Core LSZH Jacket MPO Patch Cord With Male And Female Connector
8 - 24 Core LSZH Jacket MPO Patch Cord With Male And Female Connector
8 - 24 Core LSZH Jacket MPO Patch Cord With Male And Female Connector
8 - 24 Core LSZH Jacket MPO Patch Cord With Male And Female Connector
8 - 24 Core LSZH Jacket MPO Patch Cord With Male And Female Connector
8 - 24 Core LSZH Jacket MPO Patch Cord With Male And Female Connector
Specifications
Brand Name :
XDK
Model Number :
MPO Hydra Cable
Certification :
CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T D/P D/A
Supply Ability :
5million termination per month
Delivery Time :
7 working days
Packaging Details :
OEM PE bag, carton box, wooden roll
MPO / MTP Connector :
Male/Female
Outer Jacket :
LSZH、OFNP、OFNR、PVC
Cable Diameter :
3.0mm,2.0mm
Connector Type :
MPO&MTP
Fiber countl(optional) :
8, 12, 16, 24 Core
Fiber Mode :
G652D, G657A, OM1, OM2, OM3, OM4
Description

8-24 CORE LSZH MPO Hydra Patch Cord with Male and Female Connector used in Data Center and Cross Connect

Descripton

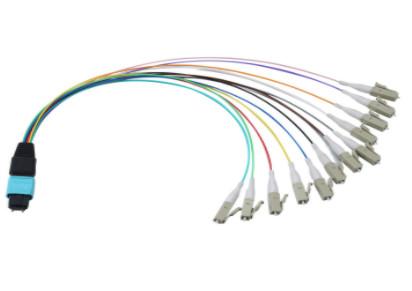

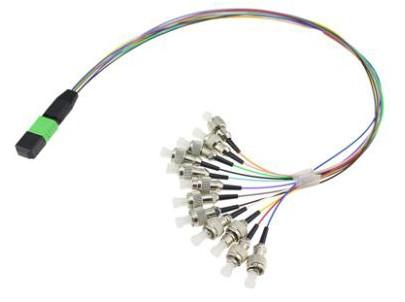

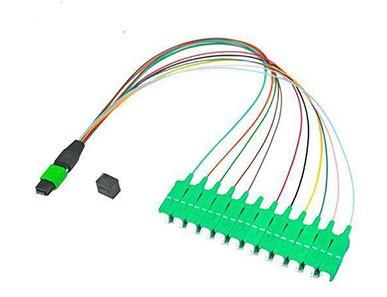

MPO/MTP Hydra patchcords pre-terminated cable refers to the use of MPO single head 12 core or 24 connector at the end of the cable, and the other end of the cable is using the LC/SC conector,MPO/MTP hydra patchcords is deployed inside plug and play cassette modules.this solution is a 12-colored 0.9mm cable utilizing a MPO/MTP connector on one end and generic connector (such as LC,SC edc.).they are available for purchase as a bundle with iphotonics's plug and play modules.

Features

  1. 8,12 and 24 fiber connector terminations and assemblies
  2. Insertion loss type available in Standard, Elite / Low Loss
  3. MPO / MTP connector type available in Male, Female, Male to Female
  4. MPO / MTP assembled with 0.9mm cable to single-fiber connectors
  5. Improve and simplify fiber routing, decrease fiber management space

Specification

Connector Type A : MPO / MTP B : LC/SC
Fiber Type SM(9/125um) MM(50/125um,62.5/125um)
Polish UPC APC UPC
Insertion Loss MPO / MTP : Low Loss≤0.35dB, Standard Loss≤0.60dB LC/SC/FC/ST : Low Loss≤0.15dB, Standard Loss≤0.30dB
Return Loss ≥50dB ≥60dB ≥20dB
3D(MPO/MTP)

Fiber Height : 1000~3500nm

Radius Long: 500mm min

Radius Short: 50mm min

Max Fiber Differential < 400nm

Max Fiber Adj Diff < 200nm

Ferrule Height:7.95mm min

MM Core Dip:<100nm
3D(LC/SC/FC/ST)

Radius of Curvature :10-25mm(PC/UPC) ,5-12mm(APC)

Apex offset : 0-50um
High fiber : ±100 nm

Angle:8±0.2°(APC)
Repeatability 1000 times typical change value ≤ 0.20dB
Interchangeability ≤0.20dB
Tester Brand EXFO & JGR
MPO / MTP Connector Male / female
Jacket Material(optional) LSZH,OFNP,OFNR,PVC
Jacket color Aqua (OM3, OM4), Erica Violet (OM4), Yellow (OS1/OS2, G.657A1), Orange (OM1, OM2)
Cable Diamete(Branch) 2.0, 3.0mm
Fiber countl(optional) 8, 12, 16, 24 Core
Fiber Moder(optional) G652D, G657A, OM1, OM2, OM3, OM4
Operating Temperature -20 ~ +70 ℃
Storage Temperature -40 ~ +85 ℃

Application

  1. Data center system networks
  2. High-Density Cross Connect
  3. Inside plug and play fiber cassette module.
  4. High Density Fiber Management.
