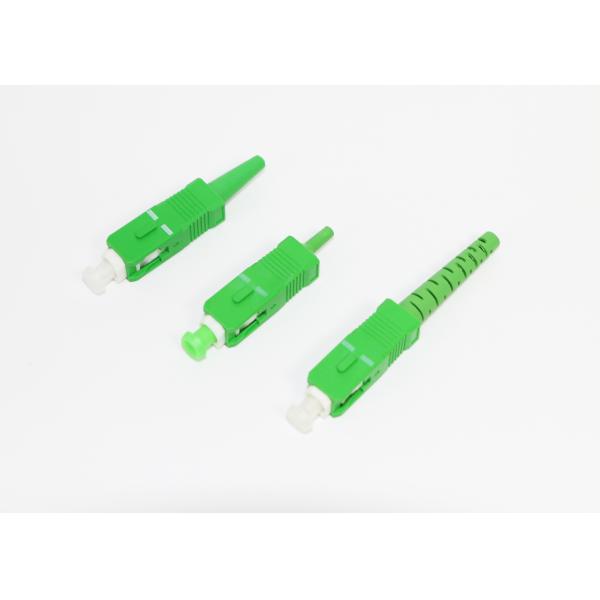

IEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
IEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
IEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
IEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
IEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
IEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
IEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
IEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
IEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
IEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
Specifications
Brand Name :
XDK
Model Number :
SC Connector
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Ferrule end-face :
UPC APC
Outsheath Color :
Green Blue or Customized
Fiber count :
1 core
Cable Diameters :
0.9mm/2.0mm/3.0mm
Outsheath Material :
PVC PE or LSZH
Application :
CATV, FTTH, Network
Description
SC-APC/UPC Sc Upc Apc Connector Cable Fiber Optics Plastic Quick Cable Waterproof Connectors
Description
The optical fiber connector is a device for detachable connection between the optical fiber and the optical fiber. It precisely connects the two end faces of the optical fiber so that the light energy output by the transmitting optical fiber can be coupled to the receiving optical fiber to the maximum extent, and the Its intervention in the optical link minimizes the impact on the system, which is the basic requirement of optical fiber connectors. To a certain extent, the optical fiber connector affects the reliability and performance of the optical transmission system.
IEC-61754 Waterproof SC - APC/UPC Fiber Optic ConnectorIEC-61754 Waterproof SC - APC/UPC Fiber Optic ConnectorIEC-61754 Waterproof SC - APC/UPC Fiber Optic Connector
Features:

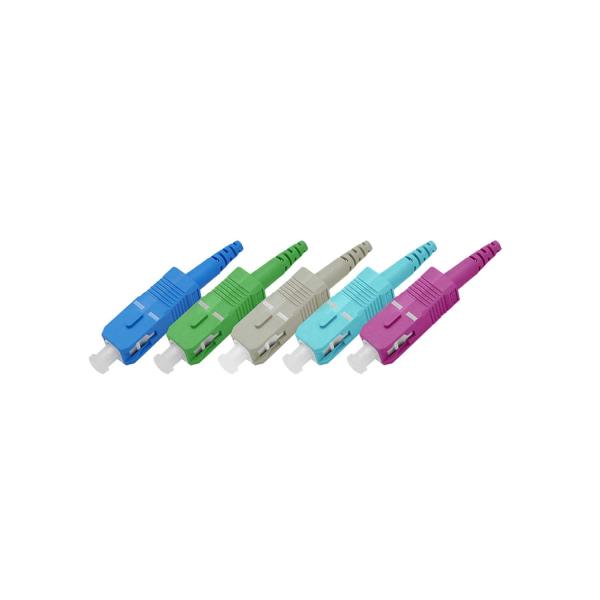

1. Avariety of models and color options for tail sleeves
2. Using precision ceramic ferrules to ensure excellent insertion loss and return loss
3. The advanced grinding process guarantees 100% pass the 3D test
4. Various fiber options of G652D, G657A, G657B3, OM1, OM2, OM3, OM4 are available
5. Provide SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, D4 and other options
Technical Parameter:
Specifications
Scope standard
Range value
Insertion loss
PC,UPC,APC
Typical:≤0.2dB
Max:≤0.3dB
Return loss
PC
≥45dB
UPC
≥55dB
APC
≥65dB
Durability
500 times
Operation Temperature
-40℃～+85℃
Storage Temperature
-40℃～+85℃

Ordering Information:
Model
Description
MOQ(pcs)
SC-APC-0.9
SC APC Single model Simplex Connector, Boot Diameter 0.9mm
200
SC-APC-2.0
SC APC Single model Simplex Connector, Boot Diameter 2.0mm
200
SC-APC-3.0
SC APC Single model Simplex Connector, Boot Diameter 3.0mm
200
SC-UPC-0.9
SC UPC Single model Simplex Connector, Boot Diameter 0.9mm
200
SC-UPC-2.0
SC UPC Single model Simplex Connector, Boot Diameter 2.0mm
200
SC-UPC-3.0
SC UPC Single model Simplex Connector, Boot Diameter 3.0mm
200

Application:

1. Telecommunications；mobile network construction;
2. Local Area Network (LAN)
3. Fiber to the home (FTTH)
4. Optical patch panels
5. Testing Instruments
6. CATV
7. Optical active terminal connection;
8. Data center network construction

FAQ

Q1. What about the price?
Re: We usually quote within 12 hours after we confirm the technical data of your products.
Q2. What's the payment method?
Re: We accept L/C, T/T, Western Union, MoneyGram, PayPal etc.

Q3. What’s your terms of payment?
Re: 30% in advance, and 70% before shipment
Q4. How to ship the items to me?
Re: Courier(DHL,TNT,FEDEX,UPS,EMS), Airfreight, Ocean Ship are available.
Q5. How long is your delivery time?
Re: The general delivery time is 5-7 days after order is confirmed, it depends on the order quantity.
Q6. Can you send me a free sample?
Re: Yes, we are willing to send free sample, if you would like to pay the shipping costs.
Q7. Do you accept OEM or ODM?
Re: Yes, we're factory, any your customized requirements we can do our best to help you realize.
