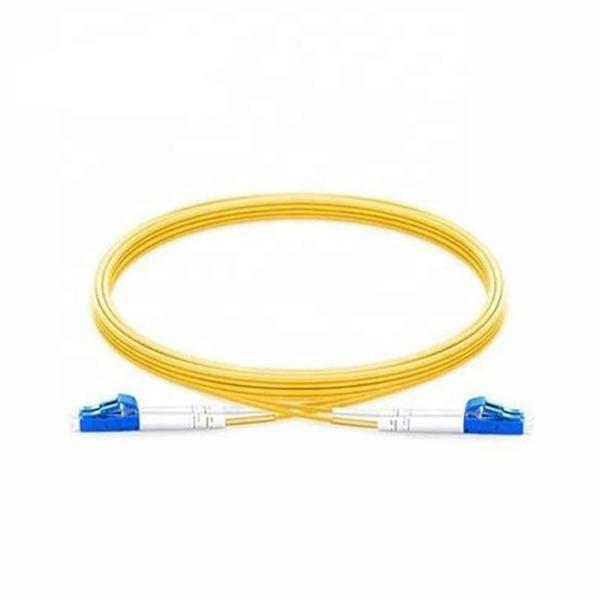

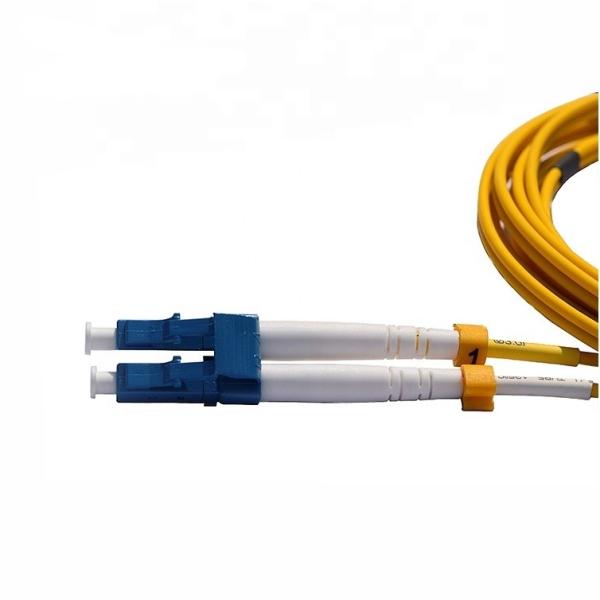

LC/UPC - LC/UPC Duplex Patchcord , Armored Fiber Jumper For FTTx Solutions
LC/UPC - LC/UPC Duplex Patchcord , Armored Fiber Jumper For FTTx Solutions
LC/UPC - LC/UPC Duplex Patchcord , Armored Fiber Jumper For FTTx Solutions
LC/UPC - LC/UPC Duplex Patchcord , Armored Fiber Jumper For FTTx Solutions
Specifications
Brand Name :
XDK
Model Number :
LC Patch Cord
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 million termination/month
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Cable Diameter :
0.9/2.0/3.0mm
Jacket Material :
LSZH, PVC( customized)
Color :
Blue or Customized
Length :
1m 3m 5m or Customized
Application :
Telecom Network
Use :
FTTx Solutions
Description
LC/UPC-LC/UPC Duplex Patchcord Wholesale Jumper Cable Armored Fiber Optic Jumper For FTTx Solutions
Description
Fiber optic patch cord is suitable for enterprise network, telecom carrier, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant, and cable is optically tested for insertion loss to ensure high quality. The Optial cabe can be OFNR and OFNP option, UL listed.
LC/UPC - LC/UPC Duplex Patchcord , Armored Fiber Jumper For FTTx SolutionsLC/UPC - LC/UPC Duplex Patchcord , Armored Fiber Jumper For FTTx Solutions
Feature
1. The connectors are comply with IEC standards;
2. Different size & color boot option;
3. Low insertion loss; High return loss;
4. 100% interferometer measurement;
5. Various fiber cable option; G652D, G657A, G657B3, OM1, OM2, OM3, OM4 option;
6. SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, D4 available.
Parameters
Item
SM(Single Mode)
MM(Multimode)
Fiber Cable Type
G652/G655/G657
OM1
OM2/OM3/OM4
Fiber Diameter(um)
9/125
62.5/125
50/125
Cable OD(mm)
0.9/1.6/1.8/2.0/2.4/3.0
Connector Type
SC
Endface Type
APC
PC
UPC
UPC
Typical Insertion Loss(dB)
<0.2
<0.2
<0.1
<0.1
Return Loss(dB)
>60
>45
-
-
Insert-pull Test(dB)
<0.3
<0.2
<0.15
-
Interchangeability(dB)
<0.15
<0.1
<0.1
-
Anti-tensile Force(N)
-
>70
-
-
Temperature Range(℃)
-40~+80
Fiber Cable Characteristics
MM
G.651
A1a.1:50/125
Color:Orange or Other
A1a.2:OM3
Color:Aqua or Other
A1a.3:OM4
Color:Magenta or Other
A1b:62.5/125
Color:Orange or Other
SM
G.652D
Color:Yellow or Other
G.657(A1,A2,A3)
Color:Green or Other
Jacket Material
PVC,LSZH or Other

Application

1. Metro；
2. Active device termination；
3. Test equipment；
4. Telecommunication networks；
5. Local Area Networks (LANs)；
6. Data processing networks;
7. Premise installations；
8. Wide Area Networks (WANs)；
9. CATV.
