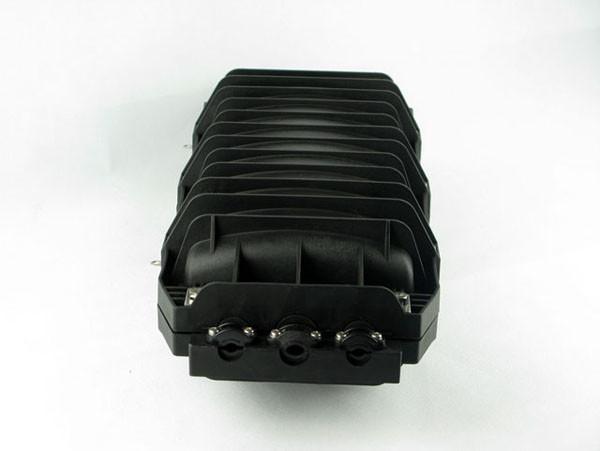

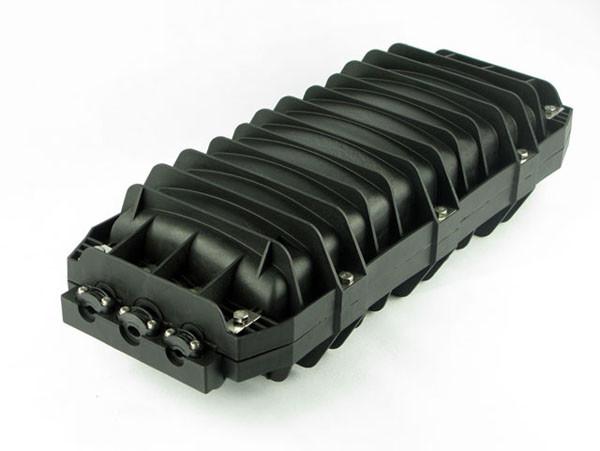

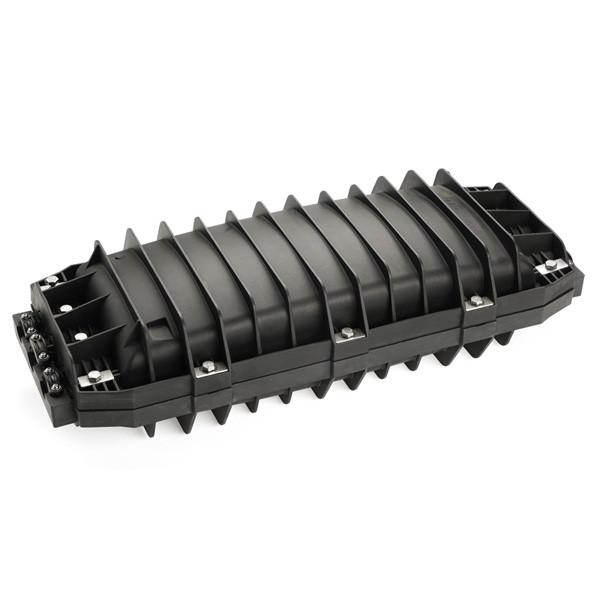

Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box
Specifications
Brand Name :
XDK
Model Number :
Splice Closure
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Cable Diameter :
Max. 35mm
Max.Capacity (bunchy fiber) :
Max 96 fibers

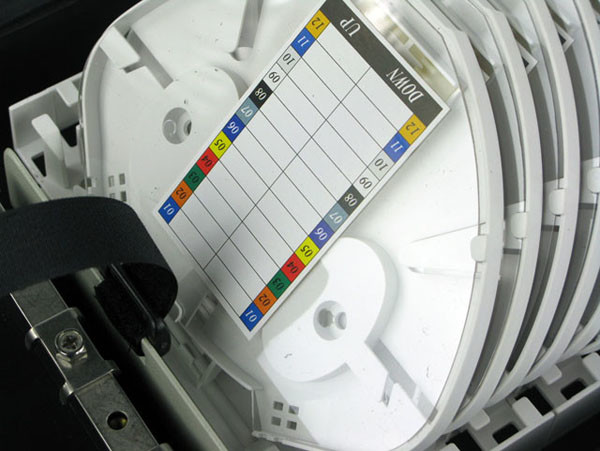

Core capacity per tray :
12 cores and 24 cores
Dimension :
L:280mm, W:200mm, H:90mm
Suitable Dia of cable :
8-20mm
Color :
Black
Description

Inline Ftth Drop Cable Splice Closure, black Color Fiber Optic Distribution Box for FTTH Distribution

Description

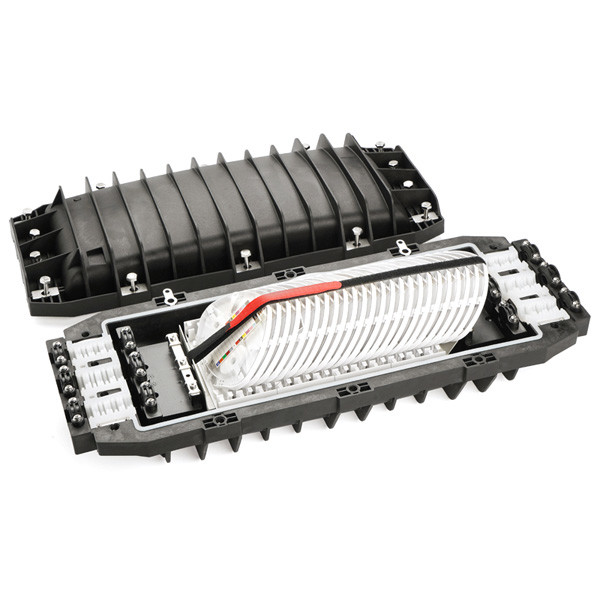

Fiber Optic Splice Closure is a inline type with big capacity, adopt vulcanized rubber as sealing component, helical and extrusion mechanical sealing, it is suitable for different methods of branch cable connection, including the branch of uncut cable. It is used for aerial,pole-mounted,wall-mounted and buried application. The closure has goods sealing performance, convenient to operate and wide range of applications.


Inline FTTH Drop Cable Splice Closure / Fiber Optic Distribution BoxInline FTTH Drop Cable Splice Closure / Fiber Optic Distribution BoxInline FTTH Drop Cable Splice Closure / Fiber Optic Distribution Box

Feature

Mechanical seal: Excellent sealing performance,reusable. Protection grade is IP 68.

Installation Method: aerial,pipe-lined,manhole

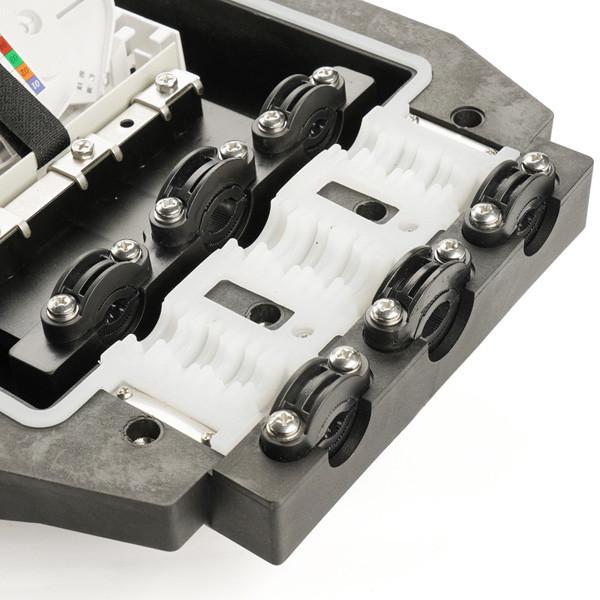

6 regular cable ports,applicable to cable direct transmission and branching connection with big capacity.

It is easy in operation. Inner and external push button can insure good sealing,requirements of cable torque , stretching, pressure, bending.

10~20 sealing requirements can be achieved for four cable ports and 16~25 can be achieved for two cable ports with excellent re-package performance.

Specification

Size(mm)H×D 648×253.8×158 Max Capacity(single core) 288
Weight(kg) 6.5~8.5 Sealing type Mechanical
Cable entrances 6(3 in and 3 out) Capacity of one tray 12
Suitable cable diameter (mm)

Center entrance 16~25

Other entrance 10~20

 Maximum number of trays 24
environmental temperature -40℃~+55℃ Insulation resistance ≥2×104MΩ
Sealing performance After the closure was sealed, the atmospheric pressure in it is 100kPa±5kPa, immersed it into the water and observing it for 15min, there is no air bubble. And there is no change of barometer after observing it for 24 hours. Anti-voltage strength non-puncture, no arc-over under the effect of 15kvDC/1min.
Encapsulation After three times of encapsulation according to the general instruction, it can still be up to the sealing performance standard

Application

1. Sutable for bunchy fibers

2. Aerial ,wall-mounting

3. FTTH optical fiber distribution

FAQ

1. Why choose US?

(1) Professional manufacturer: Low MOQ, free samples are available.

(2) Quality assurance:Stable high quality.

(3) Customers solutions:Quick.

(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?

Yes, we accept them.

3. Can you print our LOGO?

Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?

We accept all shipment , such as Delivery,ocean transport, land transport , airport transport.

5. What's the Payment?

We accept all payments , such as TT,Western Union, Paypal, Bank Transfer....

Product tags

fiber optic splice boxes

,

fibre optic splice box

,

fiber optic splice box
