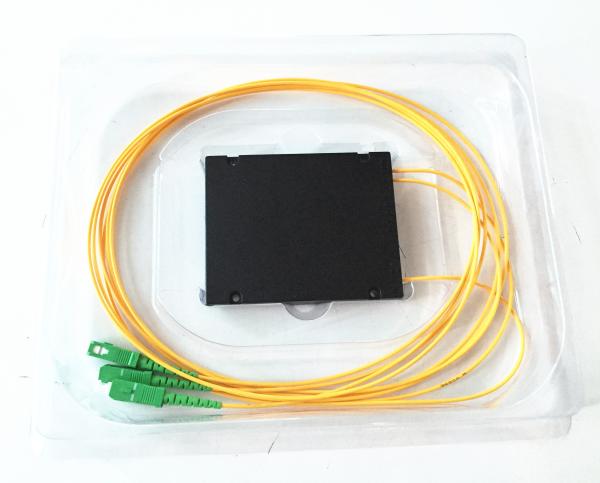

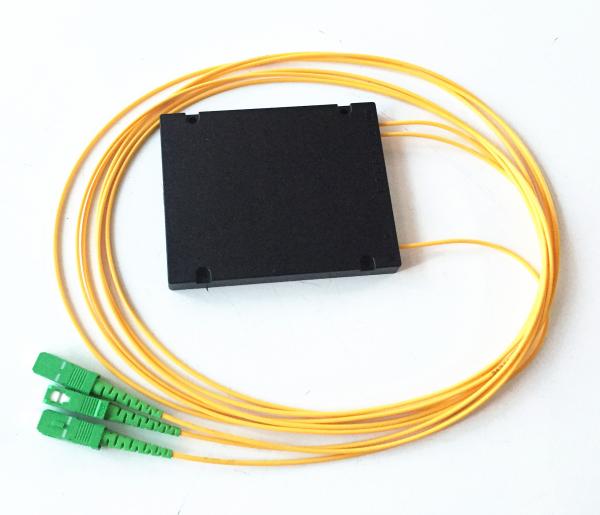

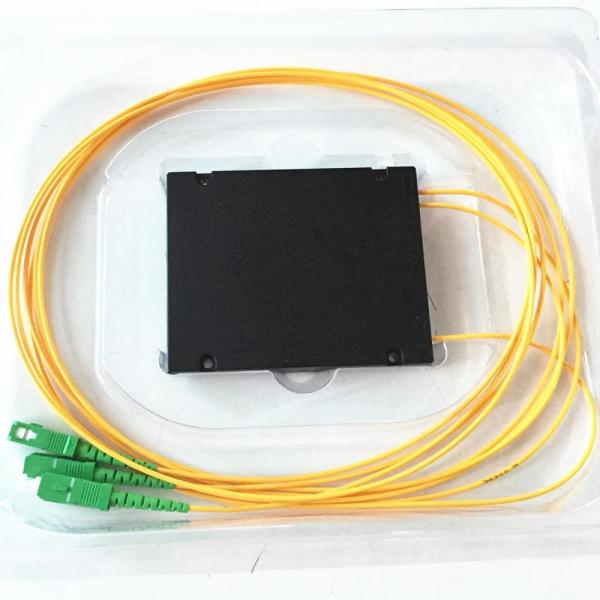

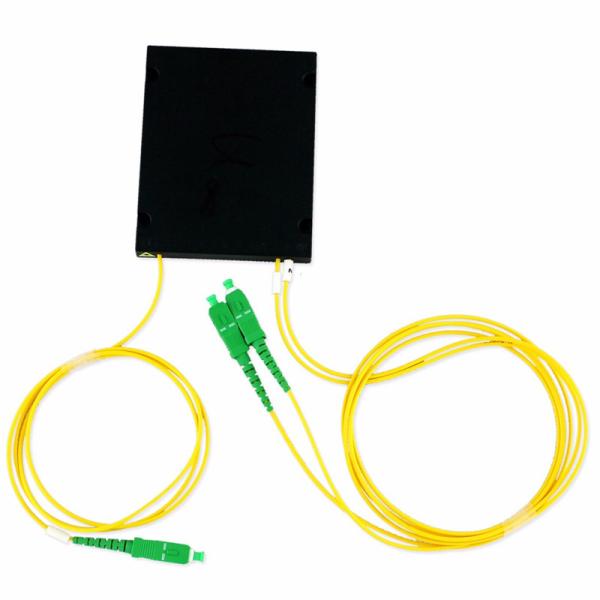

1x2 1x4 1x8 1x16 1x32 SC APC ABS PLC Splitter 2.0 3.0 LSZH
1x2 1x4 1x8 1x16 1x32 SC APC ABS PLC Splitter 2.0 3.0 LSZH
1x2 1x4 1x8 1x16 1x32 SC APC ABS PLC Splitter 2.0 3.0 LSZH
1x2 1x4 1x8 1x16 1x32 SC APC ABS PLC Splitter 2.0 3.0 LSZH
1x2 1x4 1x8 1x16 1x32 SC APC ABS PLC Splitter 2.0 3.0 LSZH
1x2 1x4 1x8 1x16 1x32 SC APC ABS PLC Splitter 2.0 3.0 LSZH
1x2 1x4 1x8 1x16 1x32 SC APC ABS PLC Splitter 2.0 3.0 LSZH
1x2 1x4 1x8 1x16 1x32 SC APC ABS PLC Splitter 2.0 3.0 LSZH
Specifications
Brand Name :
XDK
Model Number :
ABS 1x2 SA
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Fiber Type :
G657A1
Material :
PVC
Length :
1M, 2M, Customized
Connector :
SC APC
Wavelength :
1310nm/1490nm/1550nm
Description

1x2 1x4 1x8 1x16 1x32 Fiber Optic SC APC ABS Box PLC Splitter 2.0 3.0 LSZH

Specifications (1XN):

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating wavelength 1260 ~1650nm
Insertion Loss (dB)(P/S Grade) 3.6/4.0 7.2/7.4 10.2/10.5 13.5/13.7 16.2/16.7 20.5/21 23.8/24.5
uniformity (dB) 0.4 0.6 0.8 1.0 1.2 1.8 2.0
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.5
Return Loss (dB) ≥55
Directivity (dB) ≥55
TDL(dB) 0.5
Operating/Storage Temperature (℃) -40~85

Specifications (2XN):

Parameters 2×2 2×4 2×8 2×16 2×32 2×64 2×128
Operating wavelength 1260 ~1650nm
Insertion Loss (dB)(P/S Grade) 3.8/4.2 7.5/7.8 10.7/11 14/14.2 17/17.5 21/21.5 25/25.5
uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.0 2.5
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.4
Return Loss (dB) ≥55
Directivity (dB) ≥55
TDL (dB) 0.5
Operating/Storage Temperature (℃) -40~85
Note: All the data above does not include connector
