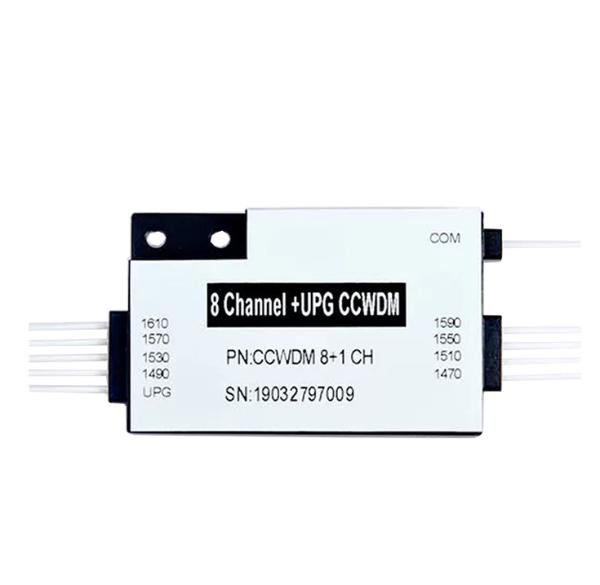

High Channel Isolation Compact Mini WDM Module , Cwdm Mux Demux Module
High Channel Isolation Compact Mini WDM Module , Cwdm Mux Demux Module
High Channel Isolation Compact Mini WDM Module , Cwdm Mux Demux Module
High Channel Isolation Compact Mini WDM Module , Cwdm Mux Demux Module
Specifications
Brand Name :
XDK
Model Number :
WDM Device
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
regular packaging
Channel Count :
4ch
Channel Center Wavelength :
1470/1490/1510/1530 mm
Polarization Mode Dispersion :
0.2 ps
Polarization Dependent Loss :
0.2 dB
Channel Uniformity :
0.2 dB
Use :
FTTx
Description

High Channel Isolation Compact Mini Wdm Module Cwdm Mux Demux 1 4 Cwdm Multiplexer

Description

1×4 Compact CWDM Demux module, 1470nm Start Wavelength, 0.9mm loose tube without connector, Fiber length: 1.0m, Package Dimension : 44×25×6mm.

Specification

Parameters Unit Specifications
Channel Count Ch 4
Channel Center Wavelength nm 1470/1490/1510/1530
Channel Passband Min nm ITU±6.5
Insertion Loss Max dB 0.8
Isolation Adjacent Channel Min dB 30
Non-Adjacent Channel Min dB 40
Channel Uniformity @23℃ Max dB 0.80
Passband Ripple Max dB 0.30
Polarization Dependent Loss Max dB 0.20
Directivity Min dB 50
Return Loss Min dB 50
Polarization Mode Dispersion Max ps 0.20
Power Handling Max mW 300
Tensile Load Max N 5
Pigtail Type Com port 0.9mm black loose tube
Others port 0.9mm white loose tube
Connector Type None
Fiber Type G657A1
Fiber length m ≥1.0
Operating Temperature °C -5~70
Storage Temperature °C -40~ 85
Package Dimension mm

(L) 44×(W)25×(H)6

FAQ

Q1. What about the price?
Re: We usually quote within 12 hours after we confirm the technical data of your products.

Q2. What's the payment method?
Re: We accept L/C, T/T, Western Union, MoneyGram, PayPal etc.

Q3. What’s your terms of payment?
Re: 30% in advance, and 70% before shipment

Q4. How to ship the items to me?
Re: Courier(DHL,TNT,FEDEX,UPS,EMS), Airfreight, Ocean Ship are available.

Q5. How long is your delivery time?
Re: The general delivery time is 5-7 days after order is confirmed, it depends on the order quantity.

Q6. Can you send me a free sample?
Re: Yes, we are willing to send free sample, if you would like to pay the shipping costs.

Q7. Do you accept OEM or ODM?
Re: Yes, we're factory, any your customized requirements we can do our best to help you realize.
