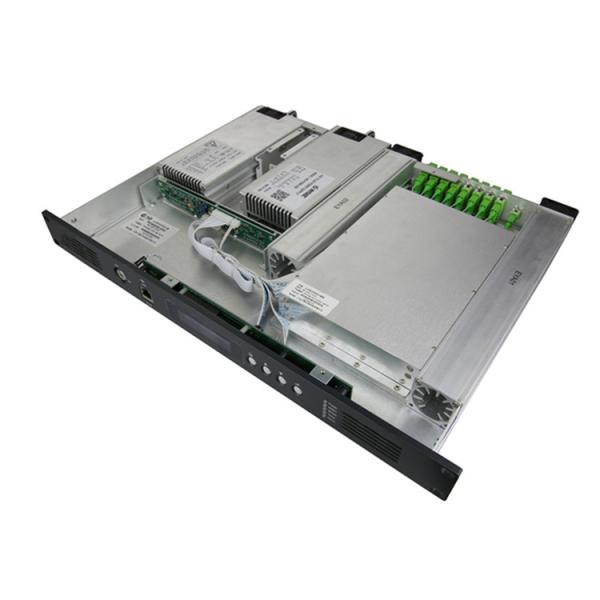

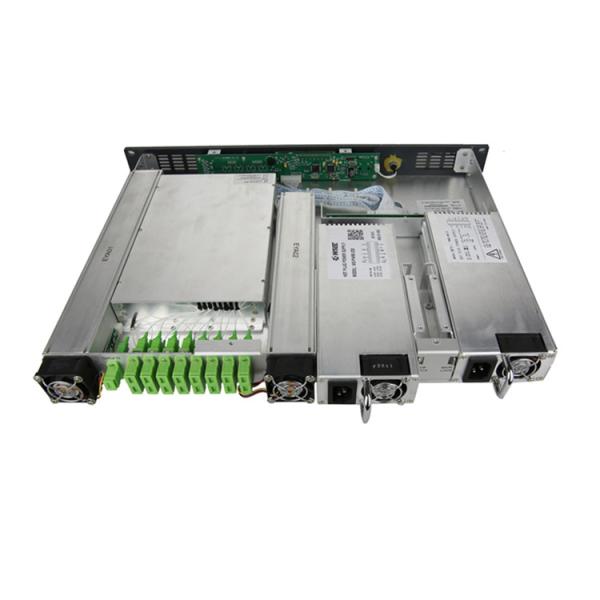

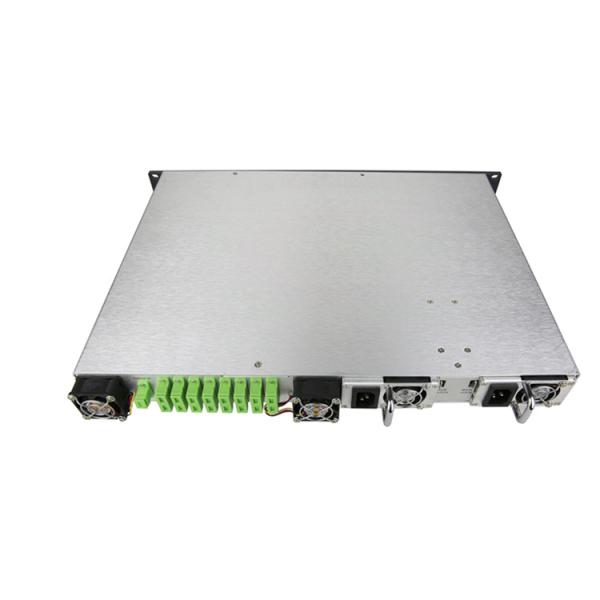

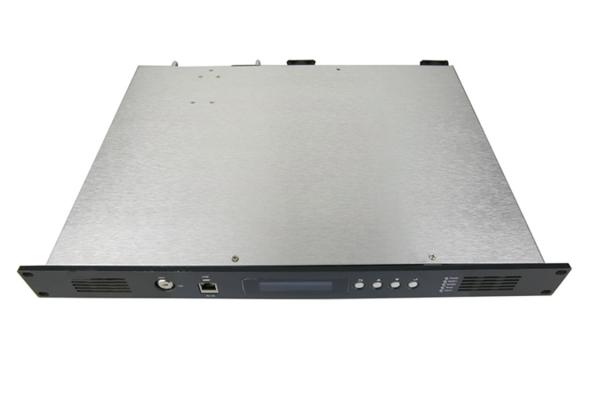

1550 Nm 16~35 DBm 8 Ports Fiber Optic Signal EDFA Amplifier WDM

Description

Optical amplifier is an significant device deployed for optical communication and laser physics. No need for converting optical signals into electrical signals first, optical amplifier can directly amplify the optical signals. It is considered to be a laser without optical cavity or with suppressed feedback from cavity. Optical amplifiers are often installed at places where optical signals are weak and need to be enhanced. This ensures the stable transmission of optical signals in the rest cables. Thus, we should attach greater importance to optical amplifier. And this article will guide you to know the secrets of optical amplifier.

Performance characteristic

1 Adopts the world top-class pump laser and active optic fiber.
2 Perfect APC,ACC,ATC control,excellent design in ventilation and heat dissipation to ensure long life and work stability of pump laser.
3 1 U/2 U/3 U 19”standard rack,max output port could reach 256 outputs.
4 Optional 500~5000 m W(27~43 dB m).
5 With low noise figure,entire unit adopts twin-stage amplification, Pre-amplifier adopts low noise figure EDFA,output cascade adopts
6 High power EYDFA,when input optical power pin=0dBm,noise figure Is Type ≤ 4.5 dB, Max ≤ 5.0 dB.
7 The laser will switch off automatically if optical power is missing, which offer security protection for the laser.
8 The built-in light echo detection, avoid damage jump stitches.
9 Has the safety and reliability of the telecommunication level and the network management, high quality, high reliability and
excellent price performance ratio, is the ideal choice of the system integrator and system operators.

Specification
