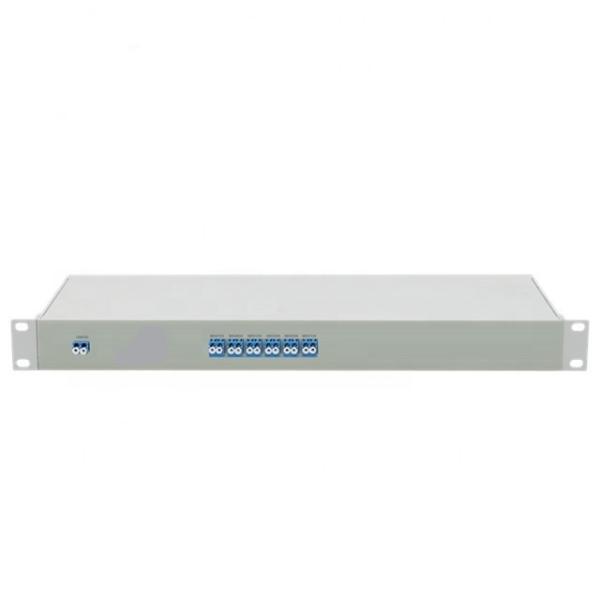

Waterproof Low Insertion Loss 4CH WDM Multiplexer Device For FITL
Waterproof Low Insertion Loss 4CH WDM Multiplexer Device For FITL
Specifications
Brand Name :
XDK
Model Number :
WDM Device
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
Center Wavelength(nm) :
1270~1610 or 1271~1611
Channel Spacing(nm) :
20
Color :
Grey
Center Wavalength Accuracy (nm) :
±0.5
Channel Passband :
±7.5
Channel Ripple (dB) :
≤0.3
Description

Low Insertion Loss 4CH WDM Multiplexer Devices Fiber Optic Passive High Channel Isolation with water proof for FITL Use

Description

The 4 channels CWDM passive MUX and DEMUX modules deliver the benefits of a Coarse Wave Division Multiplexer in a fully passive solution .With matching MUX DEMUX units placed at each end of an optical link, up to 4 channels can be combined and transmitted over a single-mode fiber trunk. It covers all channels from 1270nm to 1610nm in 20nm increments

4 channels plastic insert type structure passive CWDM MUX DEMUX, compact and lightweight, and strong environmental adaptability. Can be placed independently (using a binding band to fix), also like the splitter, placed in the corridor of the fiber box, when the central office needs more than one centralized placement, it can also be inserted into the 16-slot 3U passive chassis.

4 channels plastic insert type structure passive CWDM MUX DEMUX, waterproof, dustproof, and resistant to high and low temperature, high reliability, no power supply and other advantages.

Features

Ø Multiplexing of up to 4 channels

Ø Low Insertion Loss

Ø Wide passband

Ø High channel Isolation

Ø High Stability and reliability

Ø Plastic insert structure, fits in16-slot 3U chassis

Ø Compliant to ITU-T G.694.2 standard and Telcordia GR1209, GR122

Ø Standard 18-channel CWDM band 1270nm ~ 1610nm, 20nm spacing

Ø Based on thin-film filter technology

Ø Passive, no electric power required. (MTBF ca. 500 years)

Specifications

Parameter 4 Channels 8 Channels 16 Channels 18 Channels
Center Wavelength (nm) 1270~1610 or 1271~1611
Center Wavalength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband(@-0.5dB bandwidth) (nm) ±7.5
Insertion Loss (dB) ≤1.5 ≤2.5 ≤3.5 ≤3.8
Channel Ripple (dB) ≤0.3
Isolation (dB) Adjacent ≥30
Non-adjacent ≥40
Insertion Loss Temperature Sensitivity (dB/℃) <0.005
Wavelength Temperature Shifting (nm/℃) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion (ps) <0.1
Directivity (dB) ≥50
Return Loss (dB) ≥45
Maximum Power Handling (mW) 300

Applications

l FITL

l Automatic Measurement

l Optical Network Remote Monitoring

l Cable Monitoring and Maintaining system
