Specifications
Brand Name :
XDK
Model Number :
FP-SC/UPC-SC/UPC-G652D-SX-PVC
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China / Vietnam
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5 million pcs per month
Packaging Details :
regular packaging, or customized packing
Product name :
SC To SC Single Mode Digital Fiber Optic Cable
Material :
PVC/ LSZH
Color :
Yellow (can be customized)
Polish :
APC / UPC
Cable size :
2.0mm / 3.0mm
Length :
1m/3m/5m/10m/15m(can be customized)
Cable :
Simplex
Description

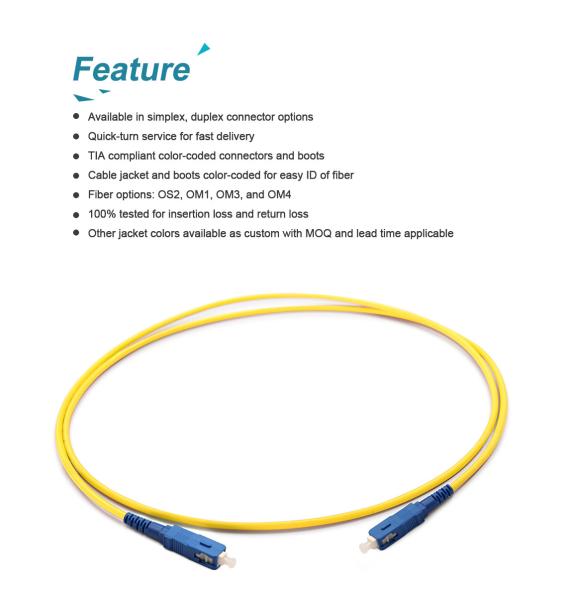

High Speed Ethernet Cable Yellow PVC G652D SC Patch Cord Fiber Optic Cable For Data Center

Fiber optic patch cord suited for equipment jumper cable, cross connects and work area connections. All patch cords are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC,SC,ST, LC patch cords are available in both multimode (62.5/125um and 50/125um) and single mode cable-types, in duplex and simplex versions.

Specification:

Connector Type SC/UPC to SC/UPC Fiber Count Simplex
Fiber Mode G652D 9/125um Working Wavelength 1260~1625nm
Insertion Loss ≤0.3dB Return Loss ≥50dB
Attenuation at 1310/1550nm 0.36/0.22 dB/km Ferrule Materials Ceramic
(Typical)
Cable Diameter 3.0mm Strength Member Aramid yarn
Minimum Bend Radius 10D Minimum Bend Radius 20D
(Long term) (Short term)
Cable Jacket PVC or LSZH Cable Colour Yellow
Operating Temperature -20~70°C Storage Temperature -40~85°C

Application:

1. Optical fiber communication system

2. Optical fiber access network

3. Optical fiber data transmission

4. Optical fiber CATV

5. Local area network (LAN)

6. Test equipment

Details:

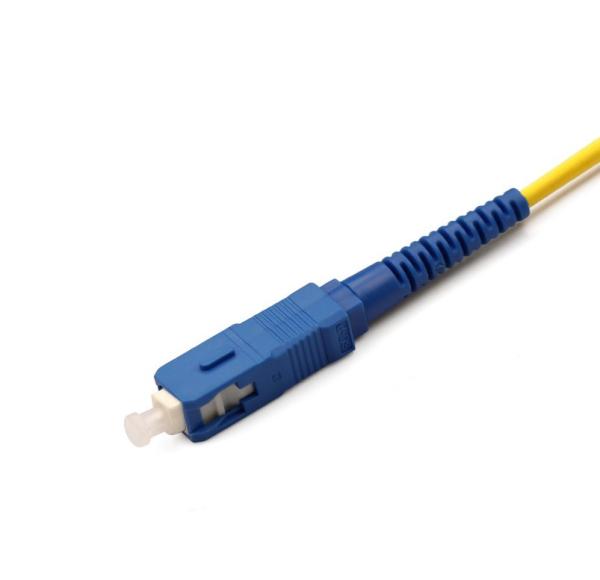

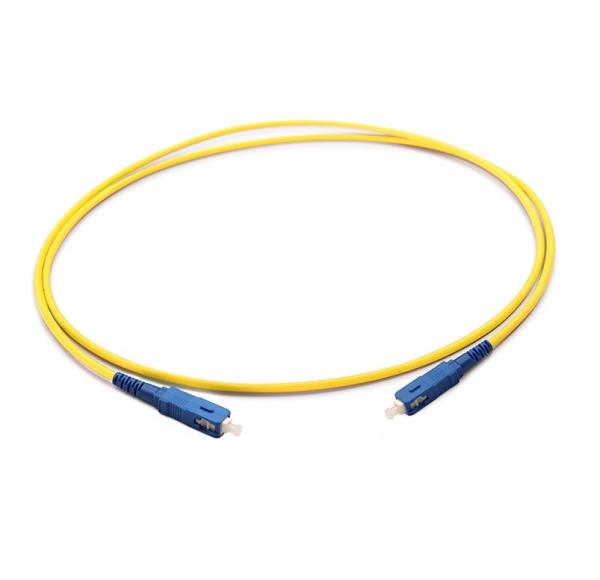

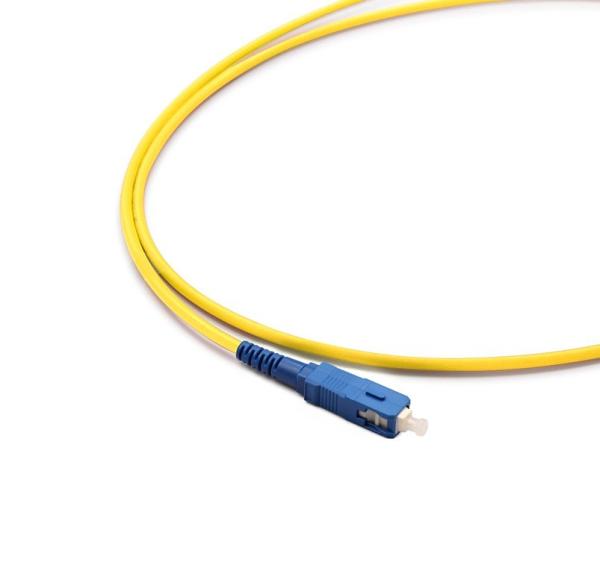

2.0mm 3.0mm G652D SC To SC SM Digital Fiber Optic Cable For Data Center

2.0mm 3.0mm G652D SC To SC SM Digital Fiber Optic Cable For Data Center

Company information:

Our two manufacturing in China and Vietnam with capacity over 60000sqm production based, headquatered in Huizhou with branches in Hong Kong, Shenzhen, Munich and United States. We specialize in the manufacturing and create value to our partners through our fiber optic products and accessories range.

2.0mm 3.0mm G652D SC To SC SM Digital Fiber Optic Cable For Data Center2.0mm 3.0mm G652D SC To SC SM Digital Fiber Optic Cable For Data Center2.0mm 3.0mm G652D SC To SC SM Digital Fiber Optic Cable For Data Center

FAQ:

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B. Secondly We quote according to your requirements or our suggestions.
C. Thirdly customer confirms the samples and places deposit for formal order.
D. Fourthly We arrange the production.
