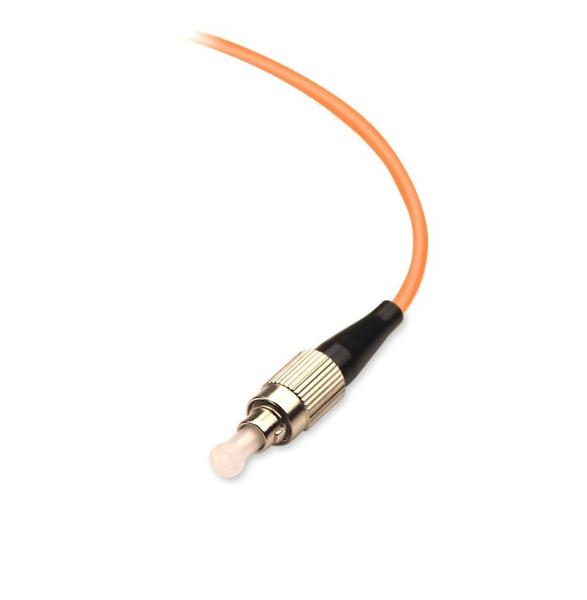

Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm
Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm
Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm
Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm
Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm
Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm
Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm
Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm
Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm
Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm
Specifications
Brand Name :
XDK
Model Number :
FC/UPC-FC/UPC Muiltmode OM1 Simplex 3.0
Certification :
ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
Place of Origin :
China/Vietnam
MOQ :
1 pcs
Price :
negotiable
Supply Ability :
5 million pcs per month
Packaging Details :
regular packaging
Product name :
Muiltmode OM1 Optical Fiber Patch Cord
Fiber Mode :
OM1 62.5/125um
Jacket color :
Orange
Wavelength :
850/1300nm(MM)
Material :
LSZH,PVC
Cable length :
0.5/1.0/2.0/3.0/As Customer Requested
Connector :
FC/UPC To FC/UPC
Type :
Om1 Fiber optic patch cord
Description

FC/UPC To FC/UPC Multimode OM1 Optical Fiber Patch Cable Simplex LSZH/PVC 3.0mm

Specification:

Connector Type FC/UPC to FC/UPC Fiber Count Simplex
Fiber Mode OM1 62.5/125um OFL Bandwidth 500/500 MHz*km
(850/1300nm)
Insertion Loss ≤0.3dB Return Loss ≥35dB
Attenuation at 850/1300nm 3.5/1.5 dB/km Ferrule Materials Ceramic
(Typical)
Cable Diameter 3.0mm Strength Member Aramid yarn
Optical Source LED Light Minimum Bend Radius 20D/10D
(Short term/Long term)
Cable Jacket LSZH or PVC Cable Colour Orange
Operating Temperature -20~70°C Storage Temperature -40~85°C

Features:
1. High compression resistance, mild resistance, trampling resistance, anti-rat and ant bite;
2. Small diameter, bending resistance, good flexibility;
3. The aramid fiber reinforced unit in the optical cable has good tensile resistance, and its connection with the optical fiber connector is stable, stable and reliable;
4. It can be directly laid in various indoor environments without the use of protective sleeves, which is convenient for network operation and maintenance.

Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm

Simplex FC / UPC To FC / UPC Multimode OM1 Optical Fiber Patch Cable 3.0mm

Application:
Optical fiber communication system, optical fiber access network, optical fiber data transmission, optical fiber CATV, local area network (LAN), test equipment

Optical fiber jumpers can be divided into common silicon-based optical fiber single-mode and multi-mode jumpers according to different transmission media. According to the structure of the connector, they can be divided into: FC jumpers, SC jumpers, ST jumpers, LC jumpers, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, E2000 jumper, DIN jumper, etc. various forms. The more common fiber optic jumpers can also be divided into FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST, etc. The core number, length, physical structure of the jumper can also be defined by the customer. The company uses high-precision grinders, first-class test control methods, rigorous inspection mechanism, all optical fiber sleeves are made of high-quality ceramics, so that any configuration of optical fiber tail wires and jumpers can make optical signals The loss is very small, ensuring extremely low insertion loss and reflection loss.
