M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Vertiv
Model Number :
Netsure 2100 A31
Packaging Details :
Cartons or Wooden Frame
Supply Ability :
1000 Piece/Pieces per Month
Price :
$138.00 - $698.00/sets
Output Power :
>500W
Output Type :
Multiple
Input Voltage :
85-300Vac
Output Voltage :
-42.3 to 57.6 Vdc
Output Frequency :
45-65HZ
Output Current :
40-60A, 60A
Application :
Network Frame System / DAS / Telecom
Product Name :
Emerson Netsure 2100 A31
Warranty :
12 Months
Peak Efficiency :
Rectifier: 95.4%
output capacity :
Rectifier: 1000W (up to 3 units)
EMC Class :
Class B
System Type :
Subrack / Embedded
Dimension(W*D*H) :
482 X 240 X 43.6mm
Weight :
<4kg (excluding rectifiers), <0.6kg for a rectifier
Rectifier Module :
R48-1000e3
Port :
shenzhen
Description

Emerson Rectifier R48-1000e3 Controller M225S M831A 40A 60A 48V 1U Rack Embedded DC Power Supply System Netsure 2100 A31

OEM & ODM Service
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
Specification

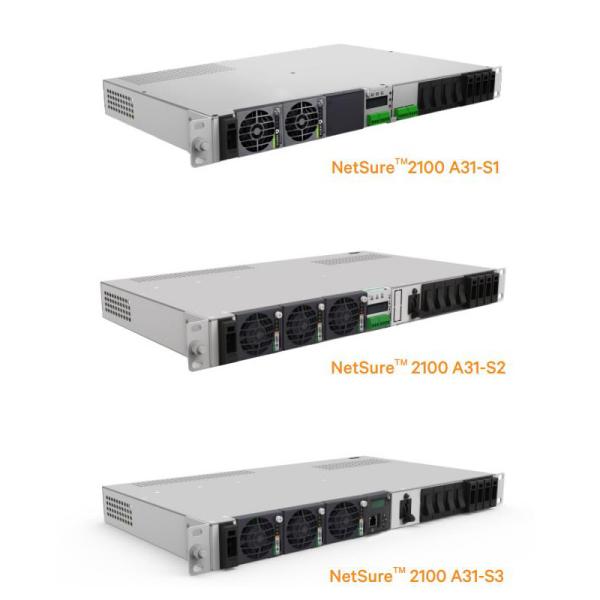

Configuration Model
NetSure 2100 A31-S1
NetSure 2100 A31-S2
NetSure 2100 A31-S3
Capacity
40A
60A
60A
Controller
M225S (RS232interface)
M225S (RS232interface)
M831A (RS485 interface, network port)
Rectifier
20A(R48-1000e3)
20A(R48-1000e3)
20A(R48-1000e3)
AC Distribution
L+N+PE/220Vac 1x30A; quick-plug terminal
Lightning Protection
Class C (Optional)
DC Distribution
Battery: 1×30ABLVD : 1×20A,2×10A
Battery: 1×50ABLVD : 2×30A 1×10A 1×3A
Battery: 1×50ABLVD : 2×30A 1×10A 1×3A
Lightning Protection
≥10kA ( Optional )
≥10kA ( Optional )
≥10kA ( Optional )
Parameters
Diamentions: 483mm(W)×240mm(D)×44mm(H)(19 Inch 1U Height)
Weight: ≤4kg (without rectifier)
Installation
Embedded
Recommend Products
Product Description

Features:

1. Ultra-compact sub-rack power system– delivers up to 3kW in 1U rack space;
2. Wide operating voltage range i.e. 85-300VAC;
3. Higher rectifier efficiency up to 95.4%;
4. All the breakers and connections are accessible from the front side;
5. Integrated distribution outlets;
6. Advanced intelligent battery management system;
7. Built-in communication & dry contact ports that enable remote monitoring;
8. Stores up to 4000 alarms;
9. Low audible noise under normal load and temperature conditions.
Applications:
1. Distributed Antenna
2. Systems (DAS)
3. Broadband
4. Radio Access Nodes - 3G/4G/5G
5. Wireline Access Nodes - FTTx applications
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
Customer Feedback
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
Company Profile
Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.
The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.
We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.
We provide OEM / ODM services according to customers' specific needs.
Our Advantages
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
Packing & Delivery
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
M225S M831A 40A 60A 48V 1U Rack Telecom Hybrid System Netsure 2100 A31
FAQ
1. who are we?
We are based in Guangdong, China, start from 2021,sell to Southeast Asia(25.00%),Africa(13.00%),Mid East(10.00%),Southern Europe(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),Domestic Market(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Outdoor Telecom Cabinet,Indoor Network Cabinet,UPS,Rectifier Modules,Power Supply System

4. why should you buy from us not from other suppliers?
Specialize in distributing HUAWEI, EMERSON, ELTEX, FLATPACK.,we are the biggest wholesaler of recitifer module in North of China.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
