300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Eltek
Model Number :
Flatpack2 Solar Autonomous Power Core
Packaging Details :
Cartons or Wooden Frame
Supply Ability :
1000 Set/Sets per Month
MOQ :
2 sets
Price :
$799.00/sets >=2 sets
Network :
SDK
Customized support :
Software reengineering
Type :
DC/AC Inverters
Output Type :
Single
Output Current :
300A/500A
Output Frequency :
45-66hz
Size :
482 x 384 x 311 (7U) mm; 482 x 384 x 445 (10U) mm
Weight :
12 kg [26 lbs]; 19 kg [42 lbs], 7kg (15 lbs)
Model :
300A/500A Flatpack2 Solar Autonomous Power Core
Warranty :
12 months
Part Number :
CTOA0407S.4xxx(300A) ; CTOA0810S.4xxx(500A)
Input voltage :
150VDC / 20ADC
Output Voltage :
48 VDC
Max power :
6400 W
Rectifier module :
Flatpack2 48/3200 HE Solar
Control and Monitoring unit 2 :
Smartpack2 Touch + Smartpack2 Basic + I/O Monitor Type2
Mounting location :
Door panel mounted
Port :
shenzhen
Description

300/500A 4U Distribution Flatpack2 Solar Autonomous Power Core Eltek DC Power Supply System CTOA0407S.4xxx CTOA0810S.4xx

Product Description
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core

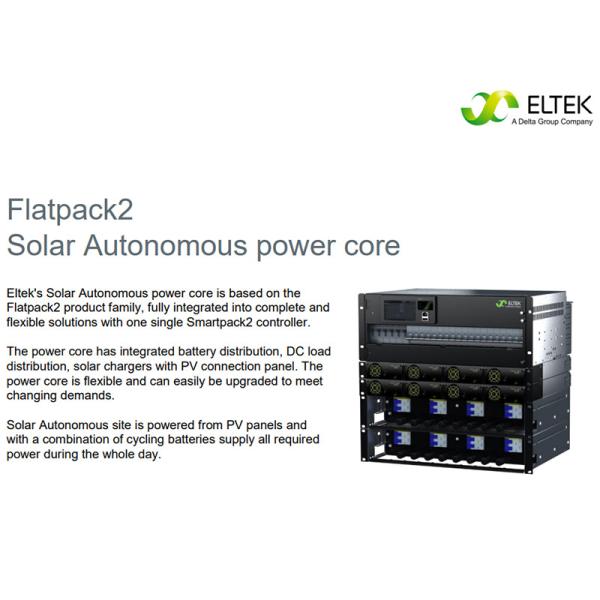

Flatpack2 - Solar Autonomous power core
The power core has integrated battery distribution, DC load distribution, solar chargers with PV connection panel. The power core is flexible and can easily be upgraded to meet changing demands.
Solar Autonomous site is powered from PV panels and with a combination of cycling batteries supply all required power during the
whole day.
Key Features:
* Complete system
* Smartpack2 Touch controller
* Advanced control and monitoring through ethernet port
* HE FP2 solar with MPPT
* Max PV capacity 24kw
* PV connection panel with DC SPD (option)
* Hot pluggable modules
* 19”/4U distribution chassis
* Up to 8x battery breaker positions
* LVBD
* Up to 18x load breakers positions
* LVLD1
* LVLD2 (optional)
* Global approvals
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core

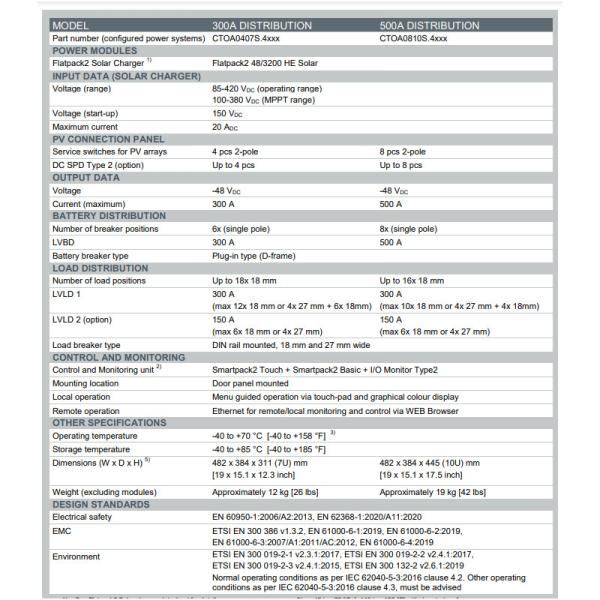

Specification
Network
SDK
Customized support
Software reengineering
Place of Origin
Guangdong, China
Brand Name
Eltek
Model Number
Flatpack2 Solar Autonomous Power Core
Type
DC/AC Inverters
Output Type
Single
Output Current
300A/500A
Output Frequency
45-66hz
Size
482 x 384 x 311 (7U) mm; 482 x 384 x 445 (10U) mm
Weight
12 kg [26 lbs]; 19 kg [42 lbs]
Model
300A/500A Flatpack2 Solar Autonomous Power Core
Warranty
12 months
Part Number
CTOA0407S.4xxx(300A) ; CTOA0810S.4xxx(500A)
Input voltage
150VDC / 20ADC
Weight
7kg (15 lbs)
Output Voltage
48 VDC
Max power
6400 W
Rectifier module
Flatpack2 48/3200 HE Solar
Control and Monitoring unit 2
Smartpack2 Touch + Smartpack2 Basic + I/O Monitor Type2
Mounting location
Door panel mounted
Application
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
OEM & ODM Service
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
Customer Feedback
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
Company Profile
Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.
The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.
We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.
We provide OEM / ODM services according to customers' specific needs.
Our Advantages
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
Packing & Delivery
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
300/500A 4U Distribution Eltek Power Supply System Flatpack2 Solar Autonomous Power Core
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2021,sell to Southeast Asia(25.00%),Africa(13.00%),Mid East(10.00%),Southern Europe(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),Domestic Market(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you purchase from us?
Telecommunication cabinet, Embedded Power System, huawei, ZTE OLT, Rectifier module, Monitoring module, Indoor Network Cabinet, UPS, Power Supply System, etc.

4. Why should you buy from us not from other suppliers?
We are pecialized in distributing HUAWEI, EMERSON, ELTEK, DELTA, FLATPACK, ETC with original package and teachical service to provide competive Pricing and fast delivery.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
