IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
Specifications
Place of Origin :
Guangdong, China
Brand Name :
ELTEK
Model Number :
Eltek Flatpack2 48V/24kW
Packaging Details :
Cartons or Wooden Frame
Supply Ability :
1500 Set/Sets per Month
Price :
$1,297.00/sets 1-9 sets
Output Power :
24kw
Output Type :
Multiple
Input Voltage :
100-305Vac
Output Voltage :
48V
Output Frequency :
50/65HZ
Output Current :
500A
Application :
telecom equipment application
Warranty :
12 months
Name :
Eltek Flatpack2 48V/24kW
Dimension(W*H*D) :
482 x 380 x 311mm
Weight :
6kg
Output :
48V
Operating temperature :
-40 - 70 °C
Ingress Protection (IP) :
IP43
Max input AC Voltage :
305 VAC
Mains configuration :
230VAC Single phase;230VAC 3 phase; 230/400VAC 3 phase (Y)
Port :
shenzhen
Description

Eltek 19inch 4U Distribution Flatpack2 24v/48v/24KW Integrated Embedded DC Power System

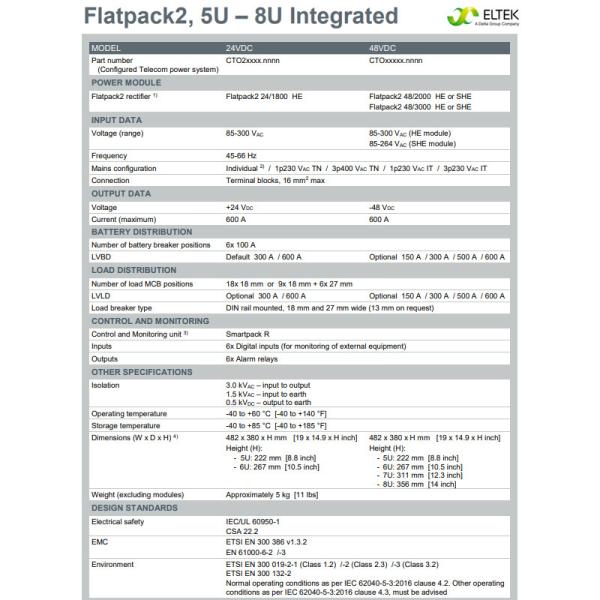

Specification
Place of Origin
Shenzhen, China
Brand Name
Eltek
Part Number
24VDC: CTO2xxxx.nnnn; 48VDC: CTOxxxxx.nnnn
Output Power
32kw
Output Type
Multiple
Output Voltage
24V/48V
Output Frequency
45-66HZ
Output Current
600A
Application
Telecom
Warranty
12 months
Name
Flatpack2 4U 5U - 8U Integrated DC Power supply system 150A – 600A
Dimension(W*H*D)
482 x 380 x H mm /19 x 14.9 x H inch
Weight
5kg
Output
-48V / +24V
Operating temperature
-40 to +60 °C
Recommend Products
Product Description

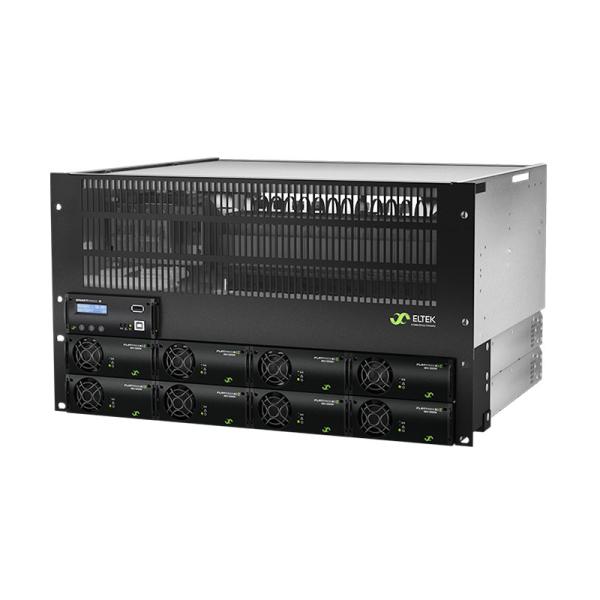

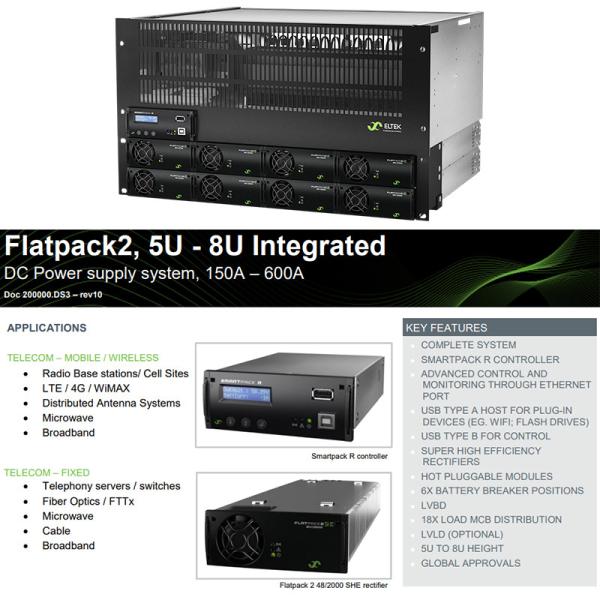

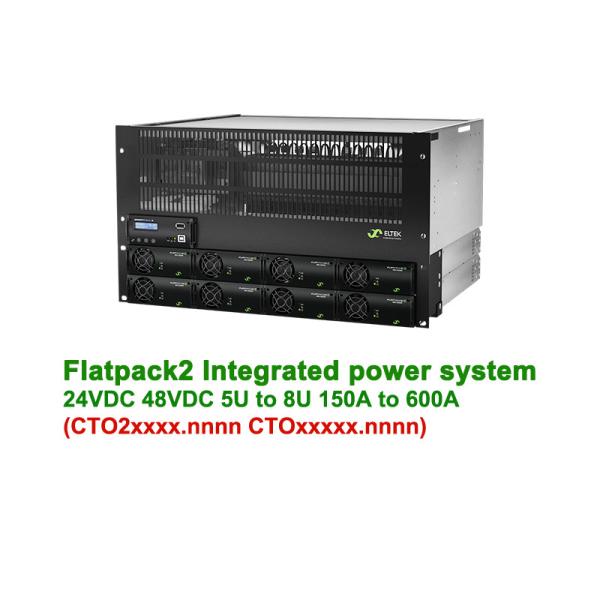

Flatpack2 Integrated power system:

The combination of cost-effective design, power density and reliability makes the Flatpack2 a product family that truly stands out and provides unparalleled network availability.
The versatility of the Flatpack2 rectifier means that it can be used in a wide variety of 48 Vdc and 24 Vdc applications across the globe.
Key Features:
* Highest efficiency in minimum space
* Digital controllers
* Heat management
* Unique connection
* Global approvals
Company Profile
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.
The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.
We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.
We provide OEM / ODM services according to customers' specific needs.
Our Advantages
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
Packing & Delivery
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
IP43 500A 19inch 4U Telecom Hybrid System Eltek Flatpack2 24v/48v/24KW
FAQ
1. who are we?
We are based in Guangdong, China, start from 2021,sell to Southeast Asia(25.00%),Africa(13.00%),Mid East(10.00%),Southern Europe(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),Domestic Market(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Outdoor Telecom Cabinet,Indoor Network Cabinet,UPS,Rectifier Modules,Power Supply System

4. why should you buy from us not from other suppliers?
Specialize in distributing HUAWEI, EMERSON, ELTEX, FLATPACK.,we are the biggest wholesaler of recitifer module in North of China.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
