Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Specifications
Model Number :
S48-2000e3
Place of Origin :
Shenzhen, China
Brand Name :
Emerson / Vertiv
Packaging Details :
carton
Supply Ability :
1000 Piece/Pieces per Month
Price :
$685.00/pieces 1-9 pieces
Type :
Vertiv Solar Converter, Vertiv Solar Converter MPPT
Size :
41x84.5x252.5mm / 1.61x3.33x9.94inches
Weight :
1.13kg / 2.49lbs
Module :
S48-2000E3
Visual Indications :
Green LED: Normal Operation Yellow LED: Alarm Red LED: Failure
Output Power :
2000W
MPPT Precision :
>99% when the output power more than 350W
Peak Efficiency :
96.8%
DC Input voltage :
140VDC to 400VDC (nominal)
DC Output voltage :
-42 VDC to -58 VDC
Port :
shenzhen
Description

Original 48V 2000W MPPT Vertiv eSure Solar Converter 1S482000E3 S48-2000e3

Product Description
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3

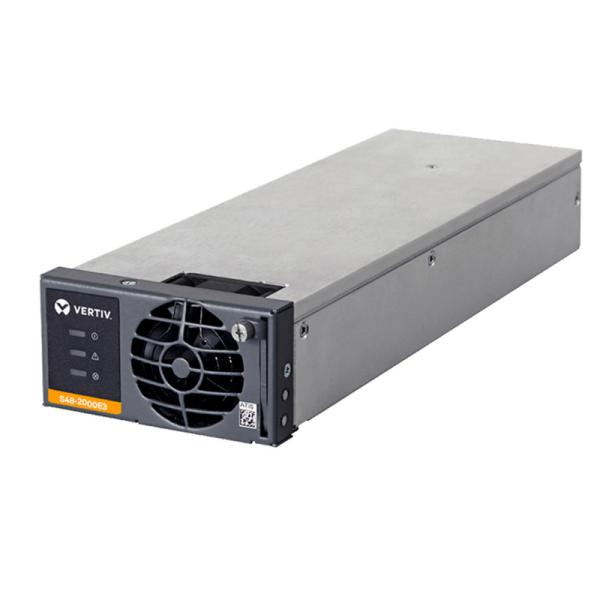

Vertiv™ eSure™ Solar Converter S48-2000e3
The S48-2000e3 MPPT solar converter efficiently delivers 2000W power at -48 VDC to the load and battery. This constant power
converter designed with the latest patented switch-mode technology, uses DSP (Digital Signal Process) to provide clean power to
the load with acute control and management.
The S48-2000e3 can be connected in parallel with other converters and rectifiers to
support a variety of telecom applications. Unified remote management and control of the power system is enabled when combined with a controller. Implementing solar conversion and control from Vertiv, ensures your critical network is highly available and
extremely affordable to operate.

Benefits
1. Maximize energy delivered with the efficiency and precision of Maximum Power Point Tracking (MPPT).
2. Increase space for revenue generating equipment with modules that
pack more power in a small space with high power density.
3. Facilitate easy maintenance, expansion and system changes
with hot swappable capabilities and ability to interchange with R48-2000e3 rectifiers as needed.
4. Enjoy increased reliability and active load sharing with Digital Signal Processing (DSP),
which translates into fewer components and optimized operation.
5. Appreciate the flexibility to utilize in a variety of applications with a wide input voltage range
of 120 VDC to 420 VDC and full power output at temperatures from -40˚C to +65˚C.
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Application
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3

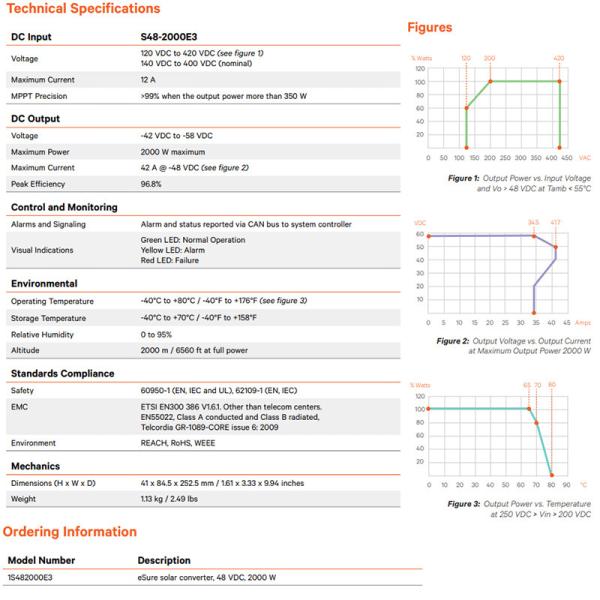

Specification
Type
Vertiv Solar Converter
Model Number
S48-2000e3
Place of Origin
Shenzhen, China
Brand Name
Emerson / Vertiv
Size
41x84.5x252.5mm / 1.61x3.33x9.94inches
Weight
1.13kg / 2.49lbs
Module
S48-2000E3
Visual Indications
Green LED: Normal Operation Yellow LED: Alarm Red LED: Failure
Type
Vertiv Solar Converter MPPT
Output Power
2000W
MPPT Precision
>99% when the output power more than 350W
Peak Efficiency
96.8%
DC Input voltage
140VDC to 400VDC (nominal)
DC Output voltage
-42 VDC to -58 VDC
OEM & ODM Service
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Customer Feedback
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Company Profile
Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.
The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.
We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.
We provide OEM / ODM services according to customers' specific needs.
Our Advantages
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Packing & Delivery
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
Original 48V 2000W MPPT ESure Vertiv Converter 1S482000E3 S48-2000e3
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2021,sell to Southeast Asia(25.00%),Africa(13.00%),Mid East(10.00%),Southern Europe(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),Domestic Market(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you purchase from us?
Telecommunication cabinet, Embedded Power System, huawei, ZTE OLT, Rectifier module, Monitoring module, Indoor Network Cabinet, UPS, Power Supply System, etc.

4. Why should you buy from us not from other suppliers?
We are pecialized in distributing HUAWEI, EMERSON, ELTEK, DELTA, FLATPACK, ETC with original package and teachical service to provide competive Pricing and fast delivery.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
