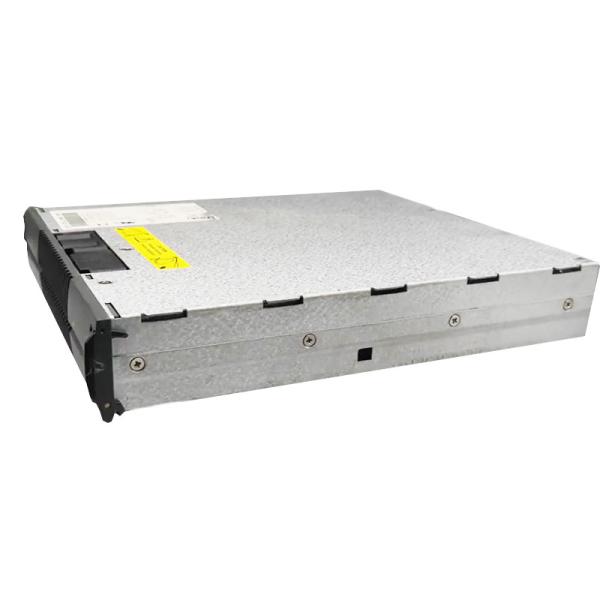

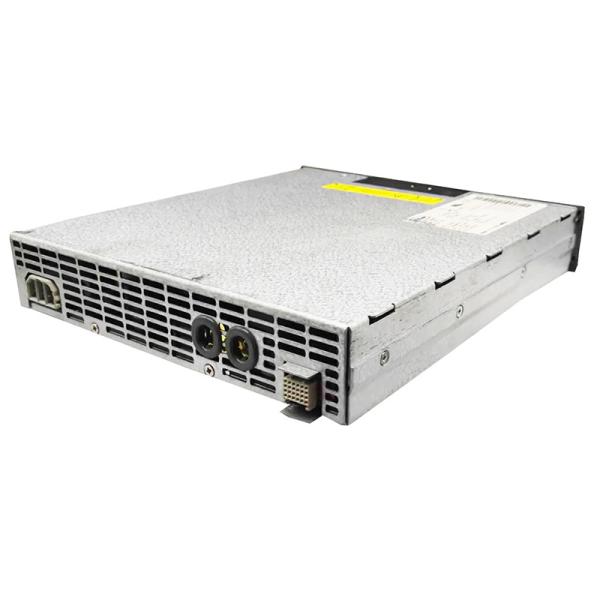

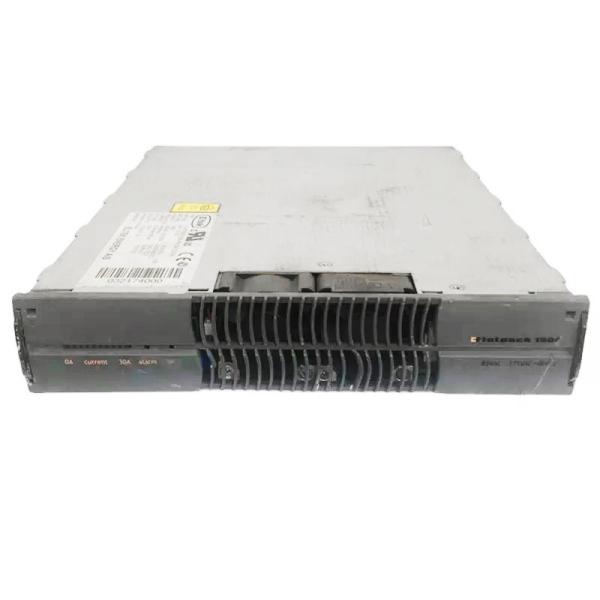

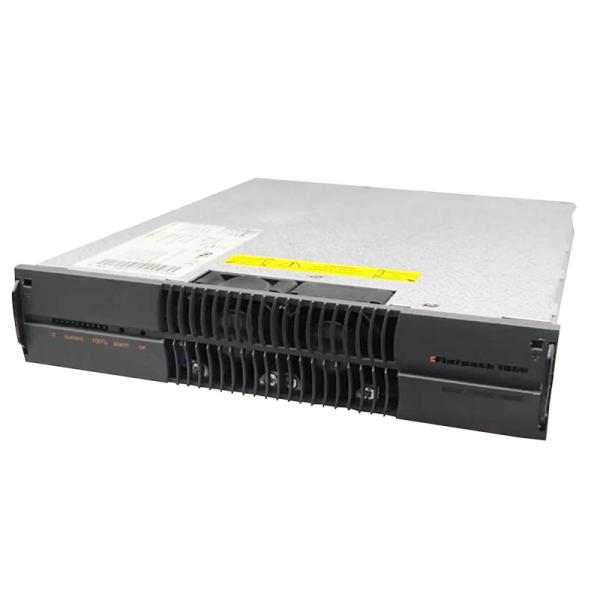

Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Specifications
Model Number :
FLATPACK 1500 (241114.100)
Place of Origin :
Guangdong, China
Brand Name :
Eltek
Packaging Details :
cartons
Supply Ability :
100 Piece/Pieces per Day
Price :
$299.00/pieces 1-9 pieces
Type :
Rectifier Module
Use :
Telecom Power
Product Name :
FLATPACK 1500 (241114.100)
Application :
Telecommunication
Part No. :
241114.100
DC input :
85-265Vdc
DC current :
10.2Max
DC fuse :
15A F
DC output :
53.5 V/28A
Power :
1500W
Warranty :
12 Months
Packing :
Carton
Port :
shenzhen
Description
Product Description
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Eltek Flatpack 48/1500 241114.100 48V 1500W Rectifier Module
The Flatpack 1500 48V is a battery charger and rectifier for stand-alone use, or for working in parallel as part of a power rack system controlled by the Flatpack MCU Monitoring & Control Unit. When connected in parallel, the rectifiers provide active current sharing, with or without the Monitoring & Control Unit.
Switch mode technology with soft switching and high switching frequency is used to minimize volume and weight, and to obtain fast output voltage regulation. The module accepts large variations on the input voltage (85-300 VAC) and draws sinusoidal current with a soft start power-up.

The Flatpack 1500 48V will operate in ambient temperatures up to +70°C (+158°F). At higher temperatures, the
rectifier will derate the output power and deliver the maximum possible power until it goes into an over-temperature shutdown.

The rectifier provides 1500 W output power at 230 VAC nominal input voltage. The rectifier provides max. 600 W output power at 48 VDC at 120 VAC nominal input voltage.
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Specification
Place of Origin
China
Guangdong
Brand Name
Eltek
Model Number
FLATPACK 1500 48V
Output Power
>500W
Output Type
DUAL
Input Voltage
220v
Output Voltage
48V
Output Frequency
50/65hz
Output Current
50A
Product Name
Flatpack 1500
Application
Telecommunication
Part No.
241114.100
DC input
85-265Vdc
DC current
10.2Max
DC fuse
15A F
DC output
53.5 V/28A
MOQ
1pcs
Dimension(WxHxD)
214 x 41.5 x 243mm
Weight
2.8kg (6.17lbs)
Application
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
OEM & ODM Service
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Customer Feedback
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Company Profile
Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.
The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.
We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.
We provide OEM / ODM services according to customers' specific needs.
Our Advantages
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Packing & Delivery
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
Rack Mount Eltek Rectifier Module 241114.100 Flatpack 1500 48V 230VAC Telecom Power Module Rectifiers
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2021,sell to Southeast Asia(25.00%),Africa(13.00%),Mid East(10.00%),Southern Europe(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),Domestic Market(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you purchase from us?
Telecommunication cabinet, Embedded Power System, huawei, ZTE OLT, Rectifier module, Monitoring module, Indoor Network Cabinet, UPS, Power Supply System, etc.

4. Why should you buy from us not from other suppliers?
We are pecialized in distributing HUAWEI, EMERSON, ELTEK, DELTA, FLATPACK, ETC with original package and teachical service to provide competive Pricing and fast delivery.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
