Product Description:

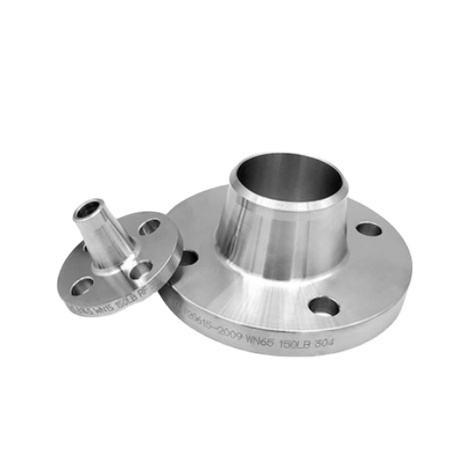

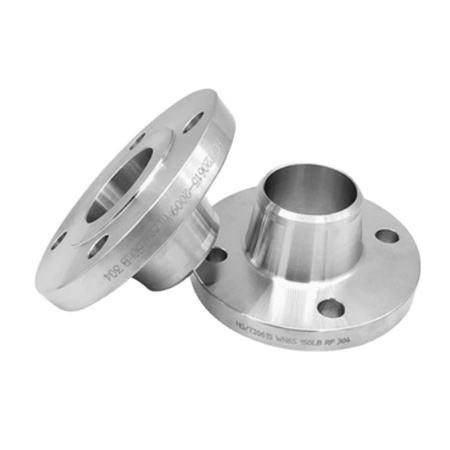

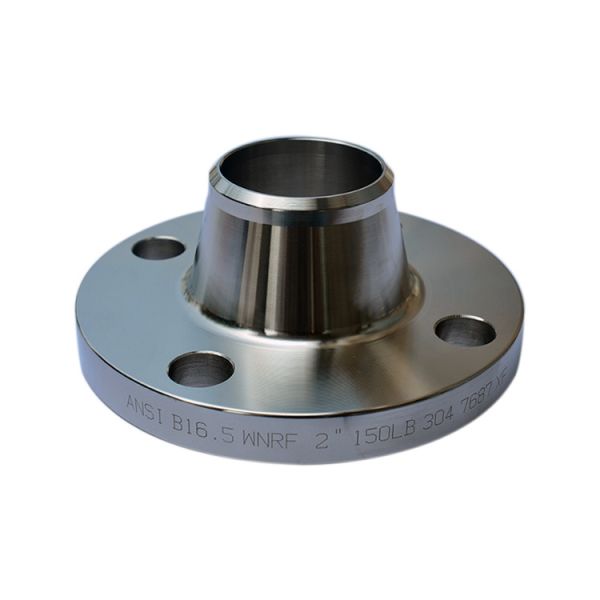

FLANGE ANSI B16.5 ASME B16.47 is a kind of pipe flanges which is widely used in various industries. It is a kind of product with high quality, durability, safety and reliability. The material of this product is carbon steel, stainless steel and alloy steel. It is made by forging process with pressure rating ranging from CLASS150 to CLASS2500. The coating is BLACK PAINT and the available size is from 1/2"-80", 3/4", 1", 11/4", 11/2", 2", 21/2". It is especially suitable for A182 F304/304L FLANGE, A105N FLANGE, 150LBS FLANGE and other flanges. This product can meet the requirements of different customers and provide reliable support for many industries.

Features:

• Product Name: FLANGE ANSI B16.5 ASME B16.47
• Connection Type: WELDING
• Coating: BLACK PAINT
• Pressure Rating: CLASS150-CLASS2500
• Face Type: RF, RTJ.Black Paint, Yellow Paint, transparent Paint, Cold And Hot Dip Galvanize
• pressure: 150#, 300#, 600#, 900#, 1500#, 2500#

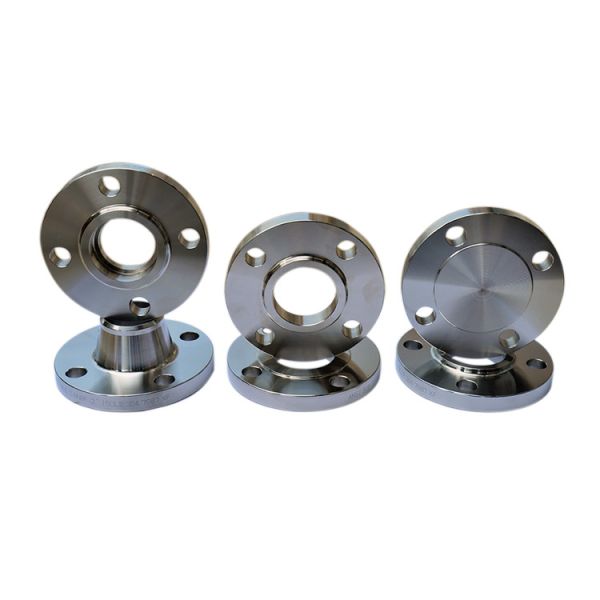

• Keywords: A105N FLANGE, 150LBS FLANGE, A105 FLANGE, WELD NECK FLANGE, BLIND FLANGE, SLIP ON FLANGE, THREADED FLANGE

Technical Parameters:

Applications:

XF ANSI B16.5 ASME B16.47 Flange is a professional brand of flange made of carbon steel, stainless steel and alloy steel for the connection of pipelines. It is widely used in the connection of pipelines for conveying water, oil, gas and steam. XF ANSI B16.5 ASME B16.47 Flange provides high-quality A105 flange, weld neck flange, ANSI B16.5 flange and ASME B16.47 flange. It has a variety of face types, such as RF, RTJ, black paint, yellow paint, transparent paint, cold and hot dip galvanizing. It also has a pressure rating of Class 150-Class 2500. It is available in a variety of colors, including black paint and yellow paint, and can also be customized according to customer requirements. It is guaranteed to meet the requirements of ISO9001.PED certification, with a minimum order quantity of 1 Ton, and a delivery time of 15-45 days. The price is negotiable, and the package is standard export seaworthy package or as required, with a supply capacity of 1000-5000 TONS/MONTH.

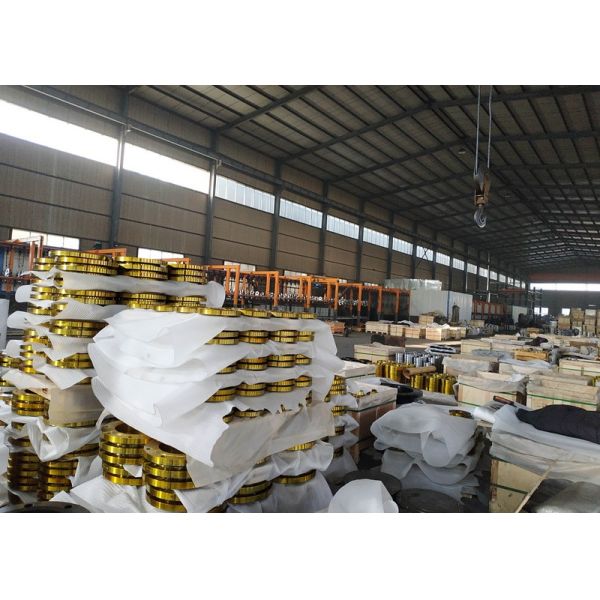

Packing and Shipping:

The packaging and shipping for FLANGE ANSI B16.5 ASME B16.47 includes:

• All flange orders are thoroughly inspected prior to shipment.
• The flanges are individually wrapped in plastic to prevent corrosion.
• The flanges are then placed in heavy-duty cardboard boxes for protection during transit.
• The boxes are then secured on wooden pallets for shipping.
• The pallets are then shrink-wrapped to ensure no damage occurs during transit.
•
