Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105
Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105
Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105
Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105
Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105
Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105
Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105
Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105
Specifications
Brand Name :
XF
Model Number :
ANSI B16.5
Certification :
EN 10204 3.1
Place of Origin :
CN
MOQ :
20FT full container
Price :
USD25000-USD120000
Payment Terms :
LC, DA, DP, TT,
Supply Ability :
3000 Tons per month
Delivery Time :
6 weeks
Packaging Details :
Sea worty Plywood case or pallet
Standard :
ANSI B16.5 ASME B16.47
Production :
Hot forging
Material :
ASTM SA/A105, A350 LF2, A694 F52, A182 F304/316
Flange type :
Slip on, Welding neck, Blind, Lap joint, Socket welding
Pressure :
class 150 Lbs, 300 lbs, 400 lbs, 600 lbs, 900 lbs, 1500 lbs, 2500 Lbs
Size range :
ANSI B16.5 1/2" to 24", ASME B16.47 26" to 60"
Coating :
Black paint, yellow paint, rust-proof oil, Hot dip galvanizing,
packing :
Sea worthy Plywood case, plywood pallet, carton box,
Description

Forged steel flange ANSI B16.5 ASME B16.47 ASTM A105

Material: Carbon steel ASTM A105

Carbon steel Flange ANSI B16.5 150 lbs welding neck ASTM A105

ASTM A105 (also known as ASME SA 105) covers seamless forged carbon steel piping components for use in pressure systems at ambient and high-temperature service.Flanges, fittings, valves and various other parts ordered to customer dimension or to industry standards such as MSS, ASME and API specification are included in the scope.Forgings to this specification are limited to 10,000 lbs.

Chemical Requiremetns

Element

 Carbon Manganese Phosphorus Sulfur Silicon Copper Nickel Chromium Molybdenum Vanadium

Composition,%

 0.35 max 0.6-1.05 0.035 max 0.040 max 0.10-0.35 0.40 max 0.40 max 0.30 max 0.12 max 0.08 max

Mechanical Requiremetns

Tensile strenght, min, ksi (Mpa) Yield strength, min, ksi, (mpa) Elongation in 2 inch or 50mm, min, % Reduction of area, min, %

Hardness, HBW, max

70 (485)

36 (250)

 30 30 197

ANSI B16.5 Specification

Flange tyep: welding neck; slip on; blind; lap joint; threaded; socket welding;

Size range: 1/2" to 24"

Pressure: class 150; 300; 400; 600; 900; 1500; 2500

Wall thicnkess: SCH5,SCH10,SCH20,SCH30,XS ,SCH40, SCH80,SCH160,SCH XXS

Sealing joint type: FF (flat face) ; RF ( raisd face) ; LJ (lap joint) RTJ (right joint)

ASME B16.47 Specification

Flange tyep: welding neck ; blind;

Size range: 12" to 60"

Pressure: class 75; 150; 300; 600; 900;

Wall thicnkess: SCH5,SCH10,SCH20,SCH30,XS ,SCH40, SCH80,SCH160,SCH XXS

Sealing joint type: FF (flat face) ; RF ( raisd face) ; LJ (lap joint) RTJ (right joint)

Material: Carbon steel ASTM A105/A105N; A350 LF1/LF2; A694 F42/46/48/50/52/56/60/65/70;

Stainless steel ASTM A182 F304/304L; 316/316L; F321; F51;

Alloy steel ASTM A182 F11/F12/F22

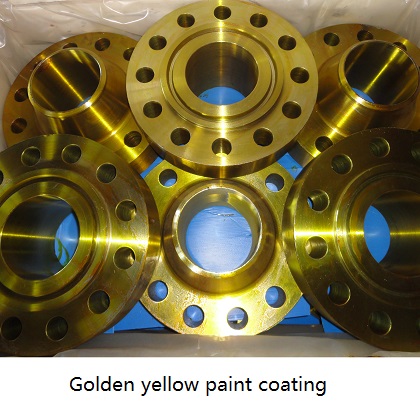

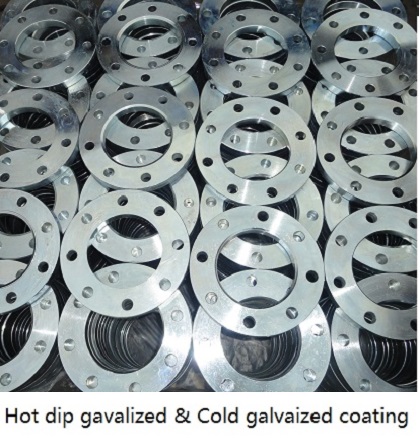

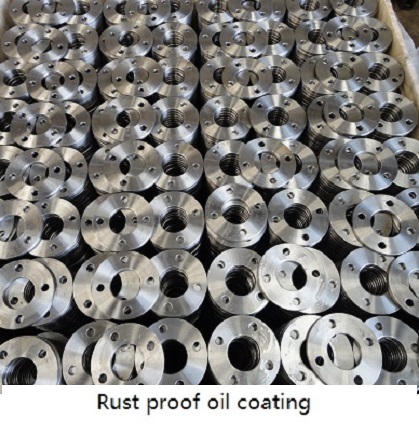

Flange coating: Rust-proof oil coating; Yellow paint coating, Black paint coating; Galavanized coating; colored exposy resin coating

Packing: Sea worthy plywood cases or pallets

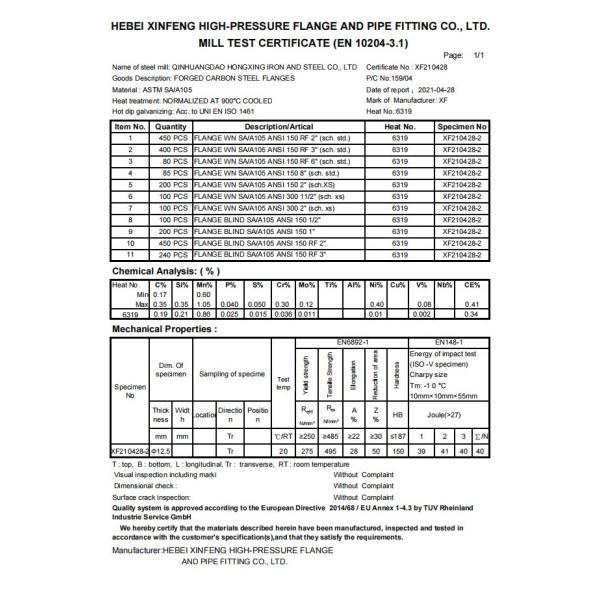

Certificate: ISO & PED certified, Mill test certificaed

Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105

Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105

Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105

Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105

Carbon Steel Flange ANSI B16.5 150 Lbs Welding Neck ASTM A105
