Specifications
Brand Name :
XF/XINFENG
Model Number :
DN15-DN3000
Certification :
ISO 9001 ,PED ,AD2000
Place of Origin :
CHINA
MOQ :
1PCS
Price :
1USD
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
4000TONS/ONE MONTH
Delivery Time :
30DAYS
Packaging Details :
PLYWOODEN CASES OR PALLETS
Material :
Carbon Steel P245GH , P250GH ,P265GH,P280GH,S235JR,C22.8,ST37.2 and Stainless steel SS304/304L,SS316/316L,SS321
Size :
DN15-DN3000
Pressure :
PN6, PN10, PN16, PN25, PN40, PN63 , PN100 ,PN160
Flange Type :
type01 , type02, type04, type05, type11, type12 , type13,type21, type32, type34 and type36
Coating :
Black Paint, Anti-rust Oil, Galvanized, Yellow Paint
Surface :
Flat face (TYPEA), Raised face(TYPE B1 and B2) , Tongue (TYPE C) Groove a continuous line above the grrove(TYPE D), Spigot(TYPE E) Recess(TYPE F) O-ring spigot(TYPE G) O-ring groove(TYPE H)
Threaded :
NPT and BSP
Standard :
EN1092-1,DIN Forged Flange
Description

DIN / EN1092-1 FORGED FLANGE PN6 , PN10 , PN16,PN25,PN40,PN63

WEDLING NECK ,SLIP ON , BLIND,FLAT,THREADED ,LOOSE FLANGE

1. EN1092-1 FLANGE

Size range: DN15 to DN2000

Design: Type01, Type02 , Type04 , Type05 , Type11, Type12 , Type 13,

Type21,Type 32 ,Type33 and Type 34

Pressure: PN6, PN10, PN16, PN25, PN40, PN63, PN100

Material: Carbon steel C22.8,S235JR, P235GH, P245GH,P250GH,P265GH,P280GH.

Stainless steel: SS304/304L, SS316/316L,SS321

Coating: black paint, yellow paint, anti-rust oil,cold and hot dip galvanized,epoxy coated

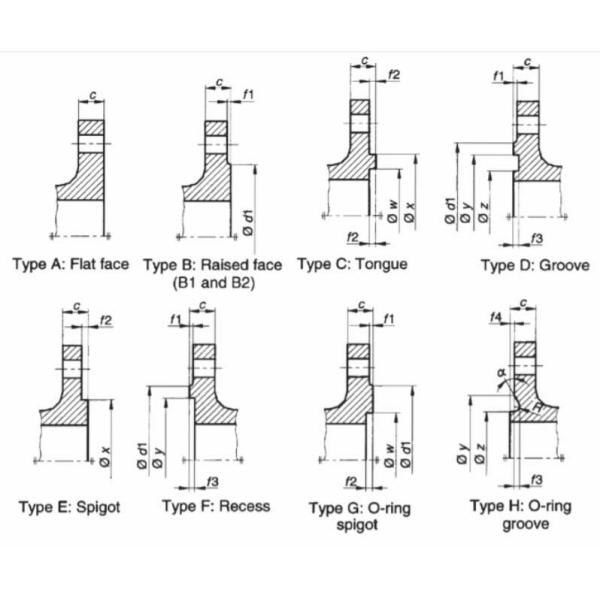

Surface :Flat face (TYPEA), Raised face(TYPE B1 and B2) , Tongue (TYPE C) ,

Groove a continuous line above the grrove(TYPE D),

Spigot(TYPE E) Recess(TYPE F) O-ring spigot(TYPE G) O-ring groove(TYPE H)

DIN EN1092-1 FORGED FLANGE WEDLING NECK SLIP ON BLIND FLAT THREADED LOOSE FLANGE

DIN EN1092-1 FORGED FLANGE WEDLING NECK SLIP ON BLIND FLAT THREADED LOOSE FLANGE

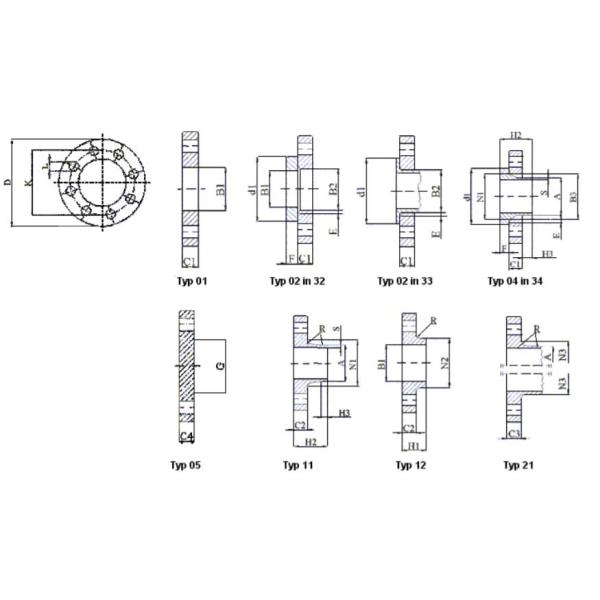

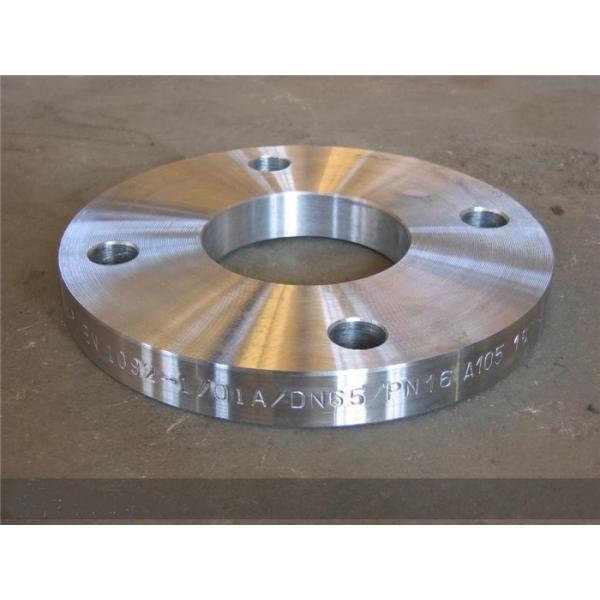

Typ 01: Plate (slip-on) flange for welding Typ 13: Hubbed threaded flange
Typ 02: Loose plate flange with weld-on plate collar Typ 21: Integral flange
Typ 04: Loose plate flange with weld-neck collar Typ 32: Weld-on plate collars
Typ 05: Blank (blind) flange Typ 33: Lapped pipe ends
Typ 11: Weld-neck flange Typ 34: Weld-neck collars
Typ 12: Hubbed slip-on flange for welding

DIN EN1092-1 FORGED FLANGE WEDLING NECK SLIP ON BLIND FLAT THREADED LOOSE FLANGE

DIN EN1092-1 FORGED FLANGE WEDLING NECK SLIP ON BLIND FLAT THREADED LOOSE FLANGE

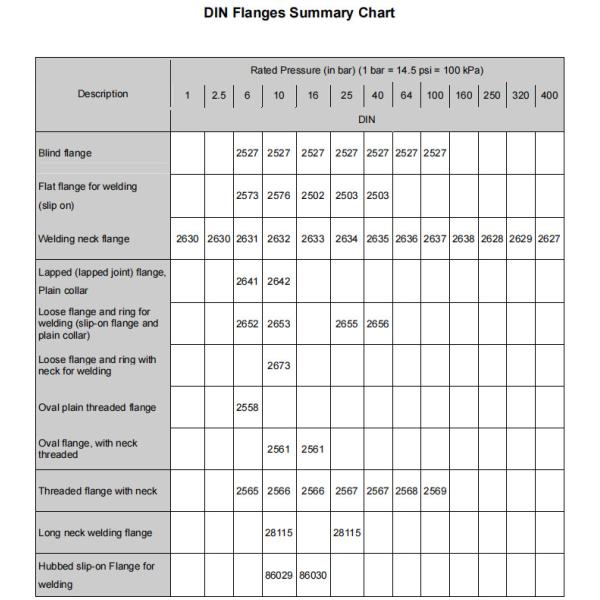

2. DIN FLANGE

Size range: DN15 to DN3000

Design:

slip on flange(flat flange): DIN2573,2576,2502,2503, 2543,2545

welding neck falnge :DIN2631,2632,2633,2634,2635,2636,2637

blind flange :DIN 2527 PN6, PN10, PN16, PN25, PN40

threaded falnge: DIN2565,2566,2567,2568,2569

loose flange: DIN 2641,2642,2655,2656

hubbed slip on flange:DIN86029,86030

Material: Carbon steel ST37.2,S235JR,C22.8.

Stainless steel SS304/304L, SS316/316L,SS321

DIN EN1092-1 FORGED FLANGE WEDLING NECK SLIP ON BLIND FLAT THREADED LOOSE FLANGE

DIN EN1092-1 FORGED FLANGE WEDLING NECK SLIP ON BLIND FLAT THREADED LOOSE FLANGE

DIN EN1092-1 FORGED FLANGE WEDLING NECK SLIP ON BLIND FLAT THREADED LOOSE FLANGE

DIN / EN1092-1 FLANGE DETAIL:

FLANGES DIN / EN
Type Norm Nominal Pressure Dimension
Welding Neck Flange EN1092-1 Typ11 PN6-PN100 DN10-DN2000
DIN 2631 - DIN 2637
Blind Flanges EN1092-1 Typ05 PN6-PN100 DN10-DN2000
DIN 2527 PN6-PN40
Flat Flanges for welding DIN 2573/DIN2576/DIN2502/DIN2503/
DIN2543/DIN2544/DIN2545		 PN6-PN100 DN10-DN2000
EN1092-1 Typ01 PN6-PN40 DN10-DN3000
Loose Flange +
Weld-on Collars		 DIN2641/DIN2642/DIN2655/DIN2656 PN6-40 DN10-DN800
EN1092-1 Typ02 DN10-DN2000
EN1092-1 Typ32
Loose Flange +
Weld Neck Collars		 DIN 2673 PN10 DN10-DN1200
EN1092-1 Typ04 PN6-PN40 DN10-DN2000
EN1092-1 Typ34
Threaded Flanges EN1092-1 Typ13 PN6-PN100 DN10-DN600
DIN2565,2566,2567,2568,2569 DN10-DN150
Slip On Flange EN1092-1 Typ12 PN6-PN100 DN10-DN600
DIN86029/DIN86030 PN10-PN16 DN10-DN1000

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

DIN EN1092-1 FORGED FLANGE WEDLING NECK SLIP ON BLIND FLAT THREADED LOOSE FLANGE
