Specifications
Brand Name :
ANSI B 16.9
Model Number :
SCH10 TO SCHXXS
Certification :
ISO9001 PED2000
Place of Origin :
MADE IN CHINA
MOQ :
2tons
Price :
1
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000TON PER MONTH
Delivery Time :
5
Packaging Details :

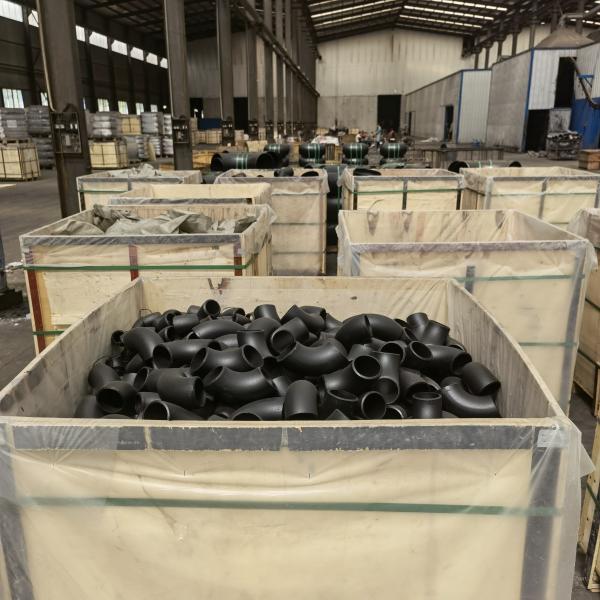

seaworthy export standard plywooded cases
Material :
304, 304L, 321, 316, 316L, etc
Thickness :
SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160 XXS
Size :
1/2" TO 48"
Standard :
ASME, MSS, HG, DIN, JIS, GB
Type :
90 degree Long Radius, 90 degree Short Radius, 45 degree Long Radius, 180 degree Return Band
Description

ANSI B 16.9 BUTT WELDED & seamless SCH10 SCH20 SCH40 SCH80 SCH100 SCH120 SCH160 XXS ELOBW

1. Material: 304, 304L, 321, 316, 316L, etc.
2. Standard: ASME, MSS, HG, DIN, JIS, GB
3. Type: 90 degree Long Radius, 90 degree Short Radius, 45 degree Long Radius, 180 degree Return Band

We offer Sanitary Fittings, Stainless Steel Sanitary Fittings, and Stainless Steel Tube Fittings that are manufactured using optimum quality stainless steel. Our wide array of sanitary stainless steel tee is known among the customer’s due to its tensile strength. These Steel Tube Fittings in various grades and finishes as per the needs.

Specification of Stainless Steel Butt Welded Elbow:

Specification Type Data
Size 90 degree Long/Short Radius
45 degree Long Radius		 Seamless 1/2”-20”(DN15-DN500)
Welded 1/2”-48” (DN15-DN1200)
180 degree Return Band Seamless 1/2”-4”(DN15-DN100)
Wall Thickness 90 degree Long/Short Radius
45 degree Long Radius		 SCH5S-SCH160
180 degree Return Band SCH5S-SCH80S
Material 304, 304L, 321, 316, 316L, etc.
Standard GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635
HG/T21631, ASME B16.9, MSS SP-43, DIN 2605, JIS B2313

Types of Stainless Steel Butt Welded Elbow :

Technical Parameter:

Butt-welding Elbows ANSI B16.9
Nominal Diameter Outside

Diameter/mm

 Center to End/mm

45 degree Elbow

 90 degree Elbow
DN OD Long Radius Long Radius Short Radius
1/2 21.3 15.7 38.1 -
3/4 26.7 19.1 38.1 -
1 33.4 22.4 38.1 25.4
1 1/4 42.2 25.4 47.8 31.8
1 1/2 48.3 28.4 57.2 38.1
2 60.3 35.1 76.2 50.8
2 1/2 73 44.5 95.3 63.5
3 88.9 50.8 114.3 76.2
3 1/2 101.6 57.2 133.4 88.9
4 114.3 63.5 152.4 101.6
5 141.3 79.2 190.5 127
5 168.3 95.3 228.6 152.4
8 219.1 127 304.8 203.2
10 273.1 158.8 381 254
12 323.9 190.5 457.2 304.8
14 355.6 222.3 533.4 355.6
16 406.4 254 609.6 406.4
18 457.2 285.8 685.8 457.2
20 508 317.5 762 508
22 558.8 342.9 838.2 558.8
24 609.6 381 914.4 609.6

Specification of Stainless Steel Butt Welded Elbow:

Specification Type Data
Size 90 degree Long/Short Radius
45 degree Long Radius		 Seamless 1/2”-20”(DN15-DN500)
Welded 1/2”-48” (DN15-DN1200)
180 degree Return Band Seamless 1/2”-4”(DN15-DN100)
Wall Thickness 90 degree Long/Short Radius
45 degree Long Radius		 SCH5S-SCH160
180 degree Return Band SCH5S-SCH80S
Material 304, 304L, 321, 316, 316L, etc.
Standard GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635
HG/T21631, ASME B16.9, MSS SP-43, DIN 2605, JIS B2313
