Specifications
Brand Name :
XF
Model Number :
ASME B16.9, EN10235, DIN2615, JIS B2311, GOST 17376
Certification :
ISO9001 TUV PED
Place of Origin :
CN
MOQ :
1ton
Price :
1000-2000usd
Payment Terms :
LC;DA;DP;TT;
Supply Ability :
3000 tons per month
Delivery Time :
5-8 weeks
Packaging Details :
seaworthy plywood case or pallet
Product :
Butt welded Pipe Tee
Type :
Equal Tee ,Reducing Tee
Wall thickness :
2mm- 60mm, SCH10, SCH20,SCH30, STD SCH40
Material :
carbon steel ASTM A234 WPB, P265GH
Size :
1/2" to 24" for seamless type; 4" to 72" for welded type
Packing :
Seaworthy plywood case
Description

Equal Tee/Reducing Tee Seamless Welded SCH40 SCH80 SCH160 ,BLACK PAINTTING

Place of Origin:China

We can provide seamless pipe tees and welding pipe tees,which can also be divided into equal tees and reducing tees.

Equal Tee/Reducing Tee

Description:

A tee is also called triplet,three way and “T” pieces and it can be used to either combine or split a fluid flow. Most common are tees with the same inlet and outlet sizes,

but ‘reducing’ tees are available as well. it means the one or two ends are differ in dimension.due to thisdimension differ,the makes the tee fittings with the capacity tocontrol the volume when requried.

  • Size
    • Seamless :1/2″～24″ DN15～DN600
    • Welded : 4″～72″ DN150～DN1800
    • Wall Thinkness : sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s

•Standards
ASME B16.9-2007
ASME B16.25-2007
ASME B16.5-2007
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2605-1-1992 DIN2605-2-1995
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009

  • Materials
    • Carbon steel: ASTM/ASME A234 WPB,WPC
    • Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
    • Stanless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N;ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti;ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
    • Low-temperature steel:ASTM/ASME A402 WPL 3-WPL 6
    • High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Pattern Weld Seamless
Nominal size

1/2”-48”

(DN15-DN1200)

1/2”-20”

(DN15-DN500)
Wall thickness 2~100mm 2~50mm
Bend radius SCH5S-SCH160 ,XXS SCH5-SCH160

Nominal Pipe Size(mm) Outside diameter
at bevel(mm)		 Center-to-End
Run (C) Outlet(M)
1/2" 21.3 25 25
3/4" 26.7 29 29
1" 33.4 38 38
1 1/4" 42.2 48 48
1 1/2" 48.3 57 57
2" 60.3 64 64
2 1/2" 73.0 76 76
3" 88.9 86 86
3 1/2" 101.6 95 95
4" 114.3 105 105
5" 141.3 124 124
6" 168.3 143 143
8" 219.1 178 178
10" 273.0 216 216
12" 323.8 254 254
14" 355.6 279 279
16" 406.4 305 305
18" 457.0 343 343
20" 508.0 381 381
22" 559.0 419 419
24" 610.0 432 432

CS SS 14'' 16'' 18'' Butt Welded Pipe Fitting Tee Seamless Black Rust Proof Oil

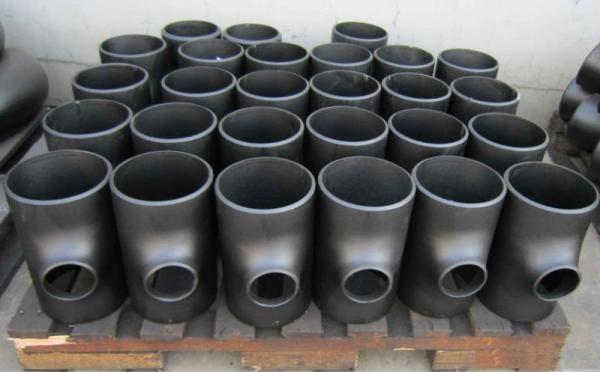

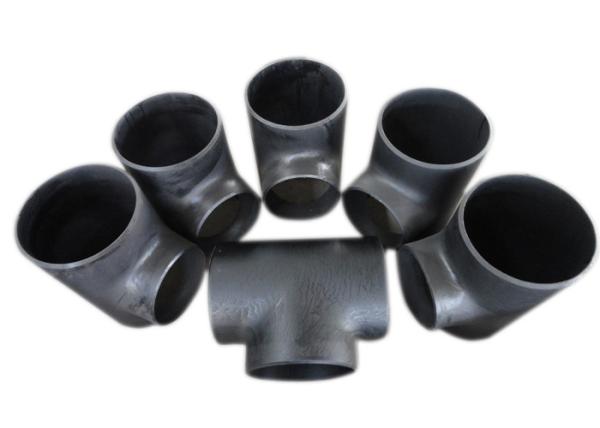

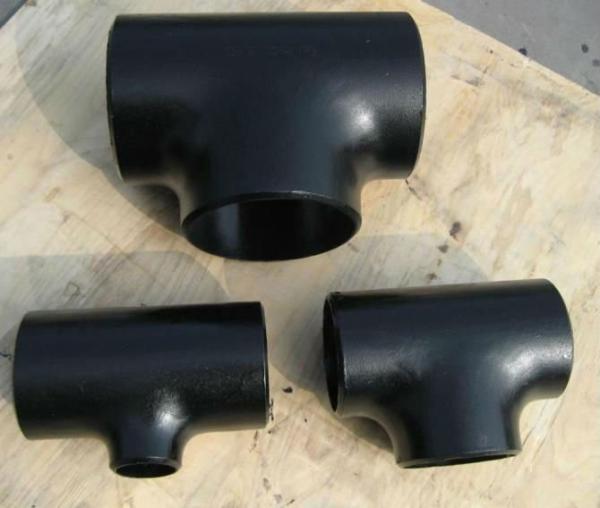

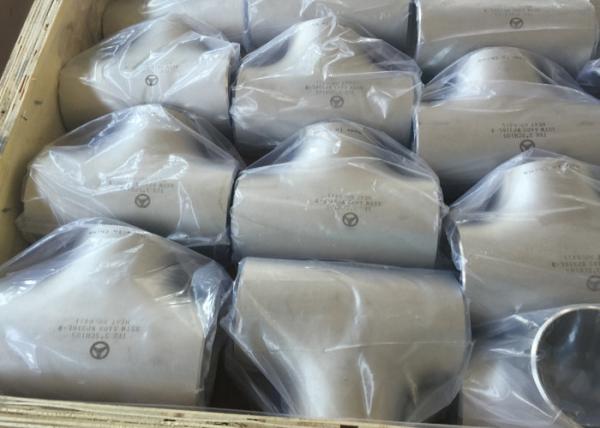

Products showing of our company:

CS SS 14'' 16'' 18'' Butt Welded Pipe Fitting Tee Seamless Black Rust Proof Oil

CS SS 14'' 16'' 18'' Butt Welded Pipe Fitting Tee Seamless Black Rust Proof Oil
