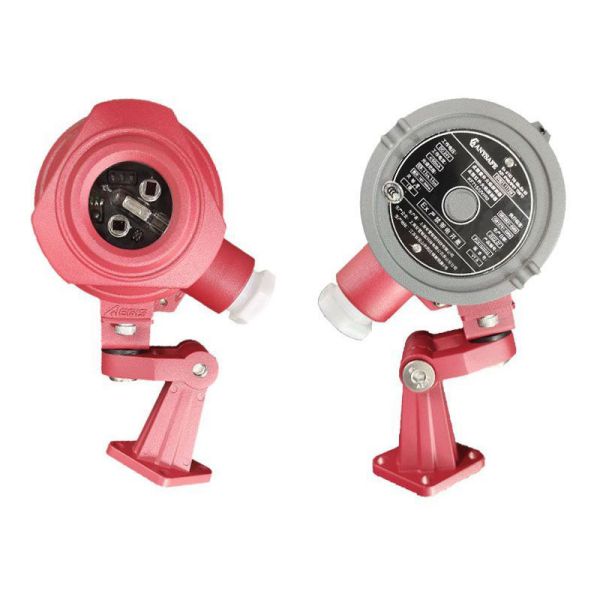

Explosion Proof Fire High-Performance Fire Alarm Flame Detector With Infrared Ultraviolet Sensors
Explosion Proof Fire High-Performance Fire Alarm Flame Detector With Infrared Ultraviolet Sensors
Explosion Proof Fire High-Performance Fire Alarm Flame Detector With Infrared Ultraviolet Sensors
Explosion Proof Fire High-Performance Fire Alarm Flame Detector With Infrared Ultraviolet Sensors
Specifications
Brand Name :
XHA
Model Number :
KF715UVIR2
Certification :
CCC
Place of Origin :
China
MOQ :
1PCS
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs/month
Delivery Time :
3 Working days
Packaging Details :
8pcs/Carton
Level of protection :
IP66
Detection Method :
Infrared (IR) and Ultraviolet (UV) sensors
Power Supply :
24V DC
Alarm Output :
Relay output
Types of Detectors :
Explosion-Proof Flame Detector
Fire response time :
≤10S
Response Time :
Less than 10 seconds
Sensitivity :
Level 1(25m)
Installation :
Wall mounted
Application :
Fire Detection
Description

High-Performance Fire Alarm Flame Detector With Infrared Ultraviolet Sensors

Explosion Proof Fire High-Performance Fire Alarm Flame Detector With Infrared Ultraviolet Sensors

Introduction


This is a specialized flame detector that combines both infrared (IR) and ultraviolet (UV) sensing technologies to provide reliable and fast detection of flames in hazardous, explosive environments. By utilizing dual-spectrum detection, it offers enhanced accuracy and false alarm immunity compared to single-spectrum detectors.

Applications:

Petrochemical refineries and processing plants
Oil and gas facilities, including offshore platforms
Fuel storage and distribution centers
Munitions and explosives manufacturing sites
Chemical processing and storage warehouses
Other industrial locations with a high risk of fire and explosions



Specifications

Working voltage 24VDC
Interface 1xNPT 3/4
UV Flame Detector Detection Angle 120 degree
Infrared Flame Detector Detection Angle 90 degree
Level of protection IP66
Explosion Proof Level Ex d lIC T6 Gb. Ex tD A21 IP66/IP67 T80℃
Alarm Status ≤50mA/24VDC
Fire response time ≤10S
Detection range Level I 25meters(33cm*33cm Ethanol fire)
Working environment humidity ≤95%RH, no condensation

Terminal discription

Explosion Proof Fire High-Performance Fire Alarm Flame Detector With Infrared Ultraviolet Sensors

Explosion Proof Fire High-Performance Fire Alarm Flame Detector With Infrared Ultraviolet Sensors



Product range

Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector


Service

1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 10 working days lead time.
5. Welcome sample order.
