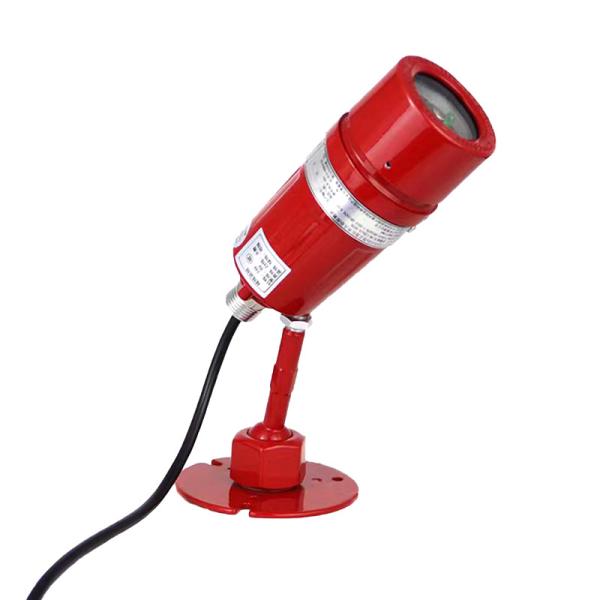

Industrial Fire Alarm Ultroviolet UV Flame Detector With IP66/IP65 Protection For Fire Safety Alarm System

Introduction

xplosion-proof UV flame detectors are specialized sensors designed to detect the presence of flames in hazardous, potentially explosive environments. These detectors rely on the unique ultraviolet (UV) light signature emitted by combustion to identify the presence of a fire.

Explosion-proof UV flame detectors are widely used in industries with potentially explosive environments, such as oil and gas refineries, chemical plants, and fuel storage facilities. By providing early and accurate fire detection, these specialized sensors play a crucial role in safeguarding personnel, equipment, and operations in hazardous areas

Specifications

Instruction

The green work indicator is steady on at the normal situation.
when the fire is found, The red alarm indicator is steady on. At the same time, the fire alarm relay is closed and the yellow/white lines are conductive, output the fire alarm signal.
The detector is a non-coding detector, which needs to connect the interface module when it is connected to the bus system.

Wiring Instruction

Red/black: 24V power line
Yellow/white:Alarm relay ouput, it is closed, normally open.
Blue/green:Fault relay output, it’s open, normally closed.
Maintenance:
In order to keep in good work situation, it need arrange test to the flame detector every 3 months at least. Once the detector is damaged or not working properly, need to repaire or replace accordingly.

Product range

Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector


Service

1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 10 working days lead time.
5. Welcome sample order.
