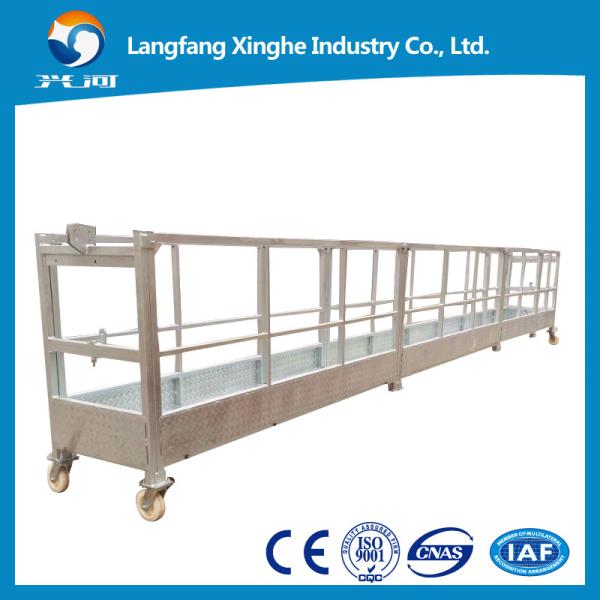

work suspender / suspended working platform / hoist lifter zlp630 for window cleaning

Specifications

Place of Origin :

China

Brand Name :

Xinghe

Certification :

ISO CE

Model Number :

zlp 630

Platform size :

3*2000*690*1180mm

Material of platform :

Hot galvanized

Rated Loading Capacity :

630kg

lifting height :

100m

Working speed :

9~11m/min

Hoist :

LTD63

Voltage :

220V/380V/415V 50/60HZ 3 phase

Motor power :

2*1.5 Kw

Safety lock :

Tilt proof safety lock ( 2pcs

Wire rope :

4*31SW-FC-8.3

Certificate :

CE ISO

Warranty :

The whole machinery is for one year, some main components are 6 years

MOQ :

1 set

Price :

FOB Tianjin 1700~2050USD/SET

Packaging Details :

Standard exporting package by plywood case,then steel pallet for container.

Delivery Time :

7~10 days after receiving the deposit

Payment Terms :

t/t l/c western union

Supply Ability :

400sets/month

Description

work suspender / suspended working platform / hoist lifter zlp630 for window cleaning

Name: work suspender suspended working platform hoist lifter zlp630 for window cleaning
Brand: Xinghe
Price: 1 USD

As a market leader and key player in suspended platform&cradle sector, since its establishment, we focus on facade solutions, high rise building cleaning&maintenance. Our team has long lasting experience and knowledge in design and production of suspended platform and related components. With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share.

ZLP Suspended platform / Cradle / Gondola

Specification :

1.Type: zlp 630 & zlp800 & zlp 1000

2.Surface finished: Hot galvanized & aluminum alloy

3.Lifting height: 100m , 300m maximum

4.HS Code: 84289090

5.Certificate: ISO9001 & CE

6.Warranty : The whole machinery is for one years, some main components are 6 years

7.We can also customize for you

Technical parameters:

Model	zlp630	zlp800	zlp1000
Material of platform	Steel & Aluminum alloy
Rate loading capacity	630kg	800kg	1000kg
Length of platform	6m	7.5m	7.5
Safety lock	LS30
Hoist Model	LTD63	LTD80	LTD80(S dirve )
Loading quantity (20 gp)	9	8	7
Counter weight	25kg*40	25kg*40	25kg*40
Diameter of wire rope	8.3mm	8.6mm	8.6mm
Voltage	220v/380v/415v 50/60hz 3 phase or single phase

Parts List of Complete Suspended Platform / Cradle / Gondola

NO.	Parts Name	Quantity	Description
1	Working platform	3	The length of work platform include 1m,2m,3m,1.5m,2.5m The work platform can be made in any combination based on customer's requirement .
2	Hoist	2	LTD 63 & LTD80 Surface finished : hot galvanized
3	Safety lock	2	LS30
4	Suspension machanism	2	Surface finished : hot galvanized
5	Control panel	1	Along with hoist
6	Limit position switch	2
7	Limit position plate	2
8	Wire rope	100m*4	4*31SW- FC- 8.3 &8.6&9.1
9	Electric cable	1 bundle	32.5+21.5YC-5
