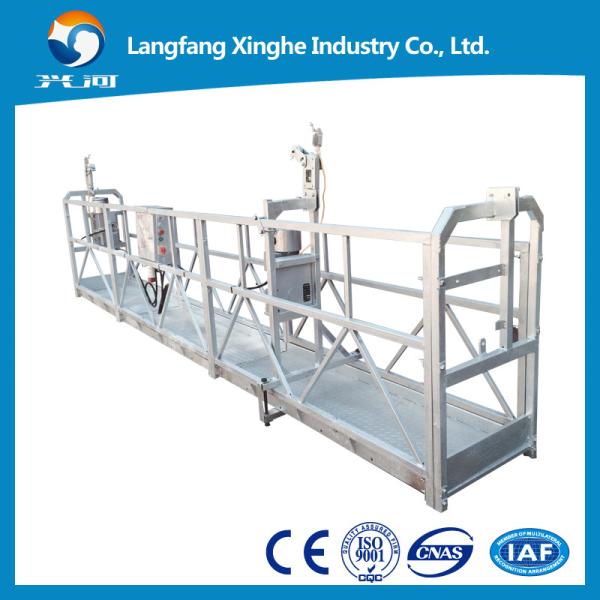

630kg aluminum mobile scaffolding / suspended platform adjustable / gondola platform
630kg aluminum mobile scaffolding / suspended platform adjustable / gondola platform
Specifications
Place of Origin :
China
Brand Name :
Xinghe
Certification :
ISO CE
Model Number :
zlp630
Size :
3*2000mm*690mm *1180mm
Work platform finished :
hot galvanizing, aluminum alloy
Rated Loading :
630kg
Lifting height :
100m
Hoist :
ltd63
Voltage :
380v,415v,220v 50/60 Hz
Power :
2*1.5lw
Safety lock :
Tilt proofing LS30
Wire rope diameter :
4*31SW+FC-8.3mm
Warranty :
The whole machinery for one year.Some components are 6 years
MOQ :
1 set
Price :
FOB Tianjin 1700~2500 USD/SET
Packaging Details :
Standard exporting package by plywood case,then steel pallet for container.
Delivery Time :
15days after receiving the deposit
Payment Terms :
t/t l/c western union
Supply Ability :
400sets/month
Description

630kg aluminum mobile scaffolding / suspended platform adjustable / gondola platform

ZLP Series Suspended platform / Cradle / Gondola mainly include two types: zlp630 & zlp800

Suspended platform are designed and constructed in modular form so it can be mounted in any size from 2-8 meters.

The welding of the support structure of the platform is made of quality steel profiles

The connection of the individual parts of the structure in each unit is made with nuts and bolts.

The powered suspended platform is equipped with wheels for easy movement around the construction site

Along with standard powered suspended platform we also manufacture specialpowered suspended platform with 90°, 45° and Circular shapes.

We can also manufacture suspended platform as per client’s specific requirements.

Specifications

1.ZLP630 and ZLP800
2.Type:Hot Galvanized,Aluminum
3.Lifting Height:100m maximum
4.With 9 years' experience.

Product Description

Item zlp630 suspended platform zlp800 suspended platform
Rated Loading 630kg 800kg
Lifting Speed

~9.5m/min

~8.5m/min

Platform size(L*W*H)

(3*2000mm)*690mm*1180mm

 (3*2500mm)*690mm*1180mm

The length of work platform include 1m,2m,3m,1.5m,2.5m . The work platform can be made in any combination based on customer's requirement .

Suspension Mechanism

Rated exerted length of front beam

1.1m~1.5m

Terrain clearance of front beam

1.45m~1.75m
Type

LTD63

LTD80
Motor type

Customization

Customization
Power

2*1.5Kw

2*2.0Kw

Voltage

 380v/415v/220v(50hz) 380v/415v/220v(60hz)

Speed

1400n/min

1400n/min

Braking torque

15N.M

15N.M

Safety Lock
type

LS30

Angle of tilted locking rope

3°~8°

Allowable impact force

30KN
Product tags

mobile scaffolding maximum height

,

mobile tower scaffold maximum height

,

lightweight scaffolding tower
Send your message to this supplier
Send Now

630kg aluminum mobile scaffolding / suspended platform adjustable / gondola platform

Ask Latest Price
Product Detail
Place of Origin :
China
Brand Name :
Xinghe
Certification :
ISO CE
Model Number :
zlp630
Size :
3*2000mm*690mm *1180mm
Work platform finished :
hot galvanizing, aluminum alloy
Contact Supplier
630kg aluminum mobile scaffolding / suspended platform adjustable / gondola platform

LANGFANG WISDOM IMPORT&EXPORT CO., LTD.

Active Member
9 Years
hebei, langfang
Since 1988
Business Type :
Manufacturer, Exporter, Trading Company
Main Products :
suspended platform, gondola, suspended scaffolding
Employee Number :
50~100
Certification Level :
Active Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products suspended scaffolding
MachineU China Products Construction & Real Estate Ladders & Scaffoldings Work Platforms
Contact Supplier
Submit Requirement

China Hot Products: A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z | 0~9

Copyright © 2009-2025 Machineu.com. All rights reserved.

Copyright © 2009-2025 Machineu.com. All rights reserved.

Quality

Suspension platform

300kg

370kg

Hoist

52kg*2

56kg*2

Safety lock

5.5kg*2

5.5kg*2

Suspension mechanism

320kg

(not including counter weight)

320kg

(not including counter weight)

Electricity box

18kg

18kg
