Suspended platform or working platform is used for exterior work during Construction and maintenance work post construction of High rise building. It is fast and cost effective replacement of conventional scaffolding. Simple and easy to install. It can be customized as per client / building requirement

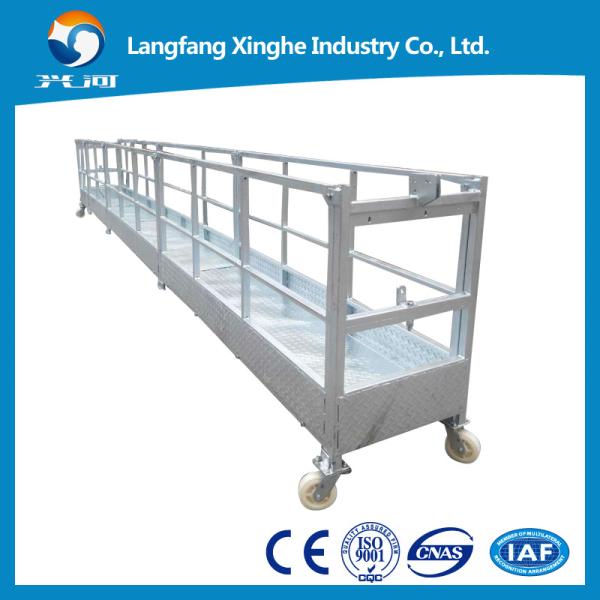

Brief Introduction of Suspended Platform

1. Working platform, suspension mechanism

With hot galvanized steel,the suspension mechanism uses 80*80,70*70 square tube, thickness is 3.75mm, front and rear girder is 2.35mm thickness, middle girder is 2.48mm, thickness of working platform is 2.2mm.

2. Hoist

With famous brand of motor, large braking torque, unique anti-rope clamping device, when the rope is clamped,the alarming rings,the motor stops working, so that factor of safety is increased meantime, maintenance cost of hoist is reduced. Lubrication oil is 220# industry gear oil.

3. Safety lock

The lock cylinder uses special stainless steel, with strong impact resistance, higher toughness, wear resistant, long services life,safe and reliable.

4. Electric system

The electric components uses CHNT,SCHNEIDER brand, reliable quality,easy to maintain.

5. Counter weight

The shell of counter weight uses 1.5mm steel plate, the using life can be more than 5 years.

6. Wire rope

4*31sw high quality wire rope

Advantage:

1. All of the components are produced by ourselves workers, the quality and the delivery time can be ensured.

2. As a factory, the cost of the goods can be controlled very well, you can get a more competitive price.

3. We can supply the on-line technical guidance, if your order quantity reaches our requirement, we can arrange our technical team to your country to setting equipment.
