24D Super Fine Copper Wire Drawing Machine For Enameling Wire Long Service life
24D Super Fine Copper Wire Drawing Machine For Enameling Wire Long Service life
Specifications
Brand Name :
JD
Model Number :
24DT
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1Set
Price :
USD 5000-12000/Set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30Sets/Month
Delivery Time :
40-50days after receiving your advanced payment
Packaging Details :
Stabilize the machine with crosstie to resistant skidding, apply bubble wrap to resistant collision and adopt plastic package to resistant water
Inlet wire :
0.6-1.2mm
Outlet wire :
0.10-0.32mm
Usage :
Drawing
Inverter control :
Double inverter control
Frame :
Welded by steel plate
Protection type :
Steam or nitrogen
Capstan :
Ceramic plasma capstan
Spooler control :
PID Synchronous spooler
Warranty :
One year
After-sales service :
Engineers available to service overseas
Description

24D Super Fine Copper Wire Drawing Machine For enameling wire Long Service Life

1.Main usage:

It is used for drawing and annealing copper wire from 0.6-1.2mm to φ0.10-0.32mm(φ0.12-φ0.45mm)

2. Company image:

24D Super Fine Copper Wire Drawing Machine For Enameling Wire Long Service life

3.Technical parameter:

JD-24DT wire drawing and annealing machine

Machine type JD-24DT
Control system Traditional analog type
Inverter control Dual Inverter control
Drawing dies No./Max. 24
Inlet diameter Φ0.60-1.20mm
Outlet diameter φ0.10-0.32mm(φ0.12-φ0.45mm)
Drawing line speed 1800m/min
Slip ratio of m/c 15%
Fix speed capstan slip ratio 8%
Frame Welded by steel plate
Capstan Ceramic plasma capstan
Main motor 11(15)KW
Spooler motor 4KW
Capstan dia.(Max.) Φ194mm
Fix speed capstan dia. Φ159mm
Dia. of annealing Φ160mm
Annealing voltage DC 0-60V
Annealing Current DC 250A
Protection type Steam or nitrogen
Spool bobbin size φ300or according to customers requirements
Send-out method Shaft type
Traversing unit synchronous motor +Belt
Transmission type By flat belts
Spooler control P PID synchronous spooler
Detecting device Weight balance by swing arm
Tension control Weight balance type
Max. loading capacity 50KG
Lubrication type Spray type
Brake Magnetic brake
Power source 380V 50/60HZ

4.Finished product:

24D Super Fine Copper Wire Drawing Machine For Enameling Wire Long Service life

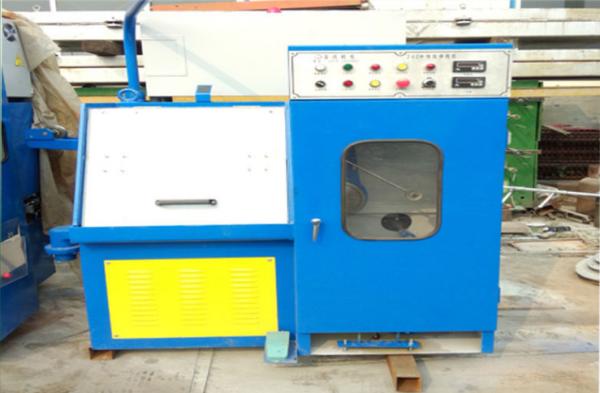

5.Product Picture:

24D Super Fine Copper Wire Drawing Machine For Enameling Wire Long Service life

24D Super Fine Copper Wire Drawing Machine For Enameling Wire Long Service life

24D Super Fine Copper Wire Drawing Machine For Enameling Wire Long Service life

24D Super Fine Copper Wire Drawing Machine For Enameling Wire Long Service life

6.Certificates:

24D Super Fine Copper Wire Drawing Machine For Enameling Wire Long Service life

7.Oversea's market and exhibition:

24D Super Fine Copper Wire Drawing Machine For Enameling Wire Long Service life

8.Advantages:

1).XINDACHANG(JINDA) has some world famous parts suppliers. Have high price performance ratio.

2).special lubrication system for the gears and bearing.

3).second section annealing system, outside electrically neutral (no current flow to other unit)

4).body and other key components and parts are produced by our own factory, quality is reliable.

5) Our company’s developing process in more than 10 years.

9. After-sale service:

Pre-sale training:

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:

(1) Correct operating mode

(2) Correct maintenance way

(3) Removable simple problem our company for our machine product,

Since the shipment date, our company free after sale maintenance service guarantee period is:

A: 1 year for mechanical part,

B: 6 month for electrical part.

Main Product:

Cable making equipment

v Wire drawing machine

v Rod breakdown machine

v Annealing machine

v Copper, Aluminum, Aluminum Alloy, Brass, Wire drawing machine

v Wire and cable production line

v Nail Making Machine
