High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost
High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost
Specifications
Brand Name :
JD
Model Number :
JD-1000-I
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
USD 10000-20000/Set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30 Sets/Month
Delivery Time :
In 40-50 days after received your advanced payment
Packaging Details :
Export packing the end of the sleepers fixed machinery to do non-slip, with bubble wrap anti-collision, external plastic packaging waterproof moisture
Materials :
Copper Rod
Inlet wire Dia :
8mm
Outlet wire Dia :
1.2mm-3.0mm
Drawing number :
13
Max drawing speed :
8m/s
Warranty :
One year
Factory history :
Specialized in this field for over 16 years
Our aim :
Make clients the least invest,the highest returns
Usage :
Produce wire cable
After-sales Service :
Engineers available to service machinery overseas
Description

High-end Produce With Good Quality JD- 400 Copper Wire Drawing Machine

Cone Type Saving Cost

1.Usage

The machine is used for drawing copper wire/rod from 8mm to 1.2-3.0mm

2.Main features of our product:

1. Manufacturer(developing history more than 16 years)

2. ISO approving,ISO9001-2008

3. Best after sale service(one year warranty,longtime maintenance,supply all the spare parts)

4. Advanced technique

5. We can design the machine that meet your requirements

Product Information

Technical Parameters

Item description Specification
Material Low-oxygen or no-oxygen copper rod
Max. Diameter of the Inlet 8.0 mm
Diameter of the outlet wire 1.20-3.0 mm
Max. Mechanical Speed 8m/s
Drawing die number 13
Cone type 4 driving wheels
Mechanical Elongation 28%-34%
Drawing drum diameter 400mm
Capstan diameter 400mm
Main motor power for drawing AC 90kw
Motor power for capstan AC 55kw
Annealing Type Tubular Type Annealing
Annealing Voltage 0-55DC
Annealing Current 0-1800DC
Take up motor power 11KWX2

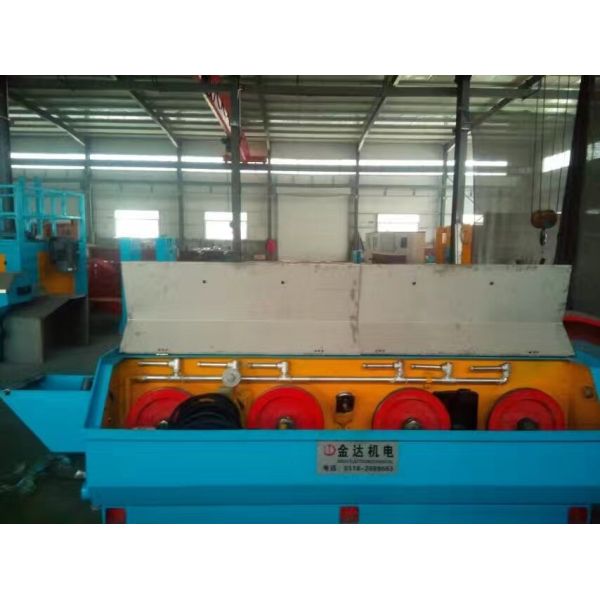

Product Pictures

High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost

High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost

High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost

3.Packaging & Shipping

High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost

4.Product Process

High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost

5.Our Factory

Long history

We have 16 years manufacturer history, companying with good reputation, since our factory set up in 2003.

Supply ability:

We specialize in design machines according customers' requirements. 300 sets of machines can be supplied/month.

Equipment working site:

You are welcomed to visit our factory, the machines can be operated on site, and you will master the usage of machines nearby.

Successful experience / Markets:

Be up to the international level. Our lines and related complete equipment have been exported to India, Indonesia, Morocco, South Africa, Algeria,Mexcio,bangladesh ,Russia,Uzbekistan etc.

High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost

6.Engineers for machine’s installation and debugging in Uzbekistan

High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost

7.The Exhibition

High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost

High-end produce with good quality JD-400 Copper Wire Drawing Machine Cone Type Saving Cost

8.Advantages:

1).XINDACHANG(JINDA) has some world famous parts suppliers. Have high price performance ratio.

2).special lubrication system for the gears and bearing.

3).second section annealing system, outside electrically neutral (no current flow to other unit)

4).body and other key components and parts are produced by our own factory, quality is reliable.

5) Our company’s developing process in more than 10 years.

9. After-sale service:

Pre-sale training:

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:

(1) Correct operating mode

(2) Correct maintenance way

(3) Removable simple problem our company for our machine product,

Since the shipment date, our company free after sale maintenance service guarantee period is:

A: 1 year for mechanical part,

B: 6 month for electrical part.

Main Product:

Cable making equipment

v Wire drawing machine (multiple wire)

v Rod breakdown machine

v Tin-coating machine Rigid frame stranding machine

v Annealing machine

v Copper, Aluminum, Aluminum Alloy, Brass, Wire drawing machine

v Wire and cable production line
