Specifications
Place of Origin :
CHINA
Brand Name :
Xindun
Brand :
HP
Model :
PRO
Type :
Standalone Solar Inverter
Power Range :
1000W-8000W
Input Voltage :
24/48VDC
Output Voltage :
220/230/240VAC±2%
Solar Charging :
MPPT
Max PV Open Circuit Voltage :
500VDC
Features :
High frequency pure sine wave,Off-grid inverter,Power to load without battery,Combining solar, AC utility, generator, and battery,Inverter output power factor 1,RS485/WIFI/GPRS monitoring function (optional),Built-in dust-proof kit for harsh environment
Description

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

best chinese solar inverter brands


About HP PRO Standalone Solar Inverter

Xindun HP PRO is a multifunctional inverter and charger, which combines the functions of dc to inverter, MPPT solar charger, battery charger, AC charger, generator charger to provide portable UPS power supply. The standalone solar inverter can operate without batteries. The maximum open-circuit voltage of the photovoltaic array can reach 500V, and the MPPT voltage is 120~450VDC, which can help customers make full use of solar energy.

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

chinese standalone solar inverter brands

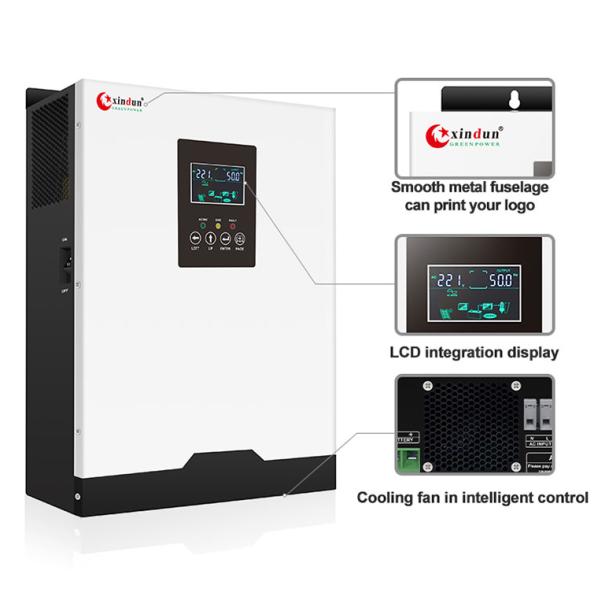

Standalone Solar Inverter Exterior and Interior

White clean appearance and neat internal structure, wall-mounted standalone solar inverter meet the aesthetic requirements of the majority people around the world. Xindun can also provide free appearance design and trademark printing services for different customers. If you have customized requirements for standalone inverter, please contact me.

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

chinese standalone solar inverter brands


Standalone Solar Inverter Technical Parameter

Inverter special voltage and power can be customized according to your needs

Standalone Inverter Parameter
Model: HP pro 32224 50248
Rated Power 3200W 5000W
Peak Power(20ms) 9600VA 15KVA
Battery Voltage 24VDC 48VDC
Product Size(L*W*Hmm) 420x290x110 460x304x110
Package Size(L*W*Hmm) 486x370x198 526x384x198
N.W(Kg) 8.5 10
G.W(Kg) 9.5 11
Installation Method Wall-Mounted
PV Charging Mode MPPT
Rated PV input voltage 360VDC
MPPT tracking voltage range 120V-450V
Max PV Input Voltage Voc
(At the lowest temperature)
500V
PV Array Maximum Power 4000W 6000W
MPPT tracking channels (input channels) 1
Input DC Input Voltage Range 21VDC-30VDC 42VDC-60VDC
Rated AC input voltage 220VAC / 230VAC / 240VAC
AC Input Voltage Range 170VAC~280VAC (UPS mode)/ 120VAC~280VAC(INV mode)
AC Input Frequency Range 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
Output Output efficiency(Battery/PV Mode) 94%(Peak value)
Output Voltage(Battery/PV Mode) 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery/PV Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery/PV Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Follow input
Output Frequency(AC Mode) Follow input
Output waveform distortion
Battery/PV Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤1% rated power
No load loss(AC Mode) ≤0.5% rated power(charger does not work in AC mode)
Battery Battery
Type
VRLA Battery Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage)
Customize battery Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
Max AC Charging Current 60A 60A
Max PV Charging Current 100A 100A
Maximum charging current (mains + PV) 100A 100A
Charging method Three-stage (constant current, constant voltage, floating charge)
Protection Battery low voltage alarm Battery undervoltage protection value+0.5V(Single battery voltage)
Battery low voltage protection Factory default: 10.5V(Single battery voltage)
Battery over voltage alarm Constant charge voltage+0.8V(Single battery voltage)
Battery over voltage protection Factory default: 17V(Single battery voltage)
Battery over voltage recovery voltage Battery overvoltage protection value-1V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Working Mode Mains priority/Solar priority/Battery priority(Can be set)
Transfer Time ≤10ms
Display LCD+LED
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% (No condensation)
Note: All specifications are subject to charge without prior notice.

chinese standalone solar inverter brands


How to Use Standalone Solar Inverter

How to use standalone solar inverter? We have clear marks on each connection port, plus detailed user manual. For smart you, the use of this inverter is quite simple. If you want to know how the standalone solar power system matches the solar panels, battery pack and inverter, you can consult Xindun separately.

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W


chinese standalone solar inverter brands

Shipment Safety Inverter Packaging

A good-quality inverter requires a strong and safe inverter package. We will take cartons or wooden boxes and reinforce them layer by layer to ensure that the standalone solar inverter is safely delivered to the customer.

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W


chinese standalone solar inverter brands

About the Best Standalone Solar Inverter Brands

"Xindun" brand is famous around the world. Our main products: standalone inverter, solar inverter, power inverter, 3 phase inverter, energy storage inverter, solar charge controller, standalone solar power system, ups power supply. Company and products have successfully passed ISO, CE, TUV and other certifications. Xindun has 12 online shopping malls and 6 offline warehouses and maintenance sites in Africa, Middle East and Asia. We are one of the best solar inverter brands in Chinese.

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

XINDUN FACTORY

Xindun Power founded in 2006, it is a production-oriented company, has a factory with 10,000 square meters in China, 8 production lines, 100+ workers. We accept OEM/ODM standalone inverter. Please view our production live.

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

HP PRO Chinese Standalone Solar Inverter MPPT 1000W-8000W

chinese standalone solar inverter brands


Some Inverter Questions You Want to Know

Q1: What's the meaning of standalone solar inverter?

There are two types of inverters on the market: grid-connected inverter and off-grid inverter. The grid-connected inverter needs to be used together with the mains power. If the mains power is off, the grid-connected inverter cannot work. The off-grid inverter does not rely on the power grid. The DC power generated by solar energy is converted into AC power through the off-grid inverter, which is suitable for remote mountain blackout areas. Standalone solar inverter = Off-grid solar inverter.

Q2: How to select the best solar inverter brands?

Look at brand popularity, brand establishment time, brand scale and market user evaluation. Xindun Power is one of the best solar inverter brands.

Q3: What are the chinese solar inverter brands?

"China-made" is famous. There are many grid-connected solar inverter brands and standalone solar inverter brands in China. But if you are a brand, wholesaler or retailer, I suggest you choose solar inverter manufacturer as your long-term supplier, with more guaranteed quality and price.
